Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Support the exhaust system.
  3. Remove the 3-way catalytic converter pipe hangers.
  4. Inspect the 3-way catalytic converter brackets for serviceability. Repair or replace as necessary.

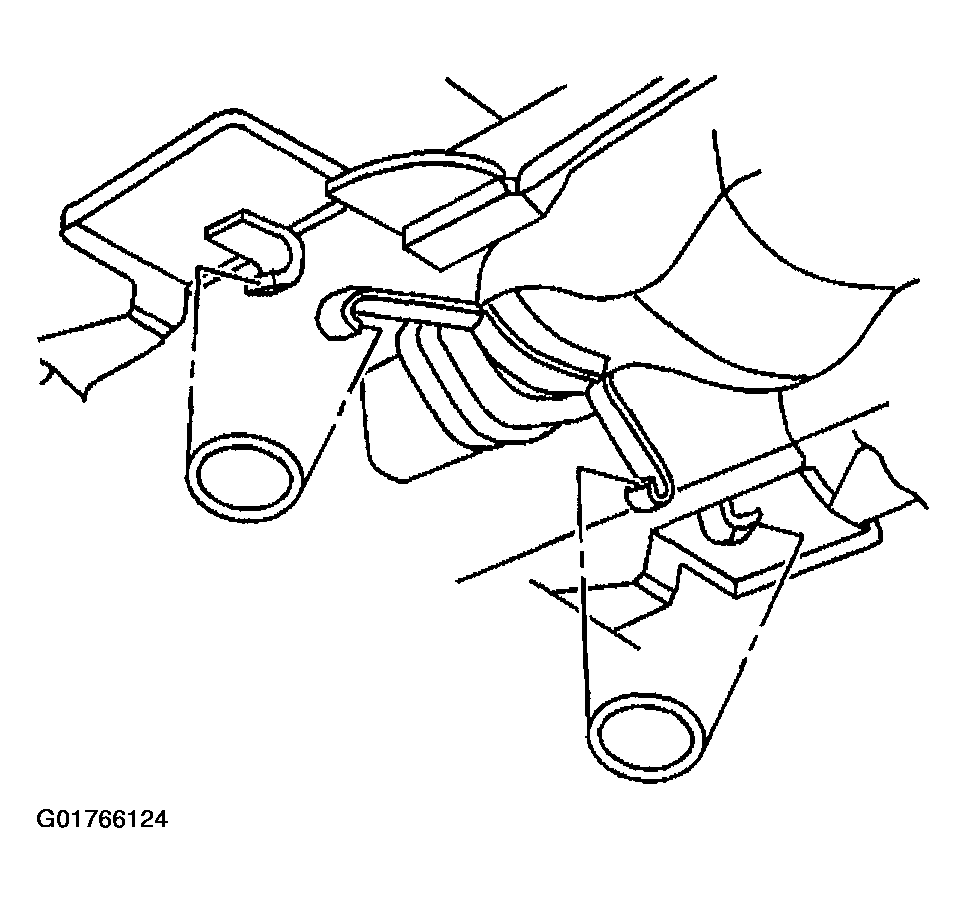

    Fig 1: 3-Way Catalytic Converter Pipe Hangers
    G01766124Courtesy of GENERAL MOTORS CORP.
