Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seal on the drain cock plug stem.
  2. Install the drain cock plug. Make sure that the body is fully seated in the side tank and that the locking tabs are engaged.
  3. Fill the cooling system. Refer to Draining and Filling Cooling System

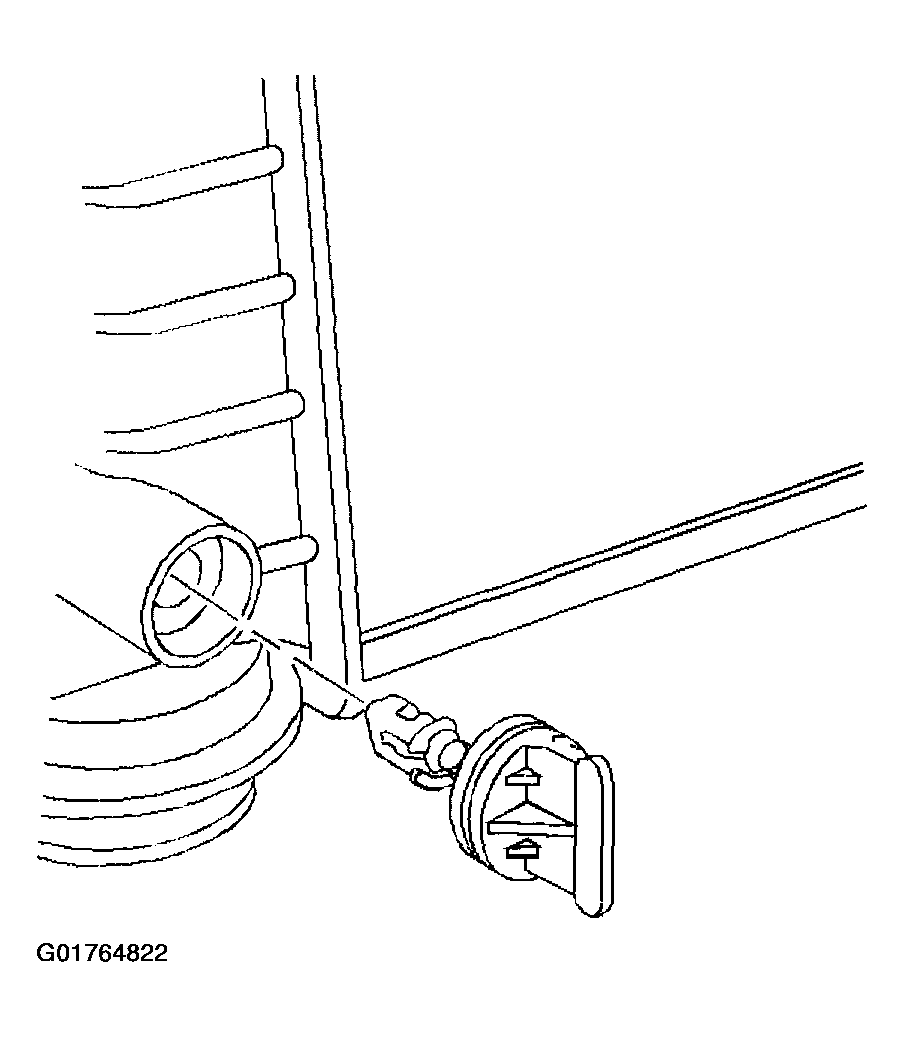

    Fig 1: Drain Cock And The Drain Cock Plug
    G01764822Courtesy of GENERAL MOTORS CORP.
