Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the left and right side stabilizer shaft insulators (1) to the stabilizer shaft (2).
    Fig 1: Stabilizer Shaft Insulators
    G01720520Courtesy of GENERAL MOTORS CORP.
  2. Install the left and right side stabilizer shaft insulator brackets.
  3. Install the left and right side stabilizer shaft insulator bracket bolts.

    Tighten:

    Tighten the stabilizer shaft insulator bracket bolts to 48 N.m (35 lb in)

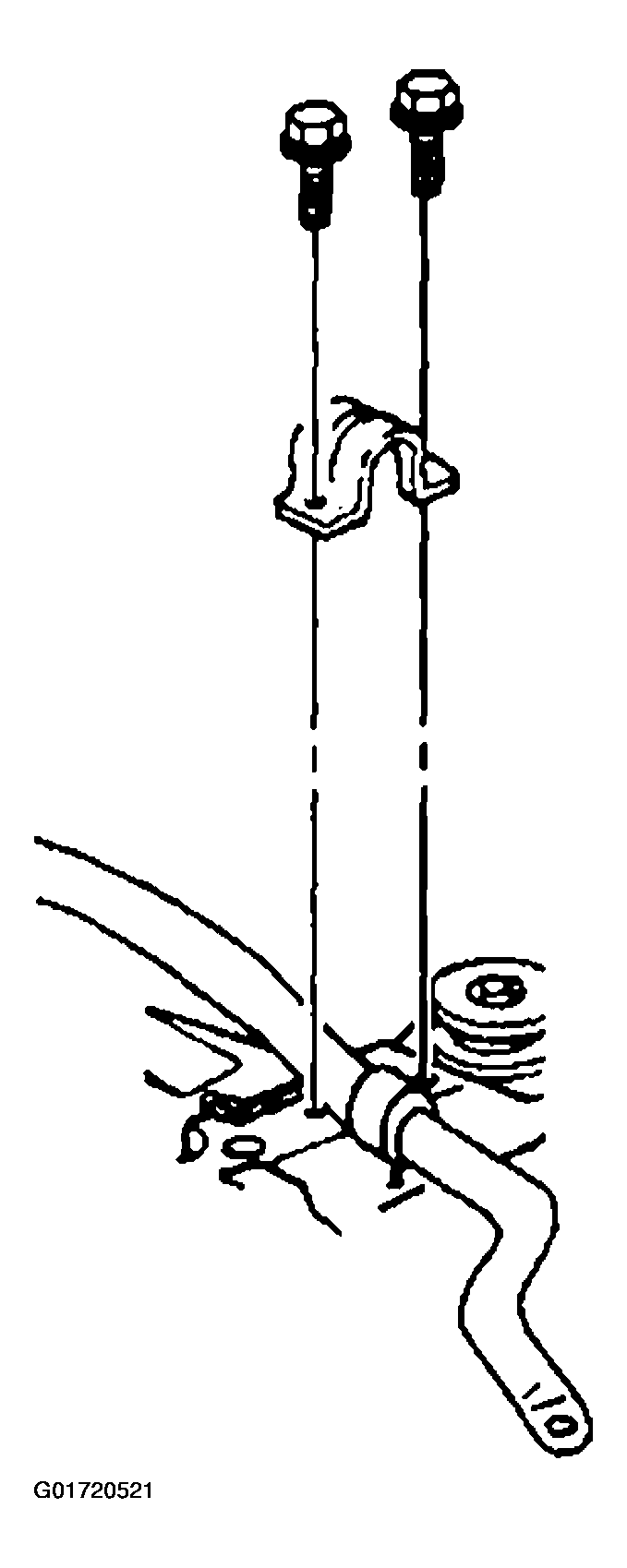

    Fig 2: Stabilizer Shaft Insulator Bracket Bolts
    G01720521Courtesy of GENERAL MOTORS CORP.
  4. Lower the vehicle.
