Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the ball stud to the lower control arm.
  2. Install the NEW ball stud bolts facing down, away from the ball stud.
    NOTE: This is a prevailing torque type fastener. This fastener may be reused ONLY if:
    • The fastener and its counterpart are clean and free from rust.
    • The fastener develops 2 N.m (18 lb in) of torque (drag) against its counterpart prior to the fastener seating.

    If the fastener does not meet these criteria, REPLACE the fastener.

  3. Install the NEW ball stud nuts.

    Tighten:

    Tighten the NEW ball stud nuts to 68 N.m (50 lb ft)

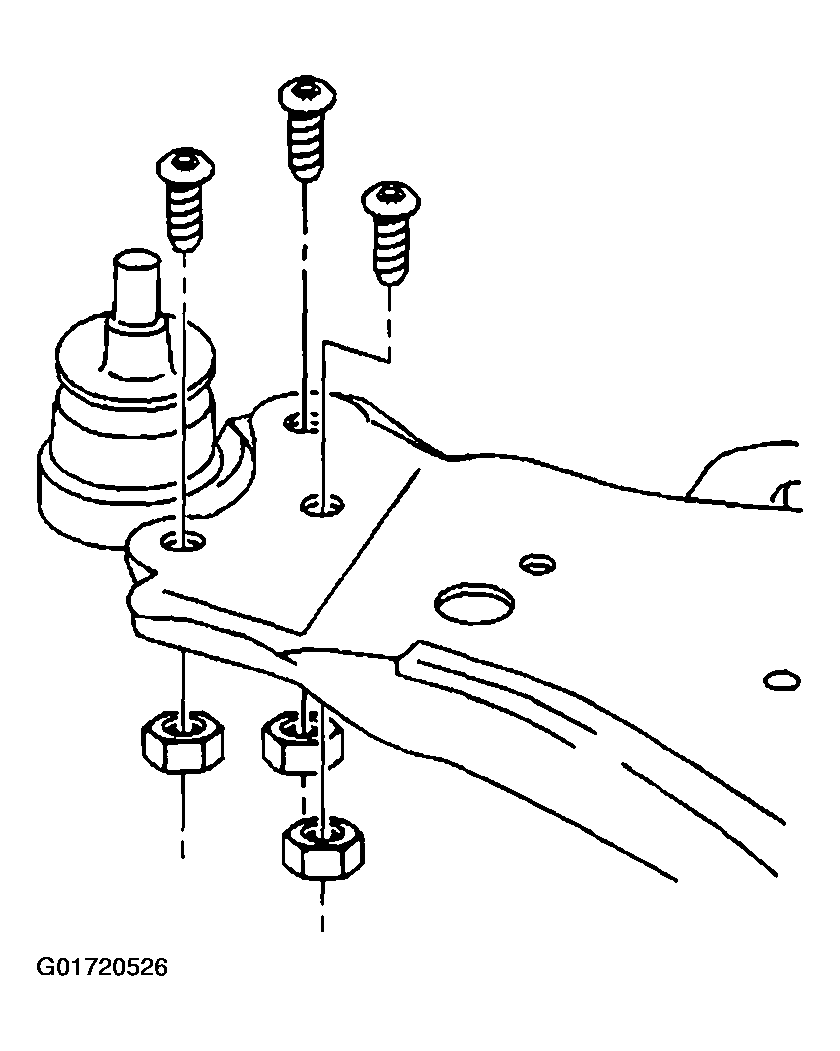

    Fig 1: Ball Stud Nuts
    G01720526Courtesy of GENERAL MOTORS CORP.
  4. Install the lower control arm. Refer to Lower Control Arm Replacement .
