Strut Disassemble/Assemble Repair: Assembly

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the coil spring and upper strut mount to the J-45400.

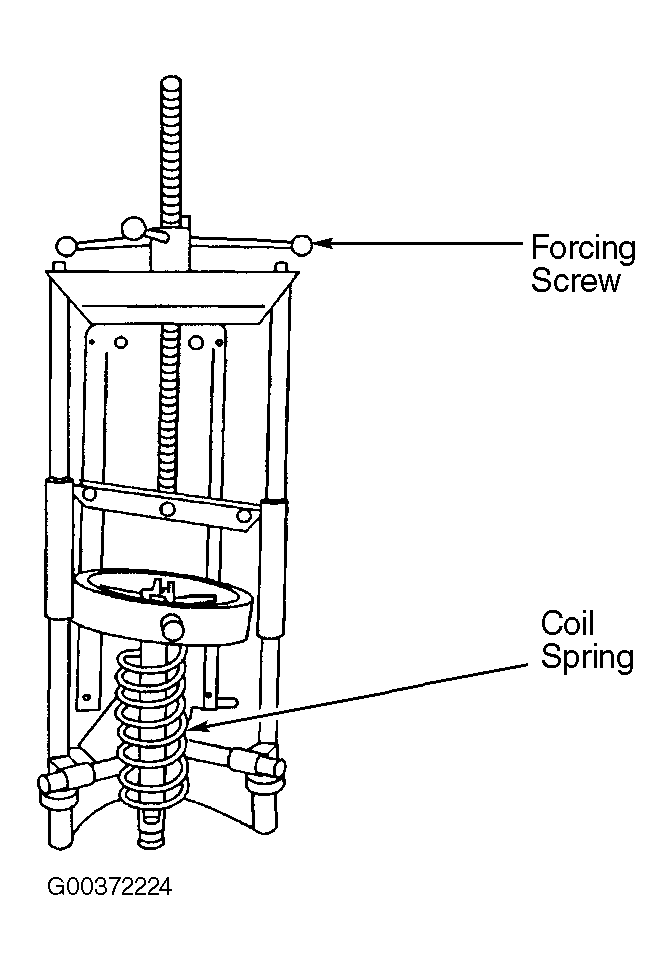

  2. Turn the spring compressor forcing screw until the coil spring is compressed. See Figure.
  3. Install the strut to the coil spring and upper strut mount.

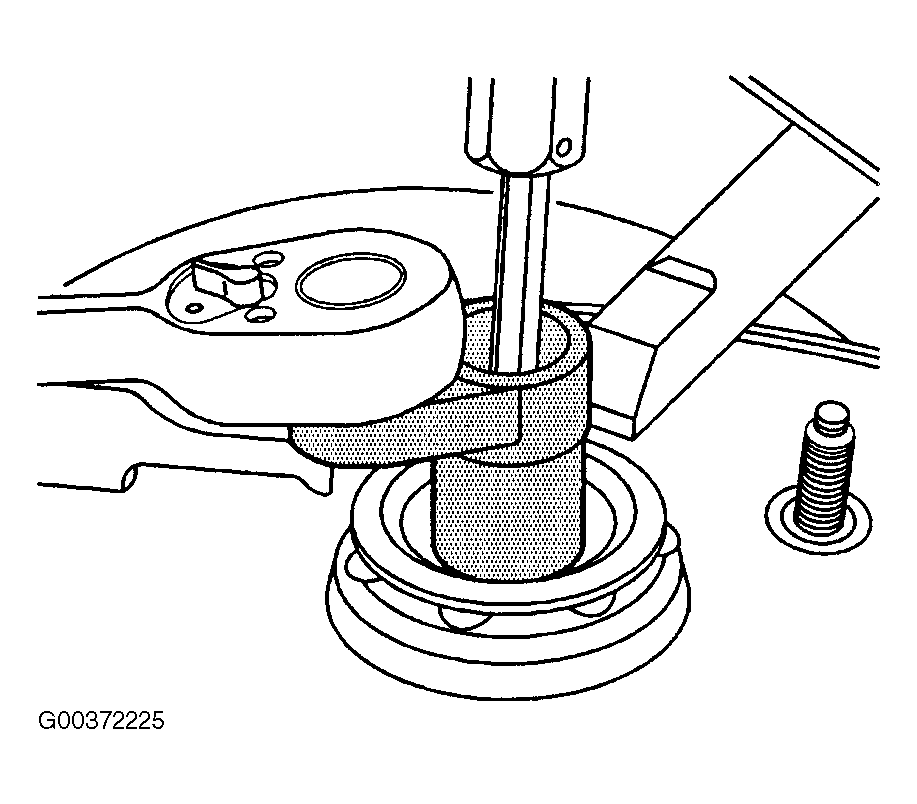

  4. Install the strut retaining nut. Using the J-42991 and a 45 TORX® socket, install the strut mount nut. See Figure. Tighten the strut mount nut to 85 N.m (63 lb ft).
  5. Remove the strut from the J-45400.
  6. Install the strut to the vehicle. See STRUT ASSEMBLY .
