Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Position the steering knuckle to strut assembly.

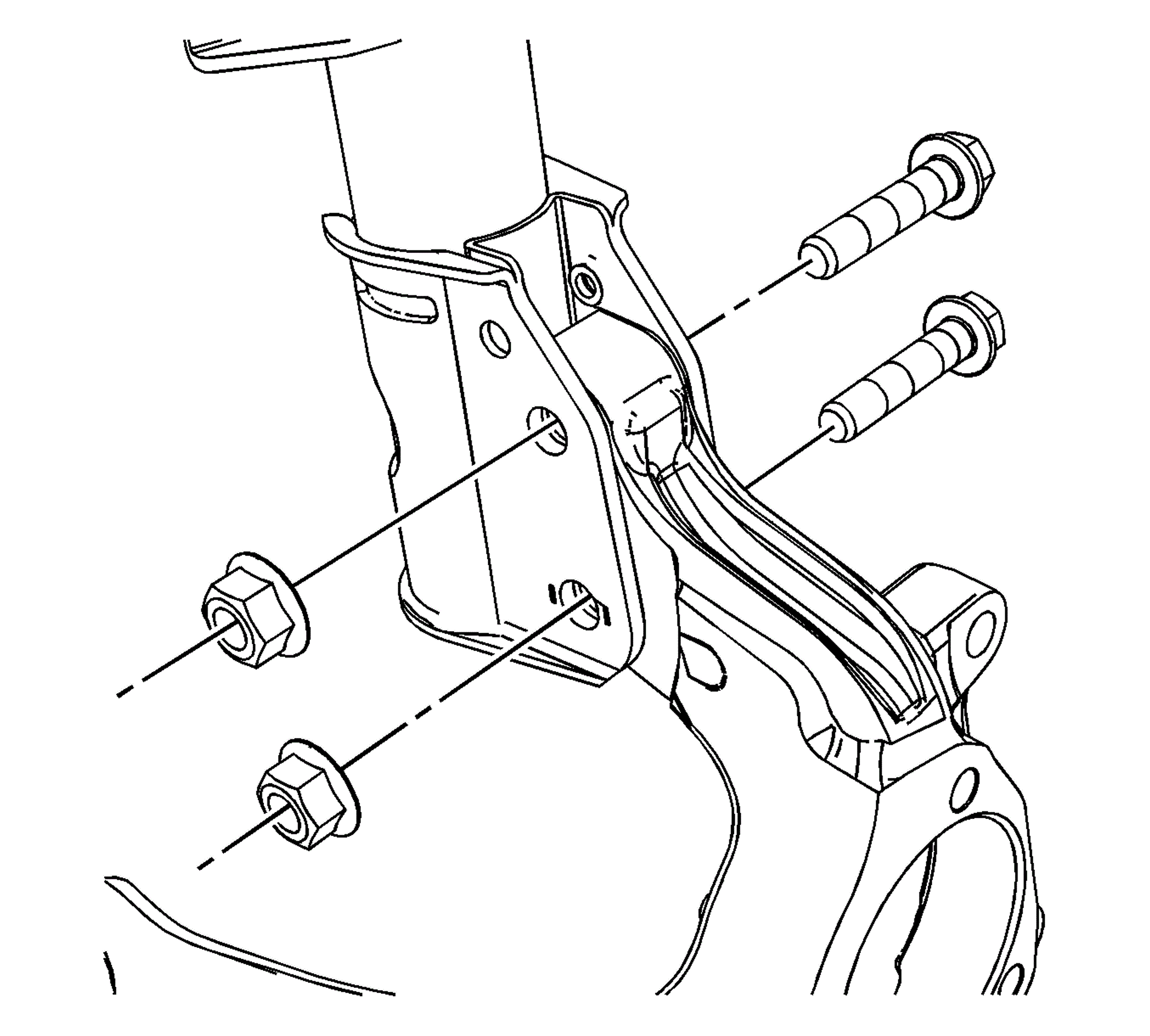

Fig 1: Identifying Steering Knuckle To Strut Bolts & Nuts

Courtesy of GENERAL MOTORS CORP.

Loosely install the strut to steering knuckle bolts and nuts.

Fig 2: View Of Ball Joint & Knuckle

Courtesy of GENERAL MOTORS CORP.

Position the lower ball joint stud into the steering knuckle.

CAUTION: Refer to Fastener Caution .

Using the SA9140E , install the ball stud nut and tighten to 40 N.m (30 lb ft).
Tighten the strut to steering knuckle bolts and nuts to 180 N.m (133 lb ft).

Fig 3: Identifying Lower Ball Joint Cotter Pin

Courtesy of GENERAL MOTORS CORP.

NOTE: Do not loosen the castle nut for cotter pin installation.

Tighten the castle nut enough to allow for cotter pin installation.

NOTE: The cotter pin must not contact the wheel speed sensor or drive axle.

Install a new cotter pin.
Install the tie rod. Refer to Steering Linkage Outer Tie Rod Replacement .

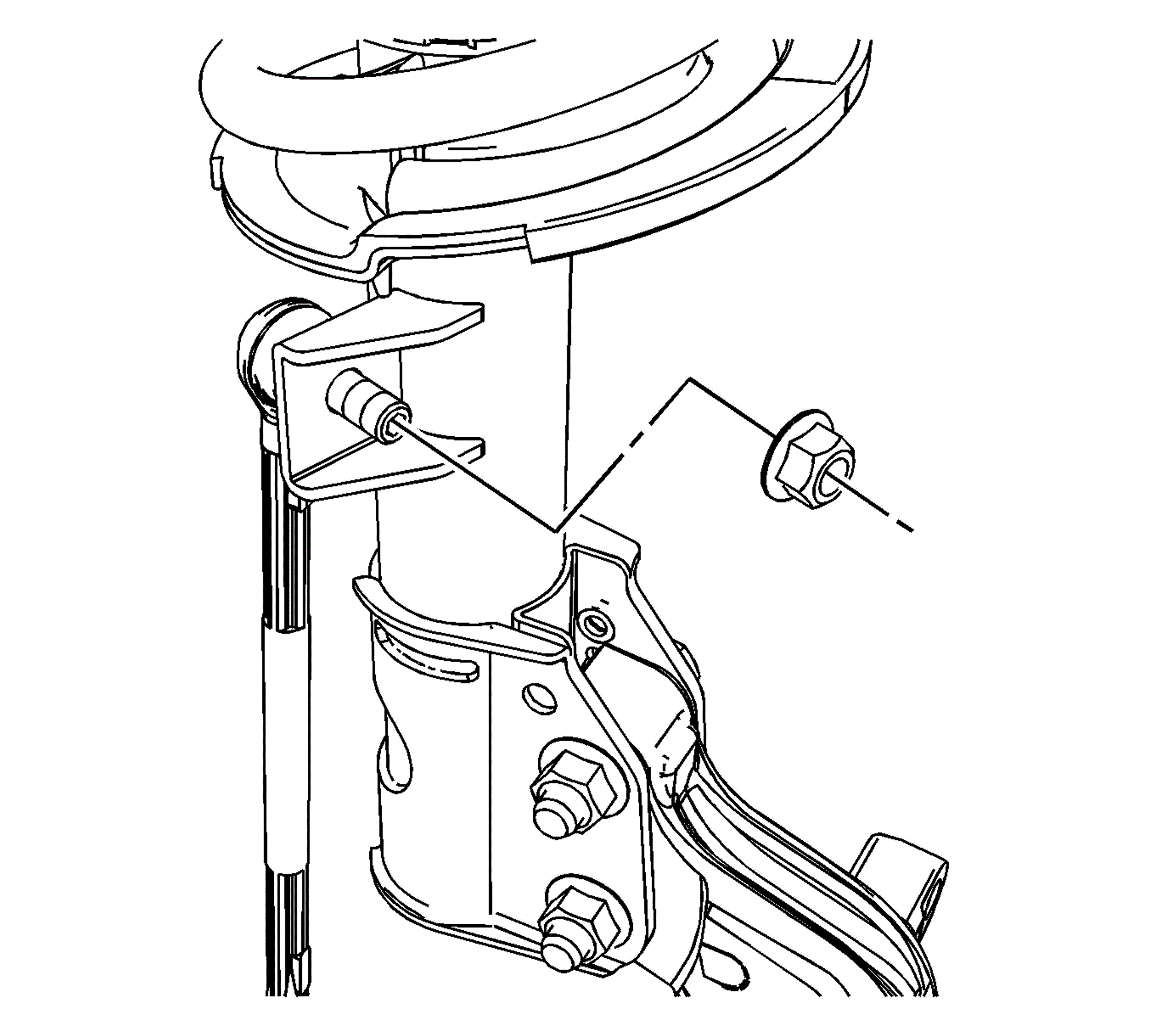

Fig 4: Identifying Stabilizer Link Retaining Nut

Courtesy of GENERAL MOTORS CORP.

NOTE: Do not allow the stabilizer link ball stud to rotate while installing the link nut.

Position the stabilizer shaft link to the strut assembly and install the nut. Tighten the nut to 65 N.m (48 lb ft).
Install the wheel bearing/hub assembly. Refer to Front Wheel Bearing and Hub Replacement .
Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
Lower the vehicle.
Perform a wheel alignment. Refer to Wheel Alignment Measurement .
