Stabilizer Shaft Link Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

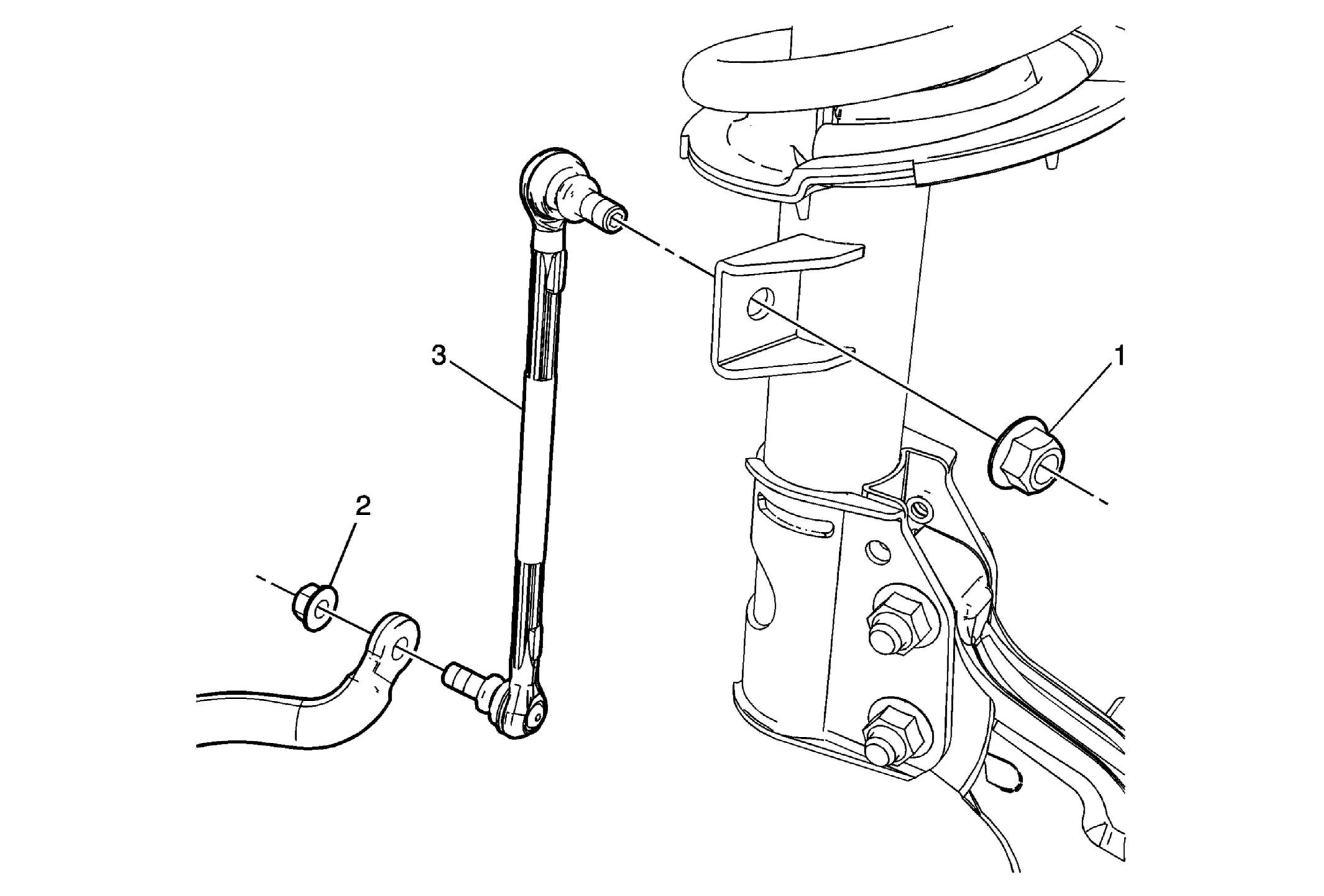

Fig 1: View Of Stabilizer Shaft Link

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front wheel and tire assembly. Refer to Tire and Wheel Removal and Installation .
1	Stabilizer Shaft Link Ball Stud Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: Nut at the strut 85 N.m (63 lb ft). Nut at the stabiklizer shaft 75 N.m (55 lb ft). Tip: Use the proper size allen wrench to keep the stabilizer link ball stud from rotate while removing or installing the nut.
2	Stabilizer Shaft Link

Callout

Component Name

Preliminary Procedures

Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the front wheel and tire assembly. Refer to Tire and Wheel Removal and Installation .

Stabilizer Shaft Link Ball Stud Nut (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: Nut at the strut 85 N.m (63 lb ft). Nut at the stabiklizer shaft 75 N.m (55 lb ft).

Tip: Use the proper size allen wrench to keep the stabilizer link ball stud from rotate while removing or installing the nut.

Stabilizer Shaft Link
