Rear License Plate Lamp Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

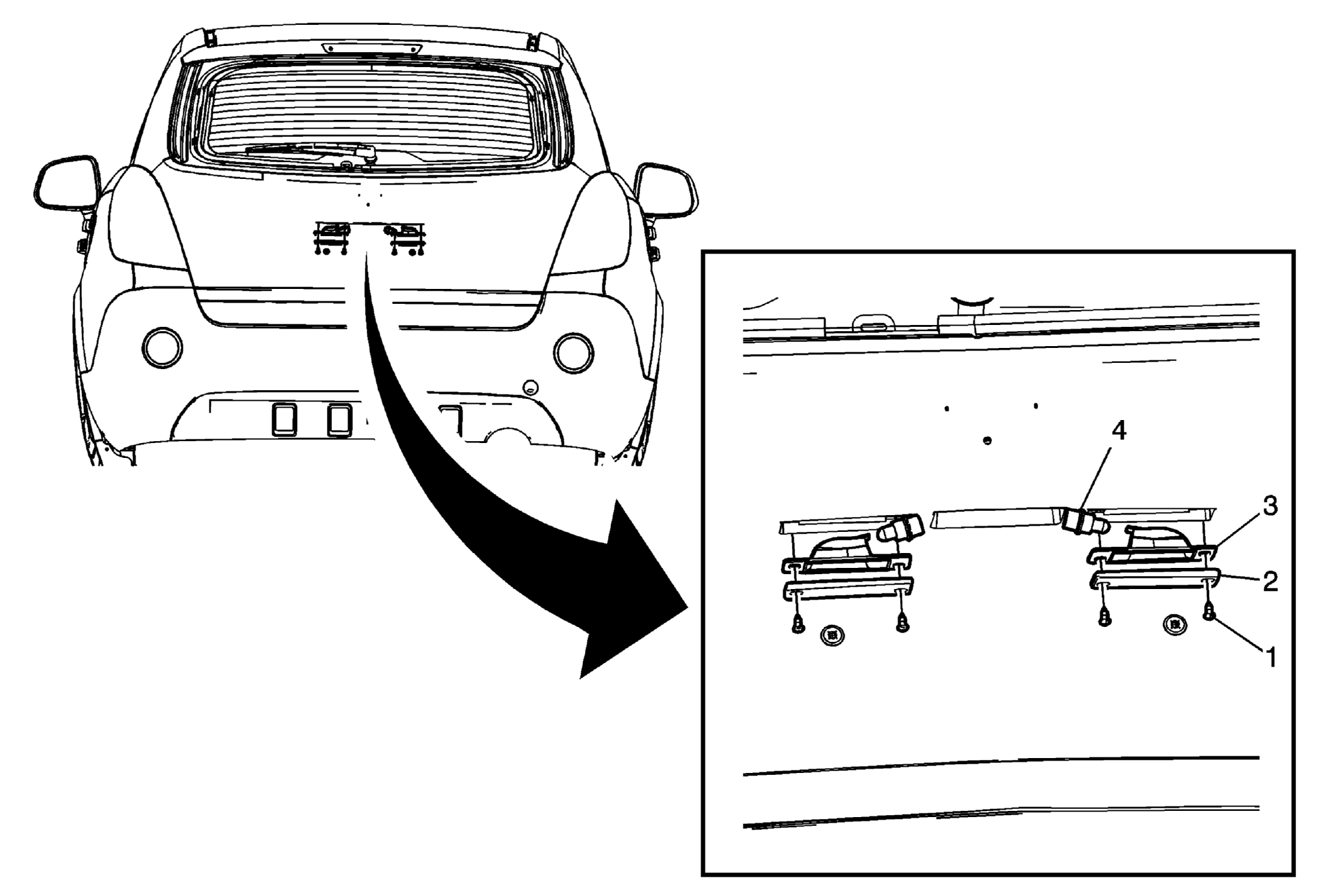

| Callout | Component Name |
|---|---|
| 1 | License Lamp Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution
.
Tighten: .9 N.m (8 lb in) |
| 2 | License Lamp Lens (Qty: 2) |
| 3 | License Lamp Housing |
| 4 | License Plate Lamp Bulbs (Qty: 2) |
