Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

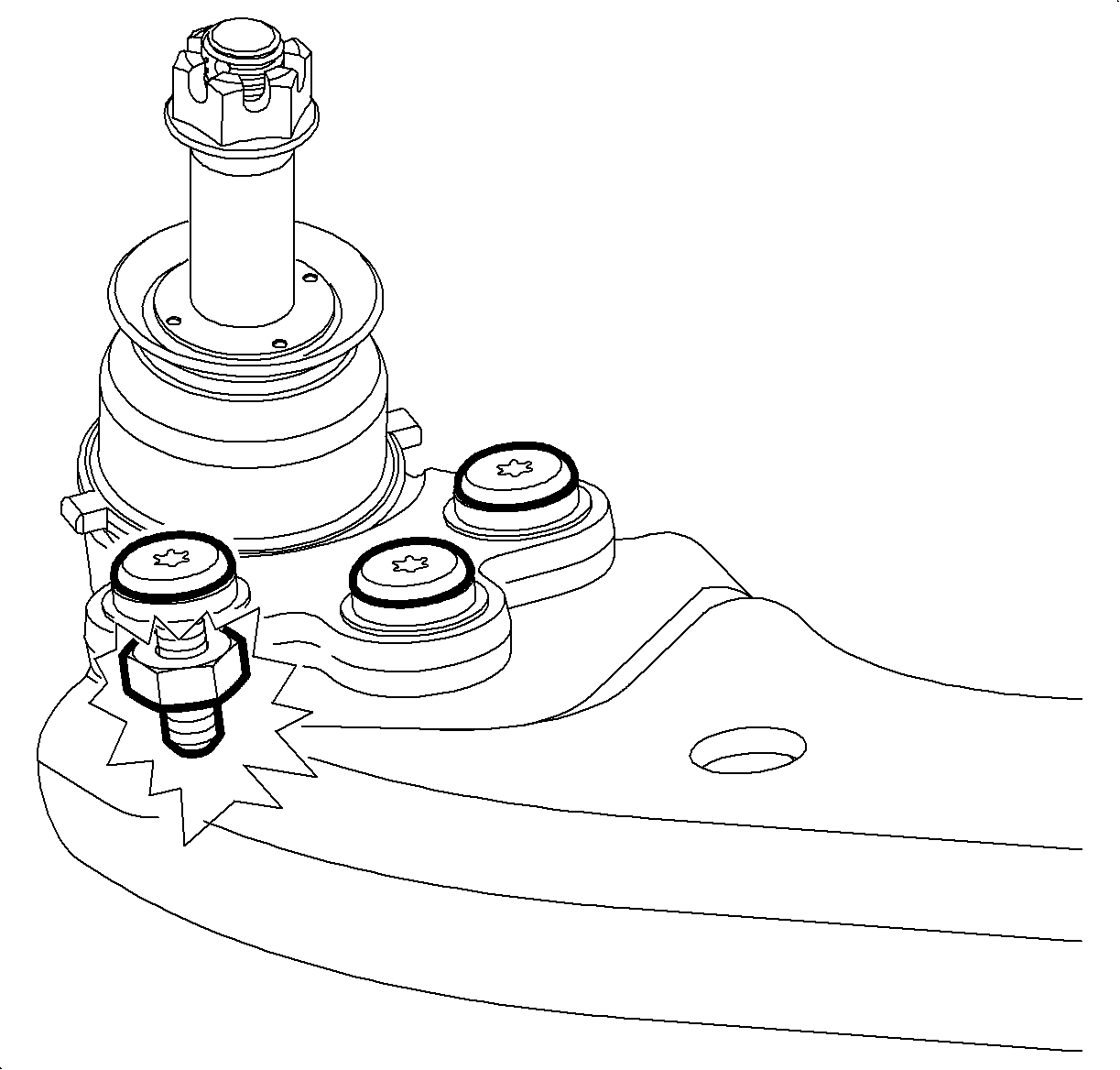

    Fig 1: Ball Joint & Control Arm
    GM933754Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The control arm must be clean and free of debris.
  1. Install the ball joint to the control arm as previously noted.
    2. NOTE: Refer to Fastener Notice .
    IMPORTANT:
    • Only use hardware provided with the new ball joint.
    • The bolts must be installed with the bolt head on top of the ball joint.
  2. Install the ball joint to control arm bolts.

    Tighten:  Tighten the bolts and nuts to 68 N.m (50 lb ft).

  3. Install the lower control arm. Refer to Lower Control Arm Replacement .
