Speaker - LR
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

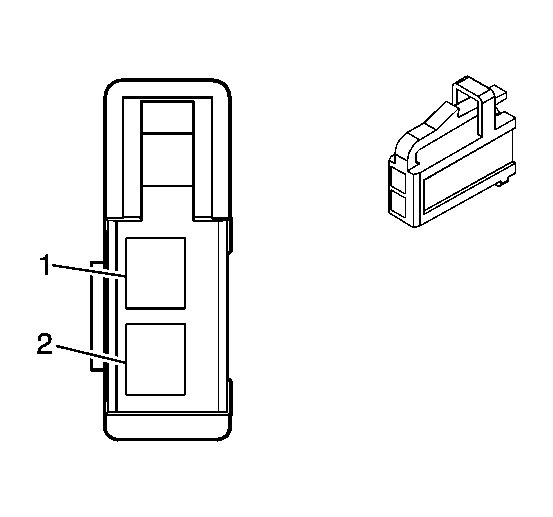

Courtesy of GENERAL MOTORS CORP. Speaker - LR Connector Parts Information
Connector Part Information
- OEM: 12186719
- Service: See Catalog
- Description: 2-Way F (BK)
|
Speaker - LR Connector Terminal identification
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
YE |
116 |
LR Speaker Output (-) |
| 2 |
BN |
199 |
LR Speaker Output (+) |
