Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Lower the sunshade. Raise the mirror and lamp cover door.
Insert a small flat-bladed tool at the lower edge of the vanity mirror lamp lens. Press down to release the lens.

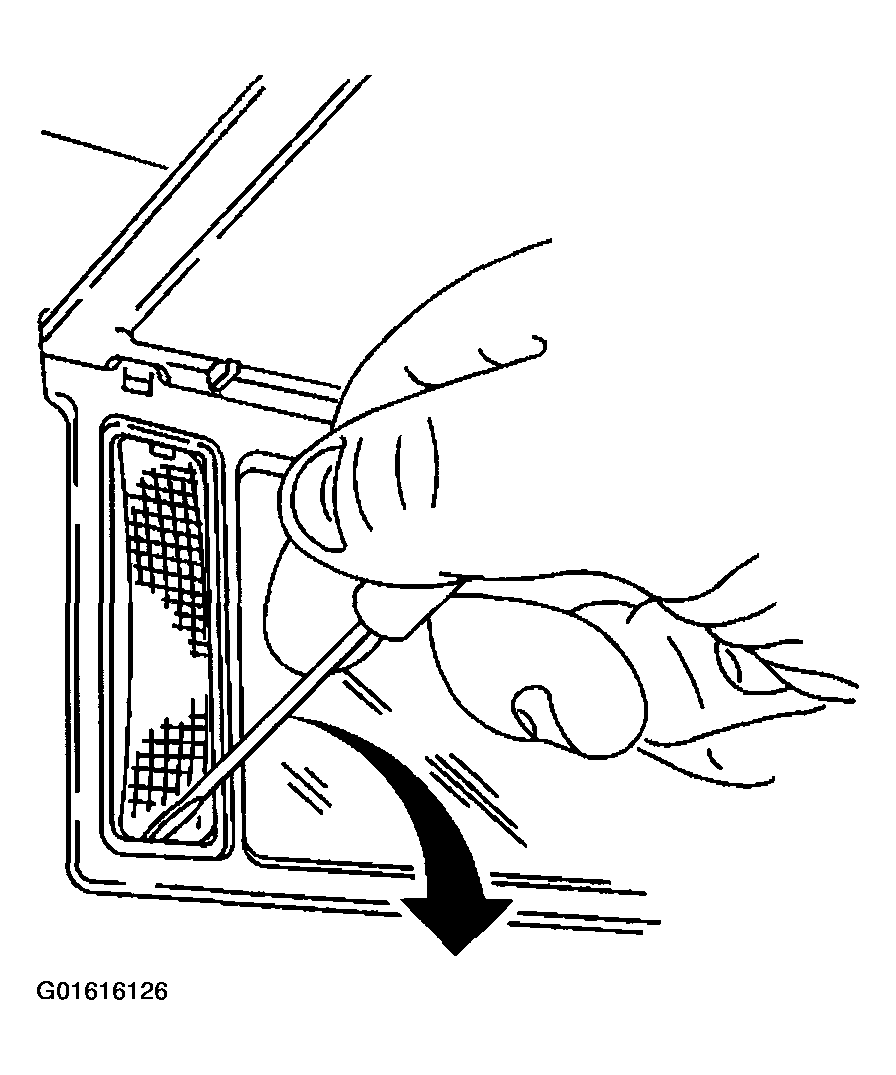

Fig 1: Releasing Lens
Courtesy of GENERAL MOTORS CORP.
Remove the vanity mirror lamp lens.

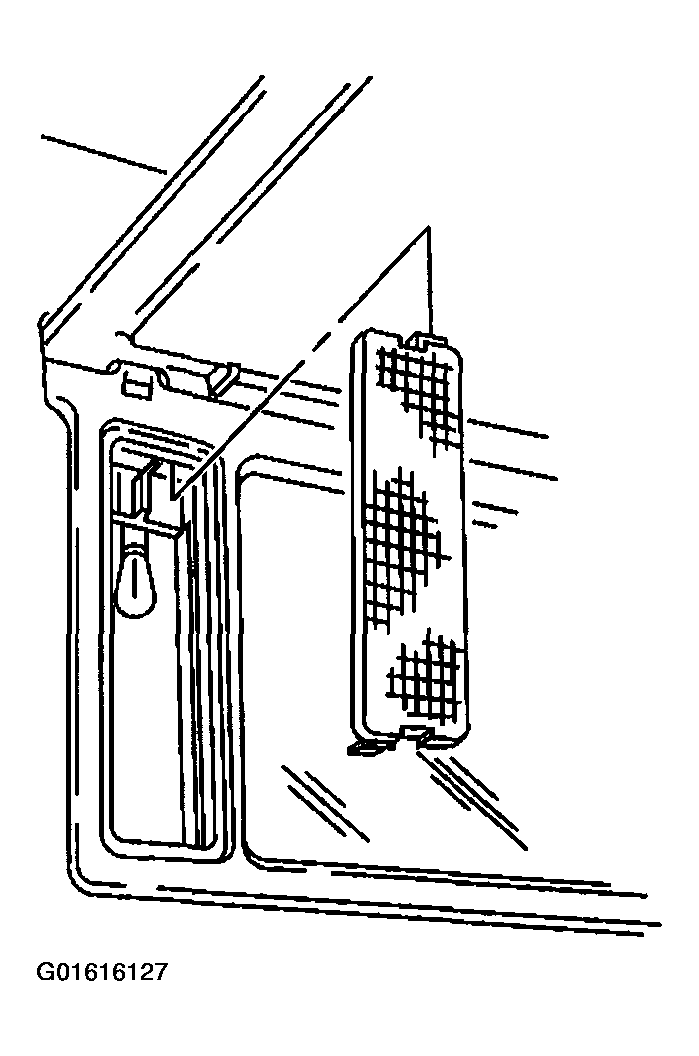

Fig 2: Removing Vanity Mirror Lamp Lens
Courtesy of GENERAL MOTORS CORP.
Remove the bulb from the socket.

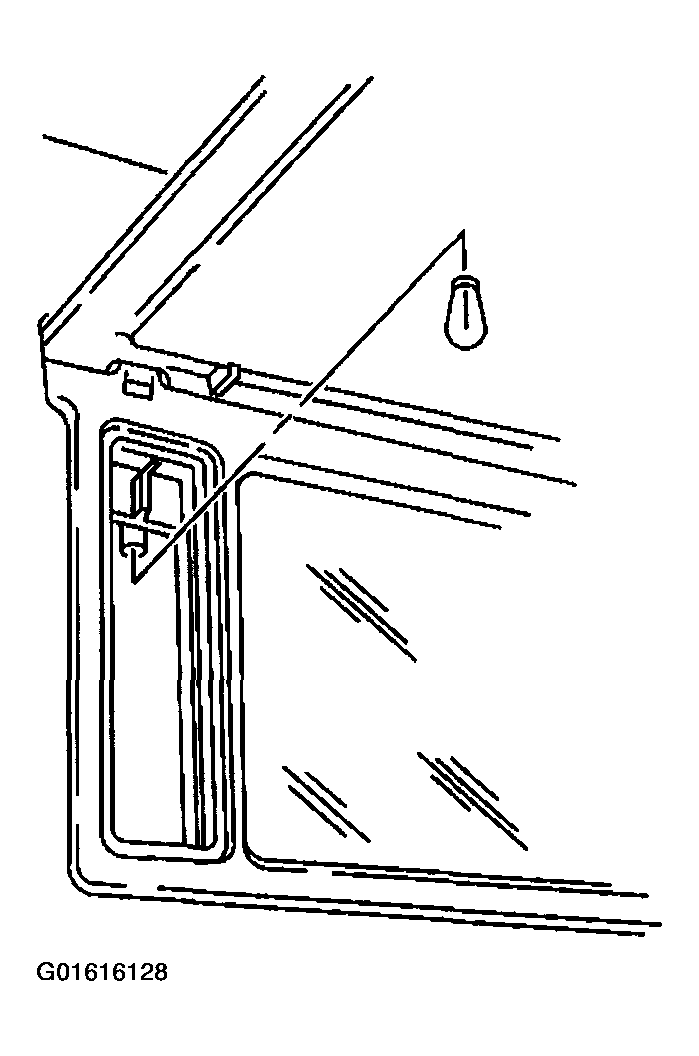

Fig 3: Vanity Mirror Lamp Bulb
Courtesy of GENERAL MOTORS CORP.
