Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
Remove the front fog nuts from the fog lamps.

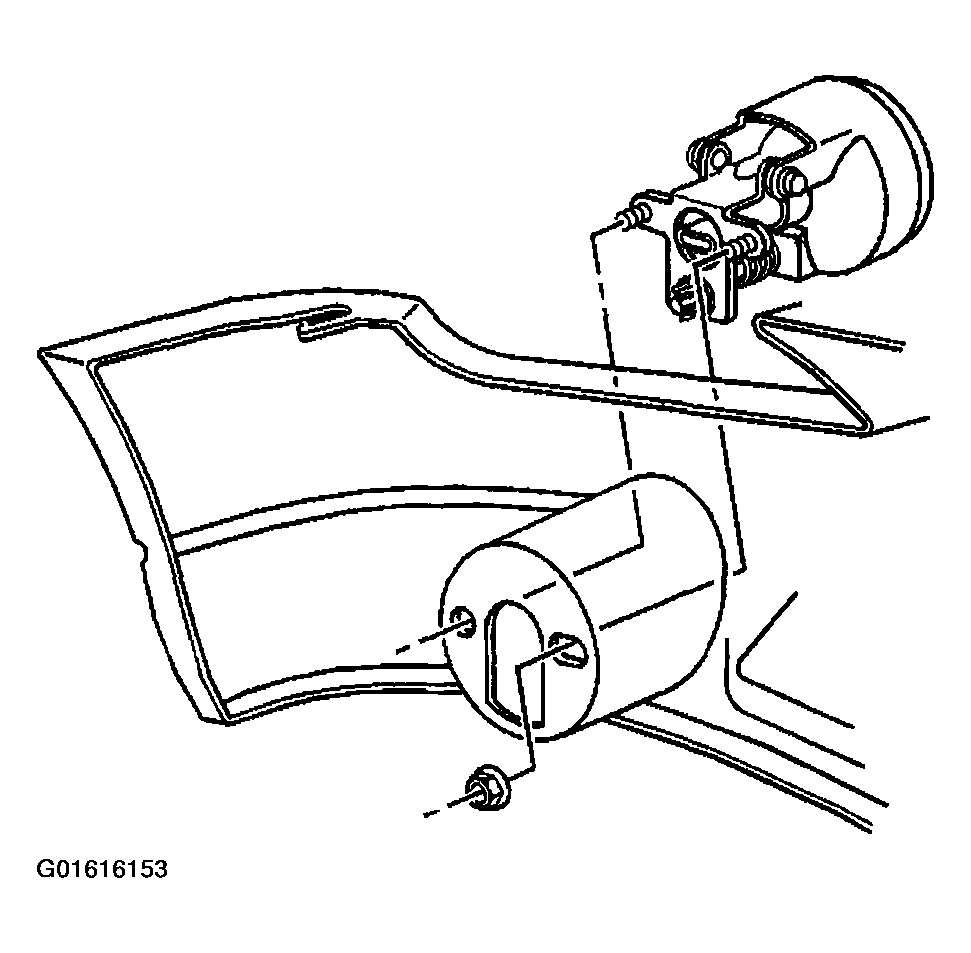

Fig 1: Removing Front Fog Lamp Nuts
Courtesy of GENERAL MOTORS CORP.
Remove the fog lamp from the front bumper fascia.

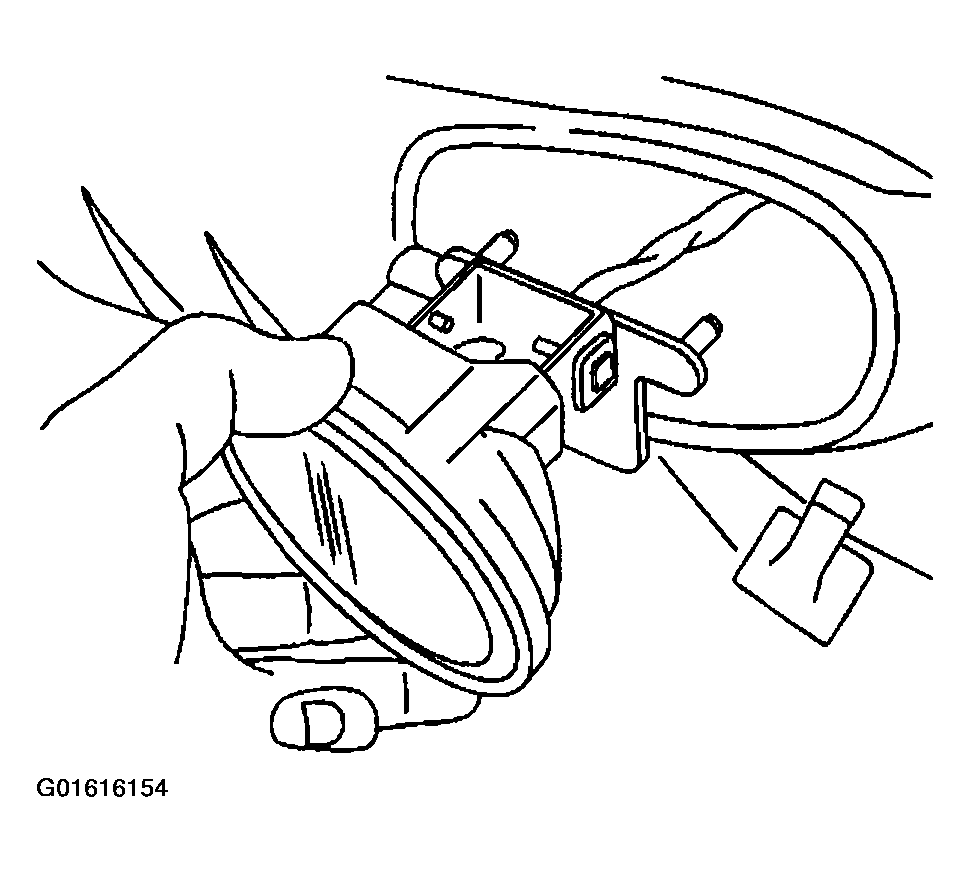

Fig 2: Removing Fog Lamp
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connector from the fog lamp bulb/socket.

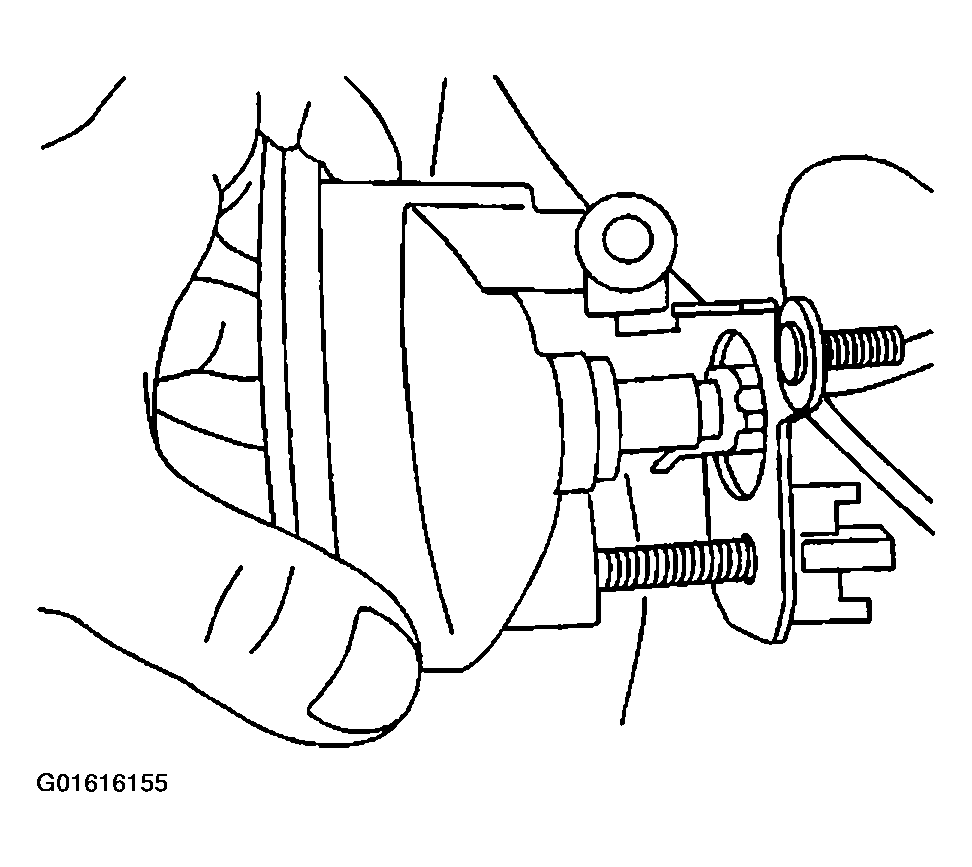

Fig 3: Disconnecting Fog Lamp Bulb/Socket Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Remove the fog lamp bulb/socket from the fog lamp, turning counterclockwise, if required.

Fig 4: Removing Fog Lamp Bulb/Socket
Courtesy of GENERAL MOTORS CORP.
