Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the water pump gasket.
  2. Install the water pump.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the water pump bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

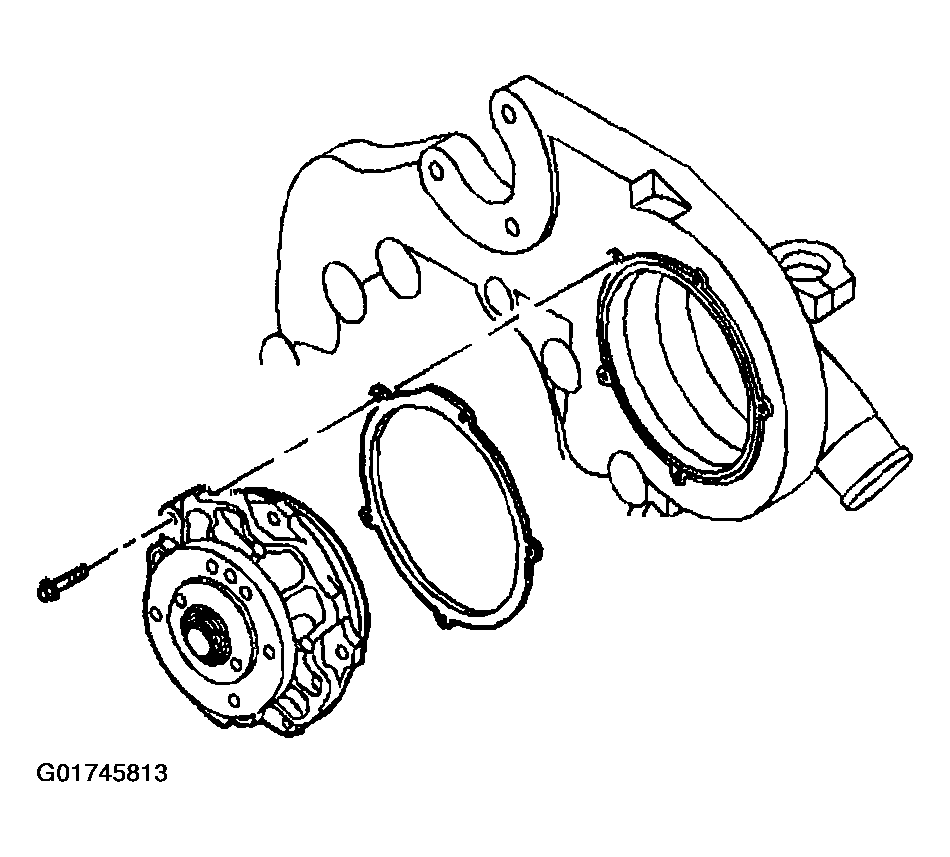

    4. Fig 1: Installing Water Pump, Gasket & Bolts
    G01745813Courtesy of GENERAL MOTORS CORP.
  4. Install the water pump pulley.
  5. Install the water pump pulley bolts.
  6. Install the drive belt. Refer to DRIVE BELT REPLACEMENT .

    Tighten

    Tighten the water pump pulley bolts to 25 N.m (18 lb in).

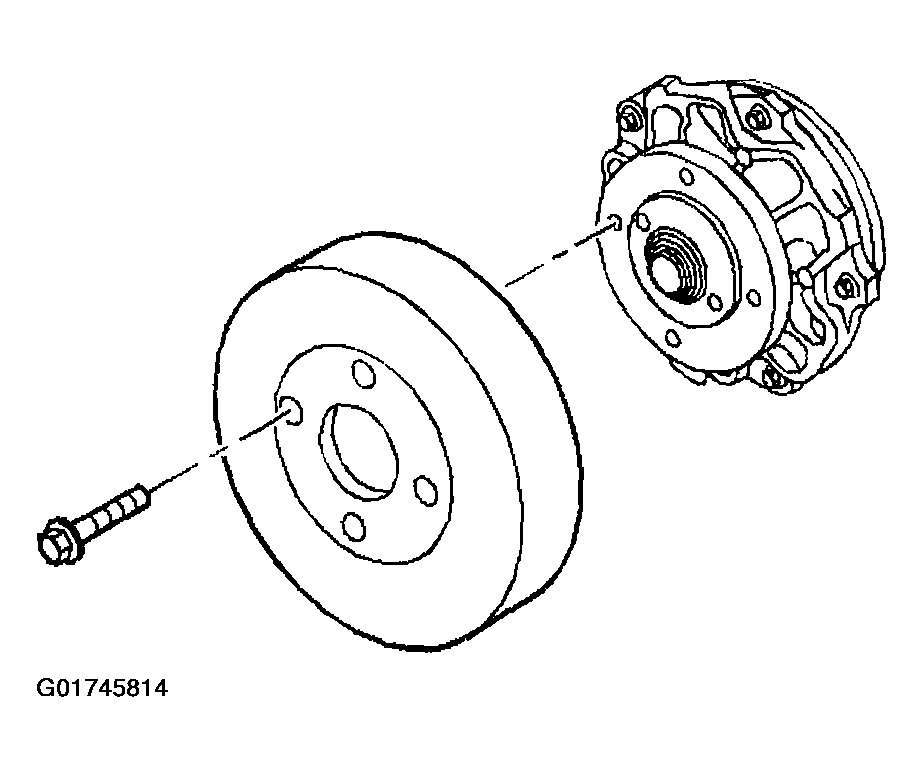

    7. Fig 2: Installing Water Pump Pulley & Bolts
    G01745814Courtesy of GENERAL MOTORS CORP.
  7. Install the drive belt guard.
  8. Fill the cooling system. Refer to Draining and Filling Cooling System .

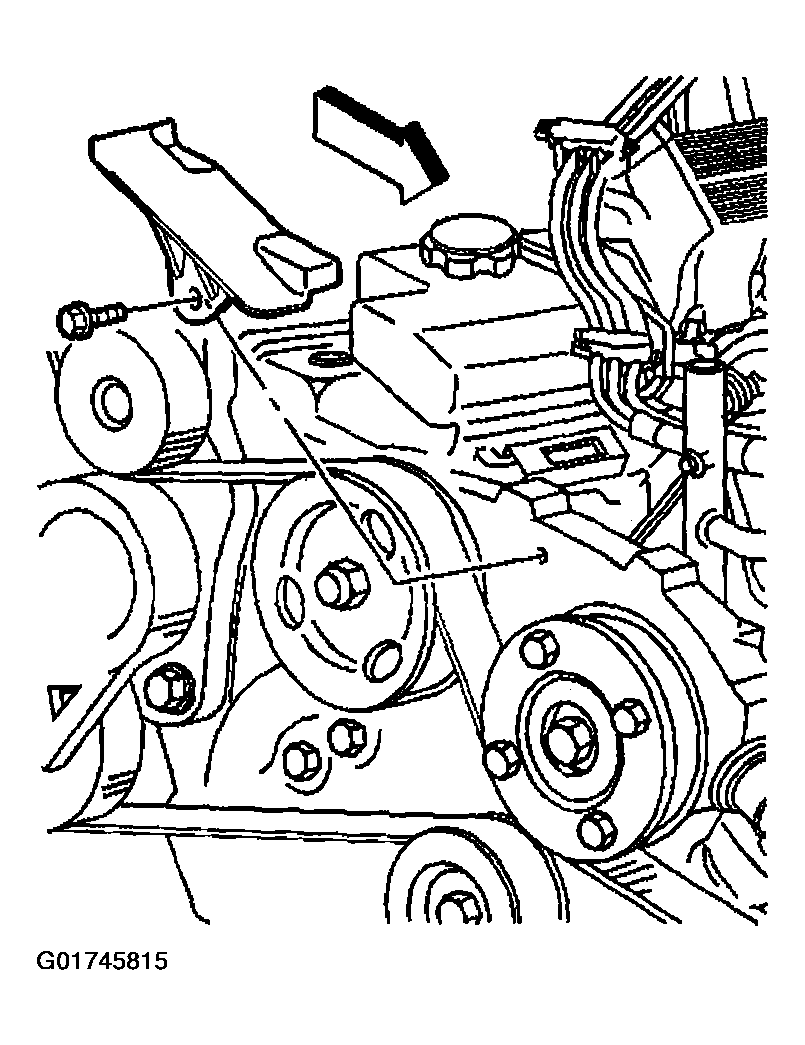

    Fig 3: Installing Drive Belt Guard
    G01745815Courtesy of GENERAL MOTORS CORP.
