Cooling System Connector End Views

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

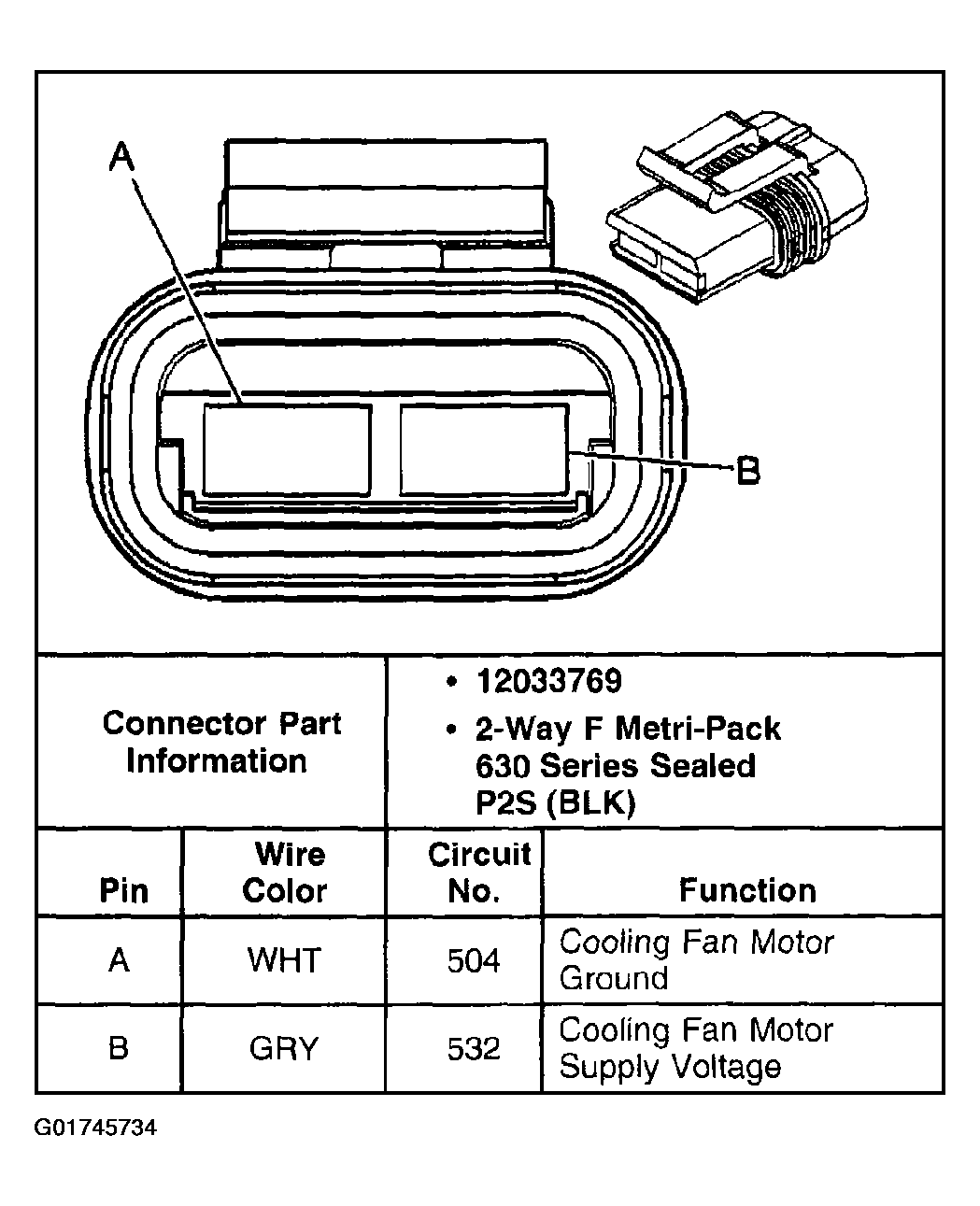

Fig 1: Cooling Fan - Left
G01745734Courtesy of GENERAL MOTORS CORP.

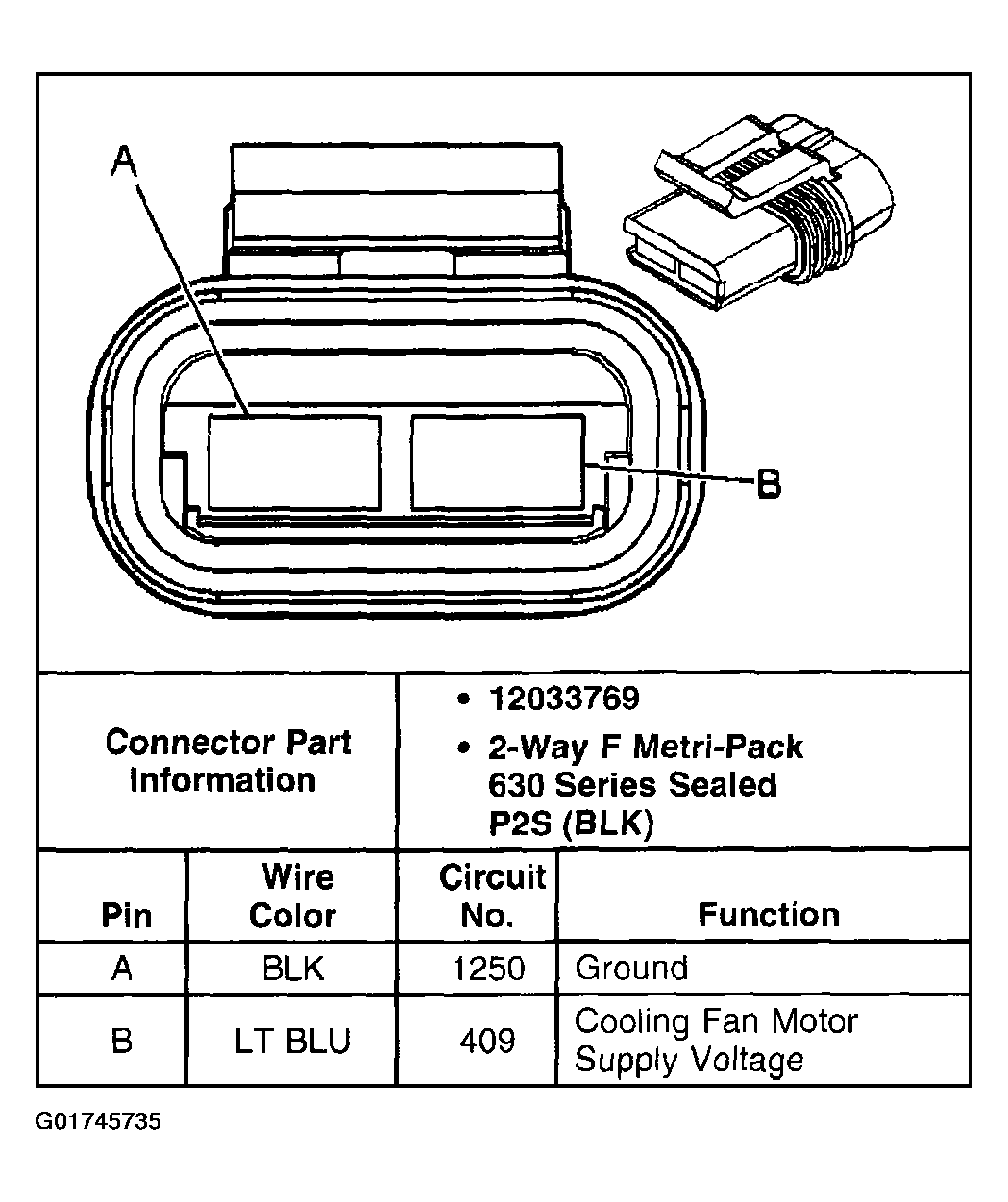

Fig 2: Cooling Fan - Right
G01745735Courtesy of GENERAL MOTORS CORP.
