Diagnostic Aids

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

This DTC may be stored as a history DTC without affecting the operation of the module. If stored only as a history DTC and not retrieved as a current DTC, do not replace the module.
If this DTC is retrieved as both a current and history DTC, replace the module.

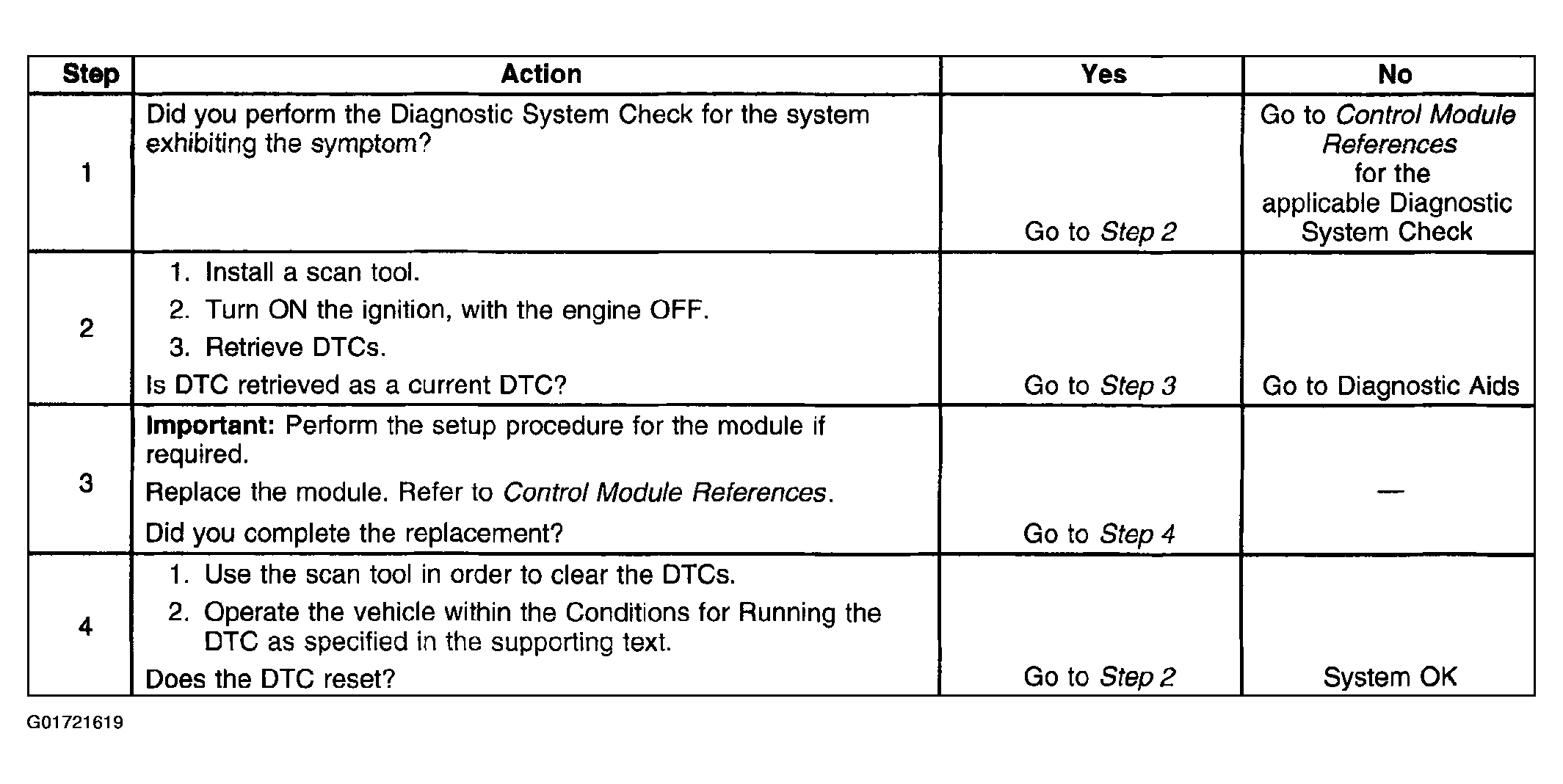

Fig 1: DTC B1009
Courtesy of GENERAL MOTORS CORP.
