Removal & Installation (2.2L - VIN 4)

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

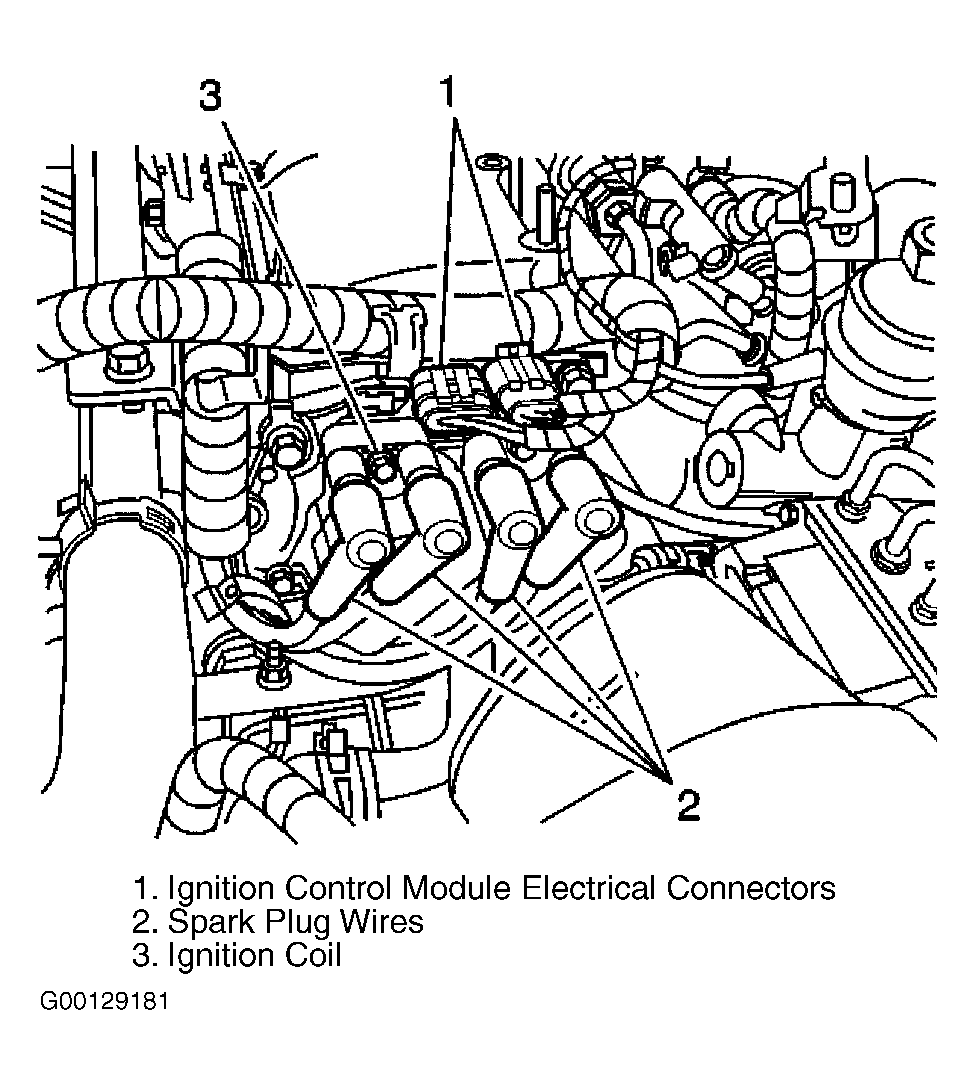

Ignition Control Module is located behind the ignition coils. See Figure. Remove the ignition coils. See REMOVAL & INSTALLATION (2.2L - VIN 4)  under IGNITION COIL. Remove ICM. To install, reverse removal procedure. Tighten coil and ICM bolts to specification. See TORQUE SPECIFICATIONS .
