Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the stabilizer shaft link insulators and spacers (2).
  2. Perform the following procedure before installing the stabilizer link bolts.
    • Remove all traces of the original adhesive patch.
    • Apply Threadlocker GM P/N 12345382 (Canadian P/N 10953489) BLUE LOCTITE # 242 on the threads of the bolts.
  3. Install the stabilizer shaft link bolts (3).
    NOTE: Refer to FASTENER NOTICE .
  4. Install the stabilizer shaft nut (1) to the link bolt.

    Tighten

    Tighten the nut to 10 N.m (89 lb in).

  5. Remove the safety stands
  6. Lower the vehicle.

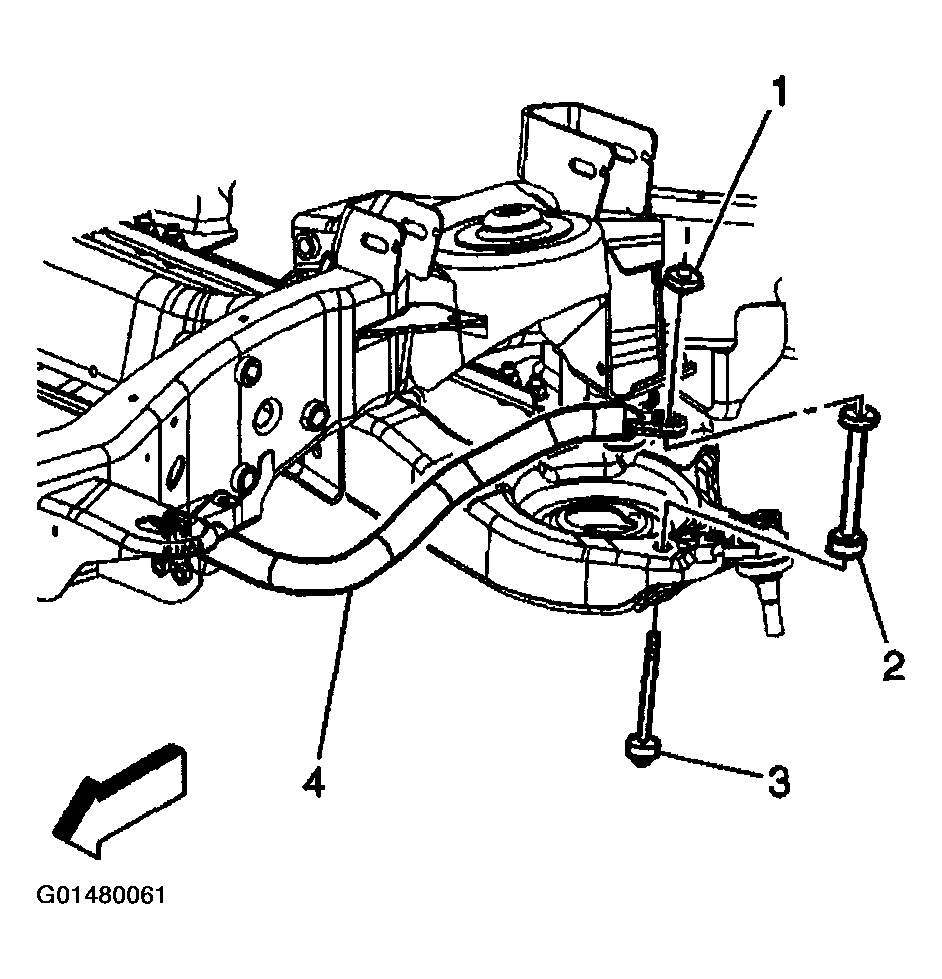

Fig 1: Stabilizer Shaft Nut, Insulators, Spacers & Shaft Link Bolt
G01480061Courtesy of GENERAL MOTORS CORP.
