Defogger Schematics

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

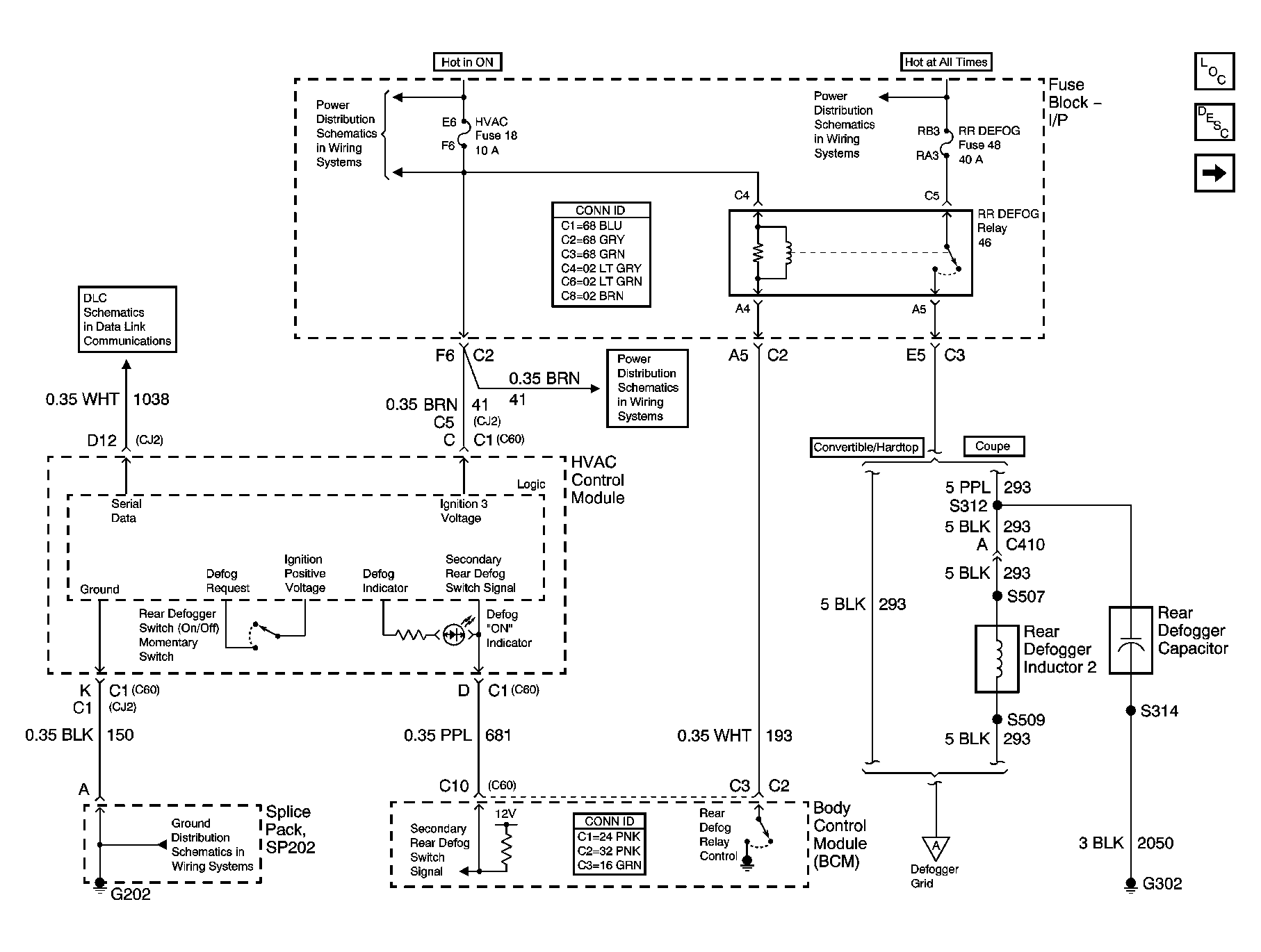

Fig 1: Power, Switch And Relay Schematics
GM820972Courtesy of GENERAL MOTORS CORP.
Fig 2: Ground And Defogger Grid Schematics
GM820973Courtesy of GENERAL MOTORS CORP.
