Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulb to the front parking/sidemarker lamp socket, if replacing the bulb.

Fig 1: Installing Front Parking/Sidemarker Lamp Bulb (Aztek)
Courtesy of GENERAL MOTORS CORP.

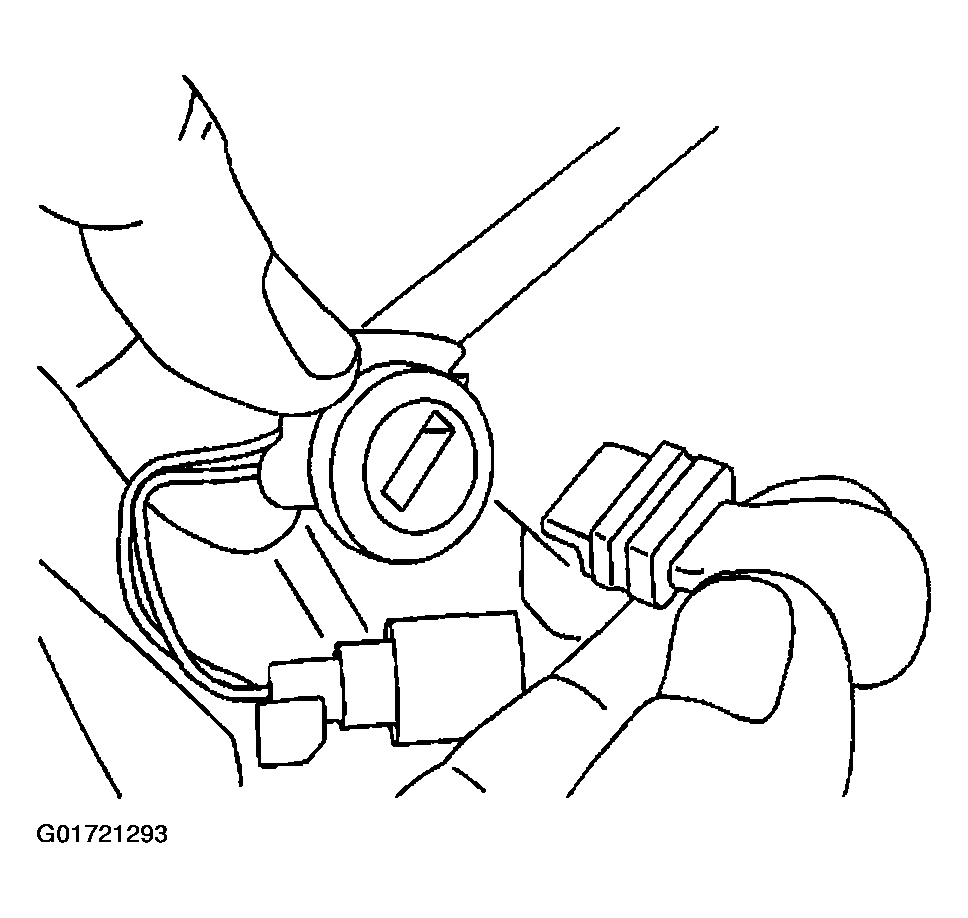

Install the front parking/sidemarker lamp socket, turning the socket clockwise until the locking tab is fully seated.

Fig 2: Installing Front Parking/Sidemarker Lamp Socket (Aztek)
Courtesy of GENERAL MOTORS CORP.

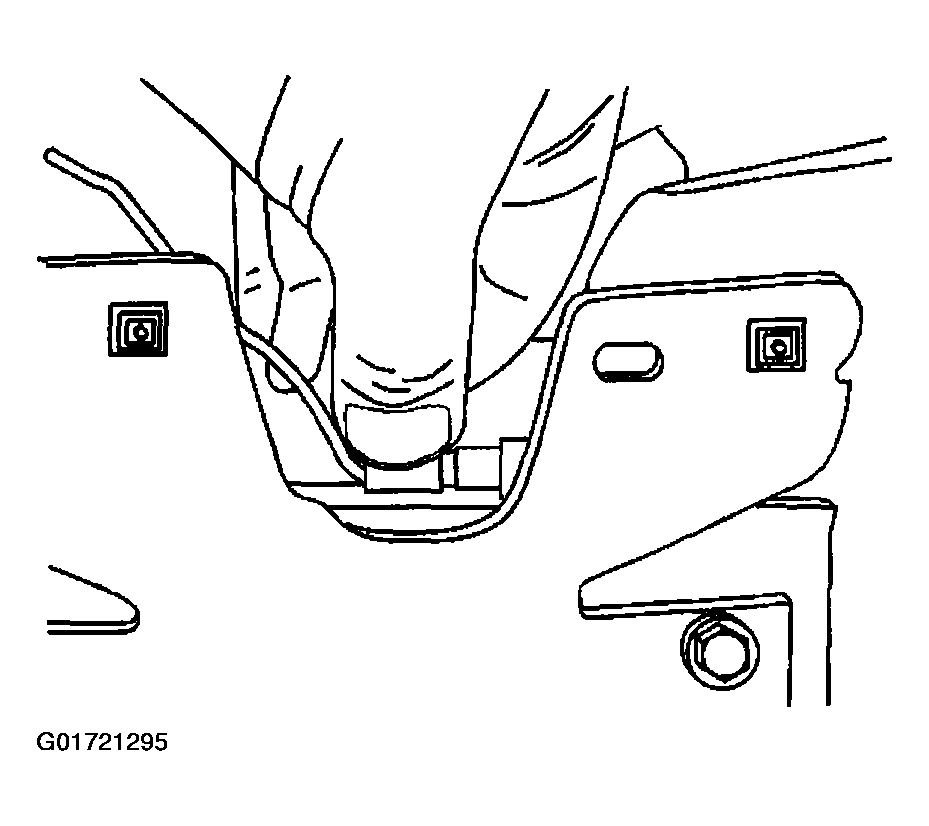

Connect the front parking/sidemarker lamp wiring harness to the pinch-weld flange.

Fig 3: Connecting Front Parking/Sidemarker Lamp Wiring Harness
Courtesy of GENERAL MOTORS CORP.

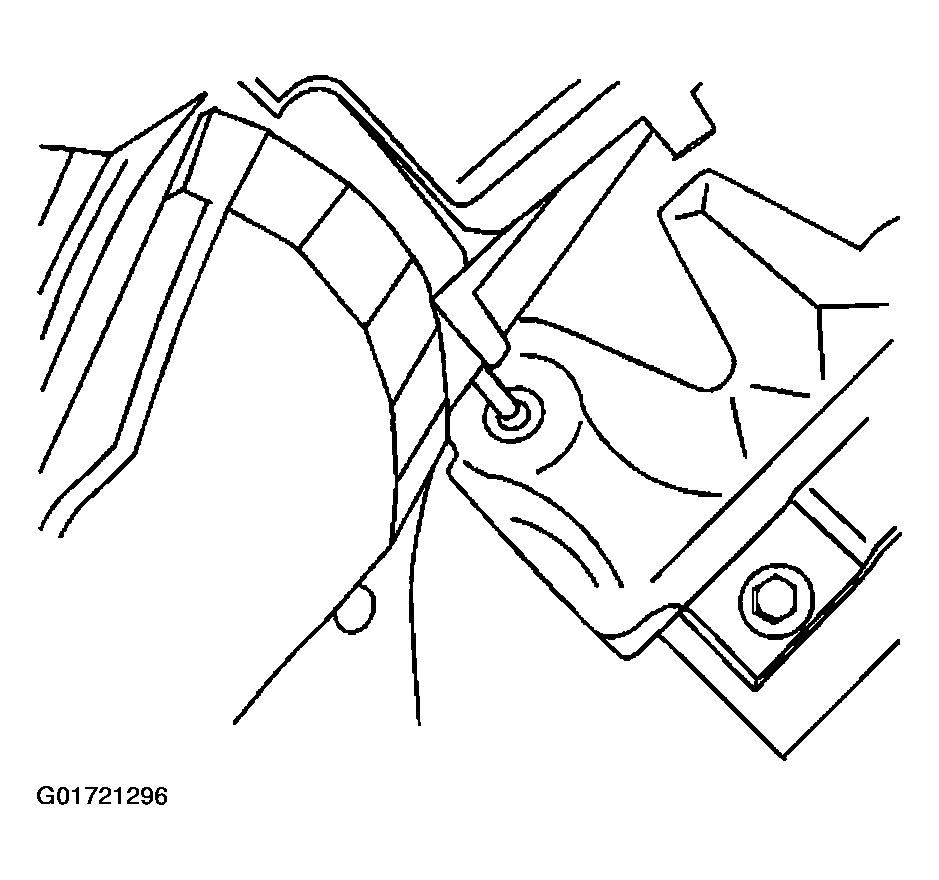

Align the ball stud of the front parking/sidemarker lamp to the grommet in the fender reinforcement.

Fig 4: Aligning Front Parking/Sidemarker Lamp Ball Stud
Courtesy of GENERAL MOTORS CORP.

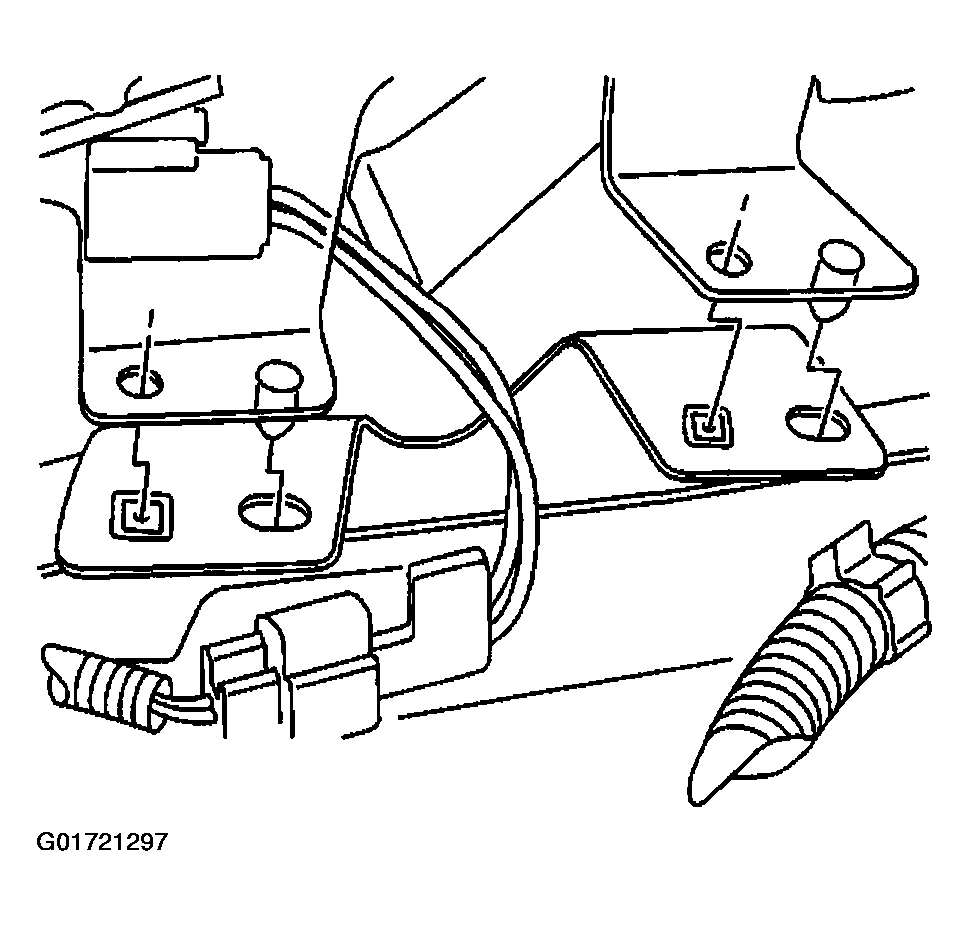

Position the alignment pins of the front parking/sidemarker lamp to the to the holes in the fender reinforcement.

Fig 5: Positioning Front Parking/Sidemarker Alignment Pins
Courtesy of GENERAL MOTORS CORP.

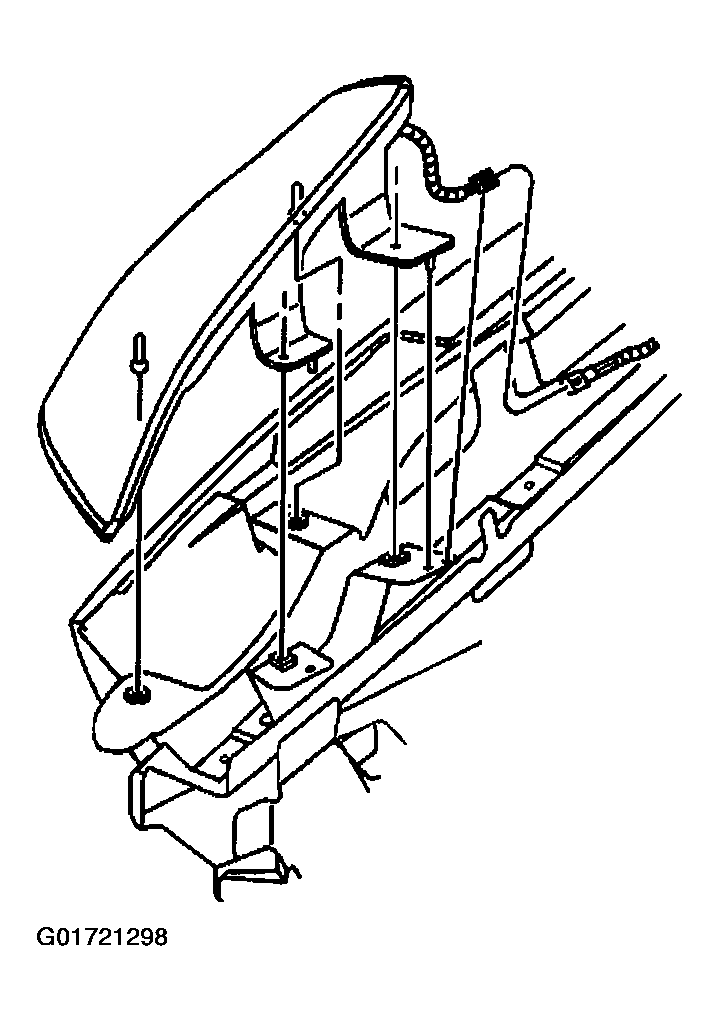

Install the front parking/sidemarker lamp to the front fender, pressing into place until fully seated.

Fig 6: Installing Front Parking/Sidemarker Lamp
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the screws to the front parking/sidemarker lamp.
Tighten

Tighten the front parking/sidemarker lamp screws to 2 N.m (18 lb in).
Close the hood.

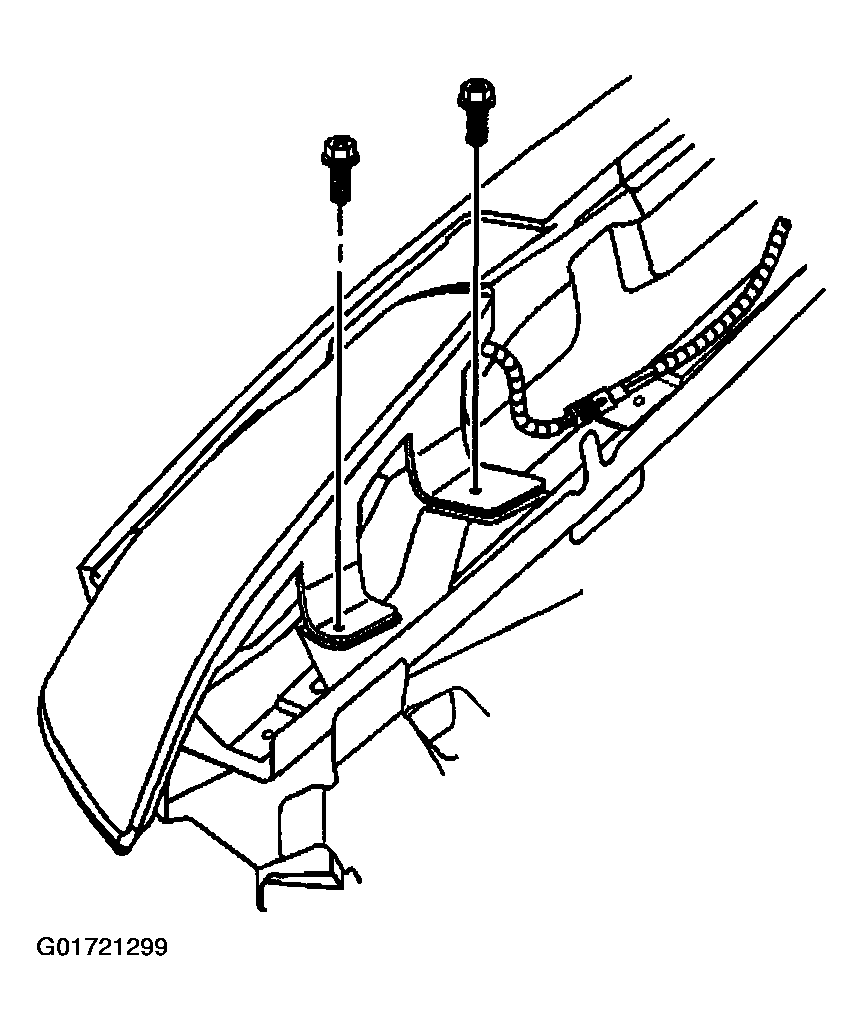

Fig 7: Installing Front Parking/Sidemarker Lamp Screws
Courtesy of GENERAL MOTORS CORP.
