Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws from the high mounted stop lamp.
    Fig 1: Removing High Mounted Stop Lamp Screws
    G01721304Courtesy of GENERAL MOTORS CORP.
  2. Remove the high mounted stop lamp from the roof panel.
  3. Disconnect the electrical connector from the high mounted stop lamp.

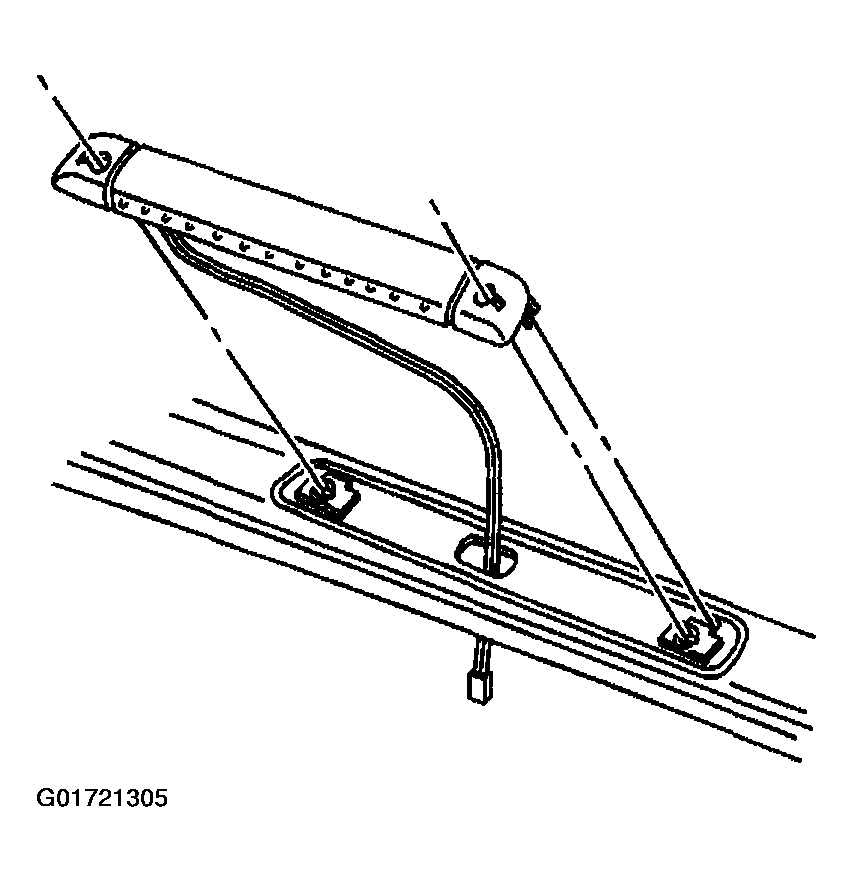

    Fig 2: Removing High Mounted Stop Lamp
    G01721305Courtesy of GENERAL MOTORS CORP.
  4. Remove the high mounted stop lamp plastic retainer nuts from the roof panel, using a small flat-bladed tool.
    Fig 3: Removing High Mounted Stop Lamp Plastic Retainer Nuts
    G01721306Courtesy of GENERAL MOTORS CORP.
