Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to HALOGEN BULB CAUTION .
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Disconnect the electrical connector from the fog lamp.
  3. Remove the nuts from the fog lamp.

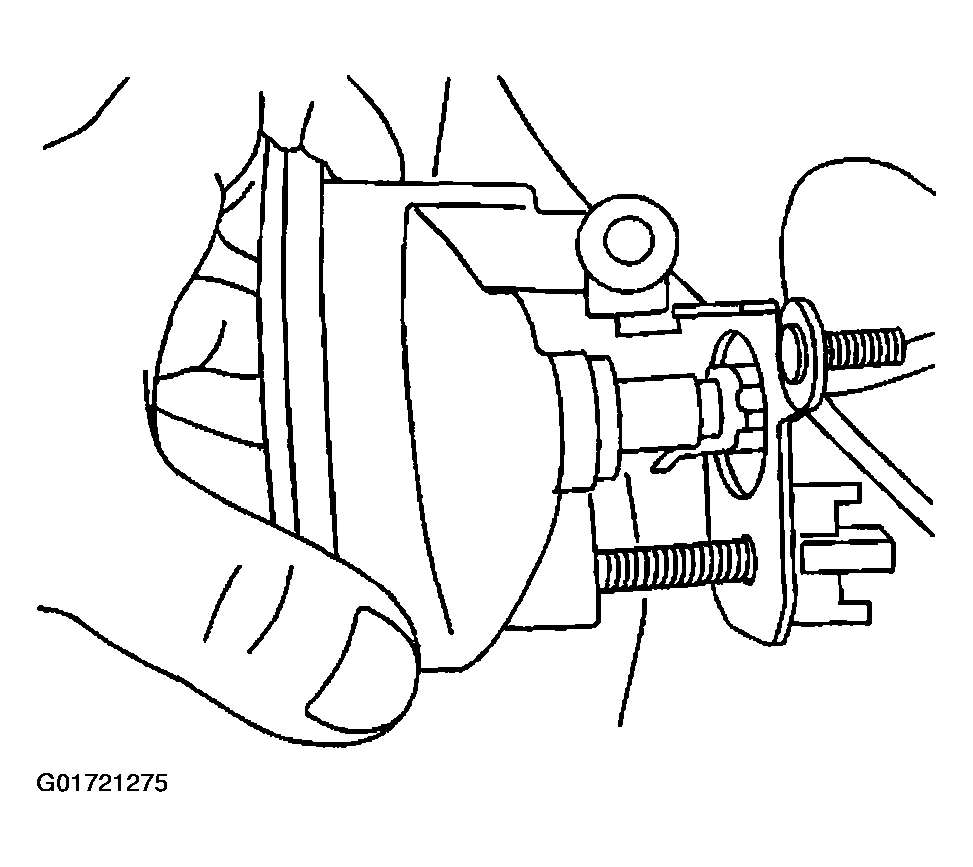

    Fig 1: Disconnecting Fog Lamp Electrical Connector (Aztek)
    G01721275Courtesy of GENERAL MOTORS CORP.
  4. Remove the fog lamp from the front bumper fascia.

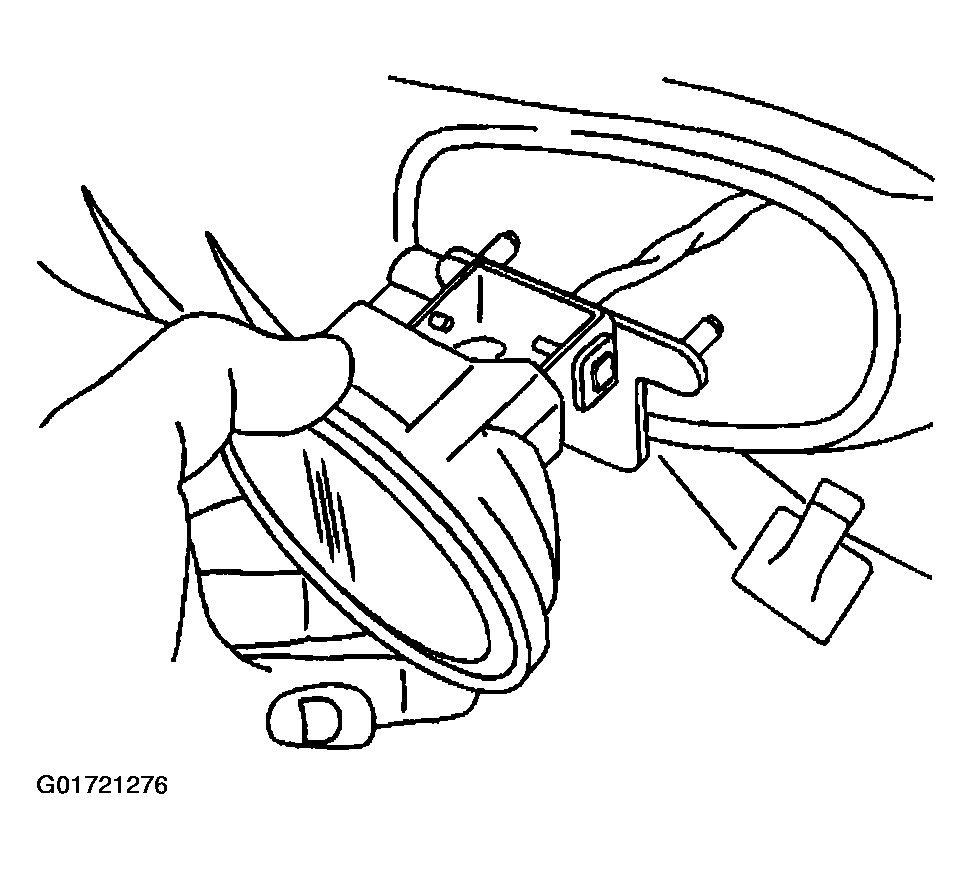

    Fig 2: Removing Fog Lamp (Aztek)
    G01721276Courtesy of GENERAL MOTORS CORP.
  5. Remove the fog lamp bulb from the fog lamp, turning counterclockwise, if required.
    Fig 3: Removing Fog Lamp Bulb
    G01721277Courtesy of GENERAL MOTORS CORP.
