Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front fender liners. Refer to BODY FRONT END
  2. Remove the headlamps. Refer to LIGHTING SYSTEMS
  3. Remove the fog lamps. Refer to LIGHTING SYSTEMS .

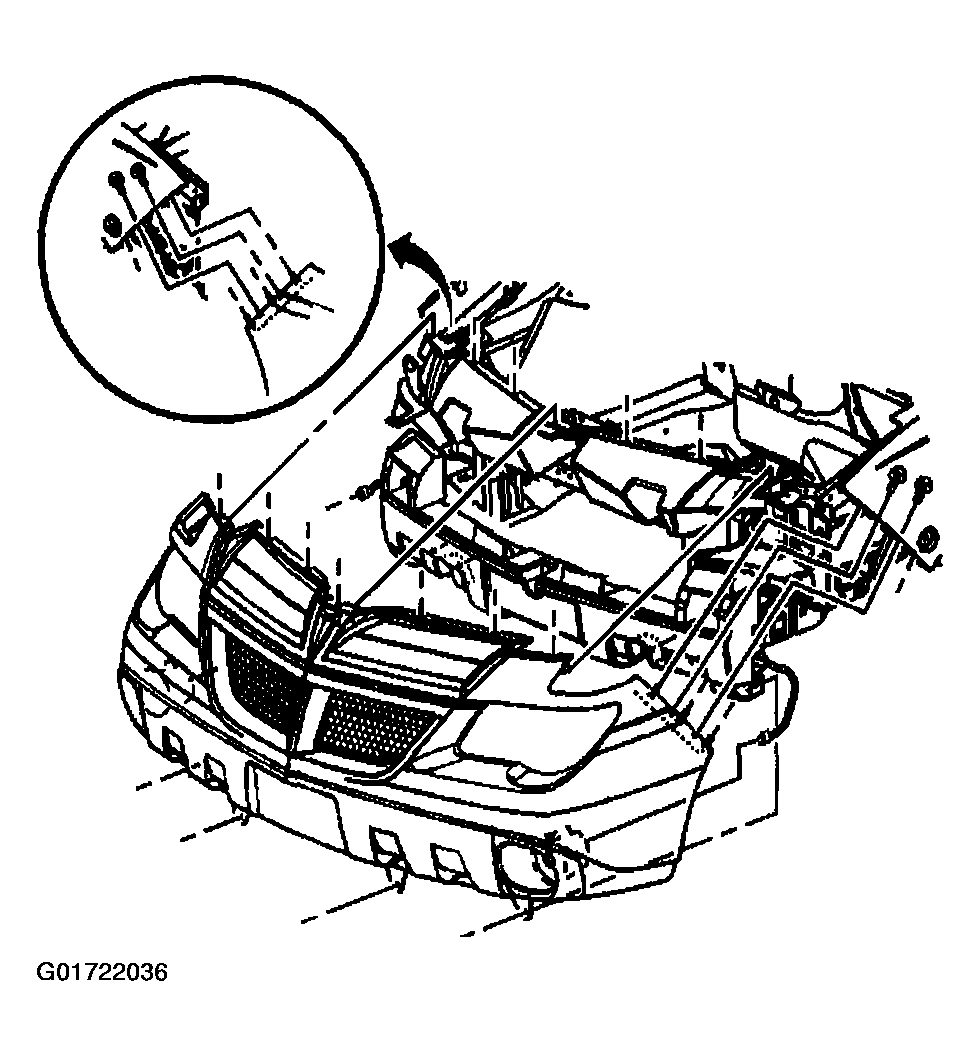

    Fig 1: Removing Bolts From Front Bumper Fascia At Fender
    G01722036Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolts from the front bumper fascia at the fender.
  5. Remove the push-in retainers from the upper bumper fascia support using J 38778  .

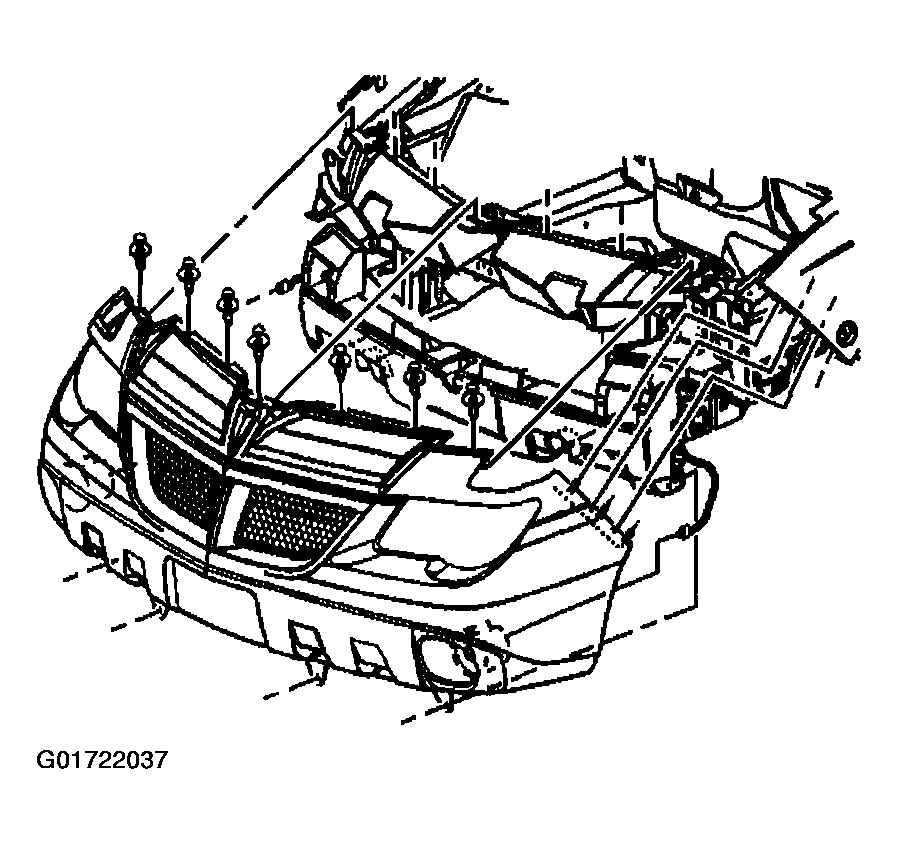

    Fig 2: Removing Push-In Retainers From Upper Bumper Fascia Support Using J 38778
    G01722037Courtesy of GENERAL MOTORS CORP.
  6. Remove the push-in retainers to the fascia at the front bumper energy absorber using J 38778  .
  7. Remove the fascia from the vehicle.
  8. Remove the grilles from the fascia. Refer to Fascia Grille Replacement (Aztek)  or Fascia Grille Replacement (Rendezvous) .
  9. Remove the fascia outer support from the fascia.

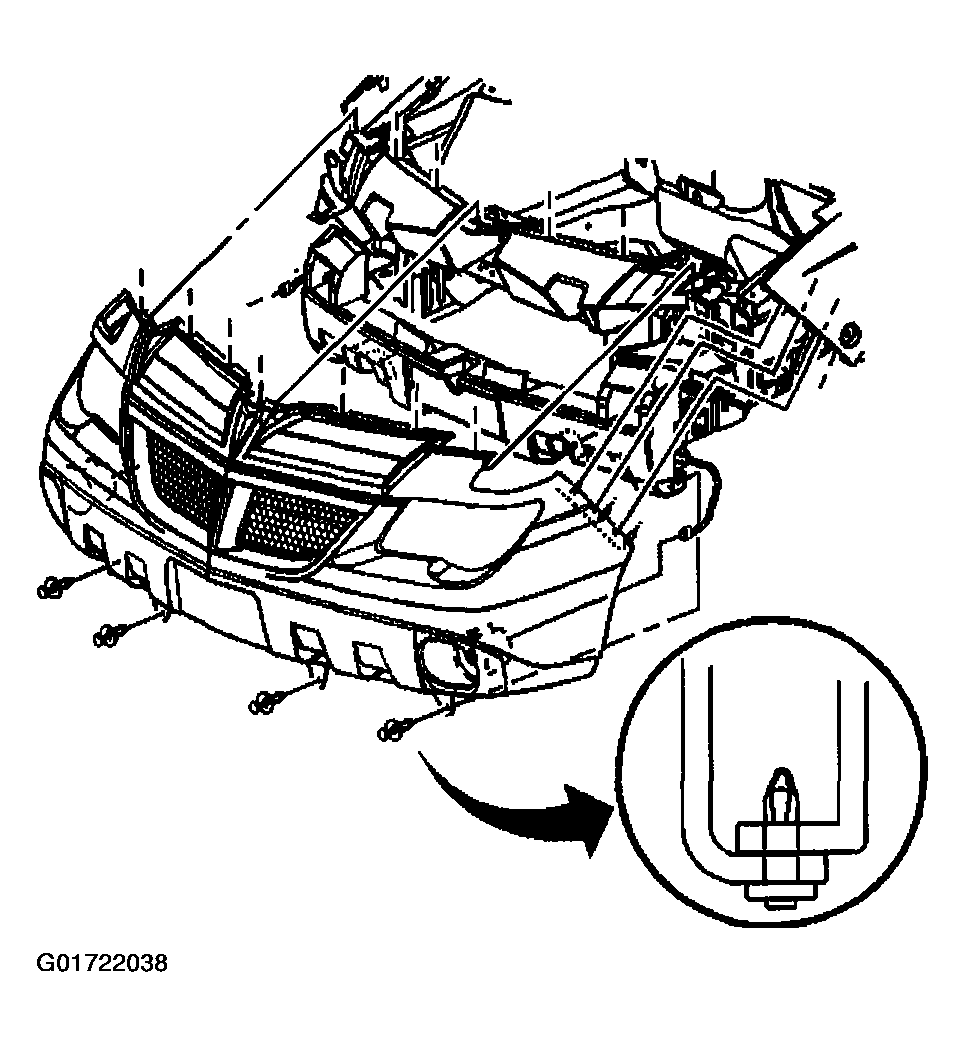

    Fig 3: Removing Push-In Retainers To Fascia At Front Bumper Energy Absorber
    G01722038Courtesy of GENERAL MOTORS CORP.
