Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front bumper energy absorber to the front bumper impact bar.

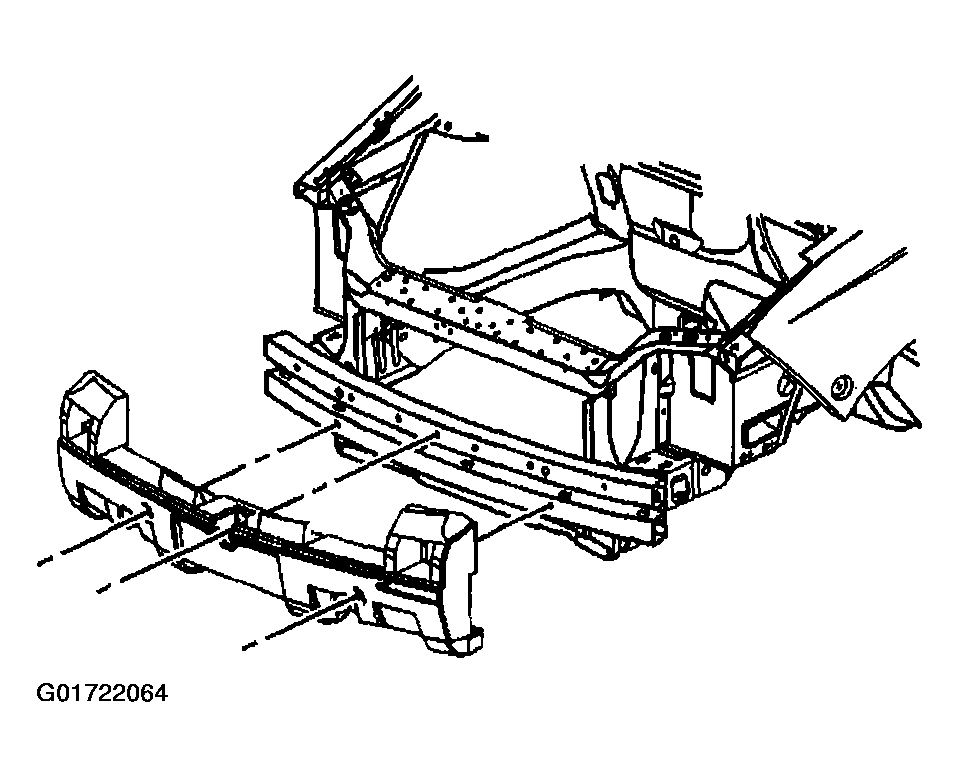

    Fig 1: Installing Front Bumper Energy Absorber
    G01722064Courtesy of GENERAL MOTORS CORP.
  2. Starting with the center hole, install the push-in retainers to the front bumper energy absorber.
  3. Install the front bumper fascia. Refer to Fascia Replacement - Front Bumper (Aztek)  or Fascia Replacement - Front Bumper (Rendezvous) .

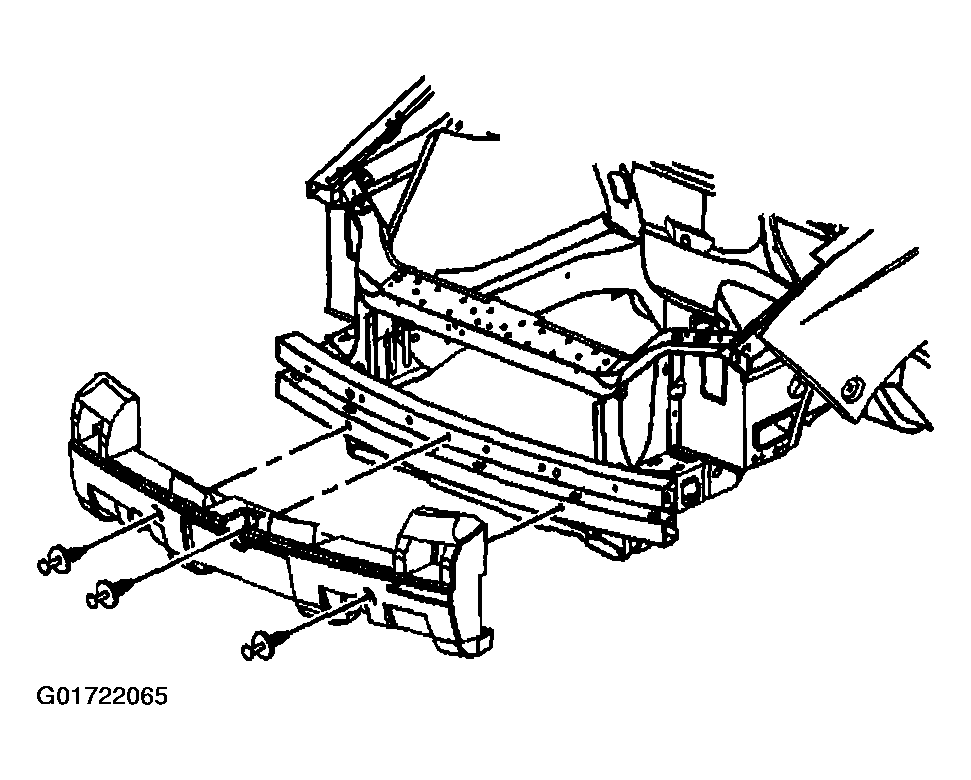

    Fig 2: Installing Push-In Retainers To Front Bumper Energy Absorber
    G01722065Courtesy of GENERAL MOTORS CORP.
