Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT  .
  3. Start at the center of the weather-strip and pull the weather-strip forward and off of the pinch-weld flange.

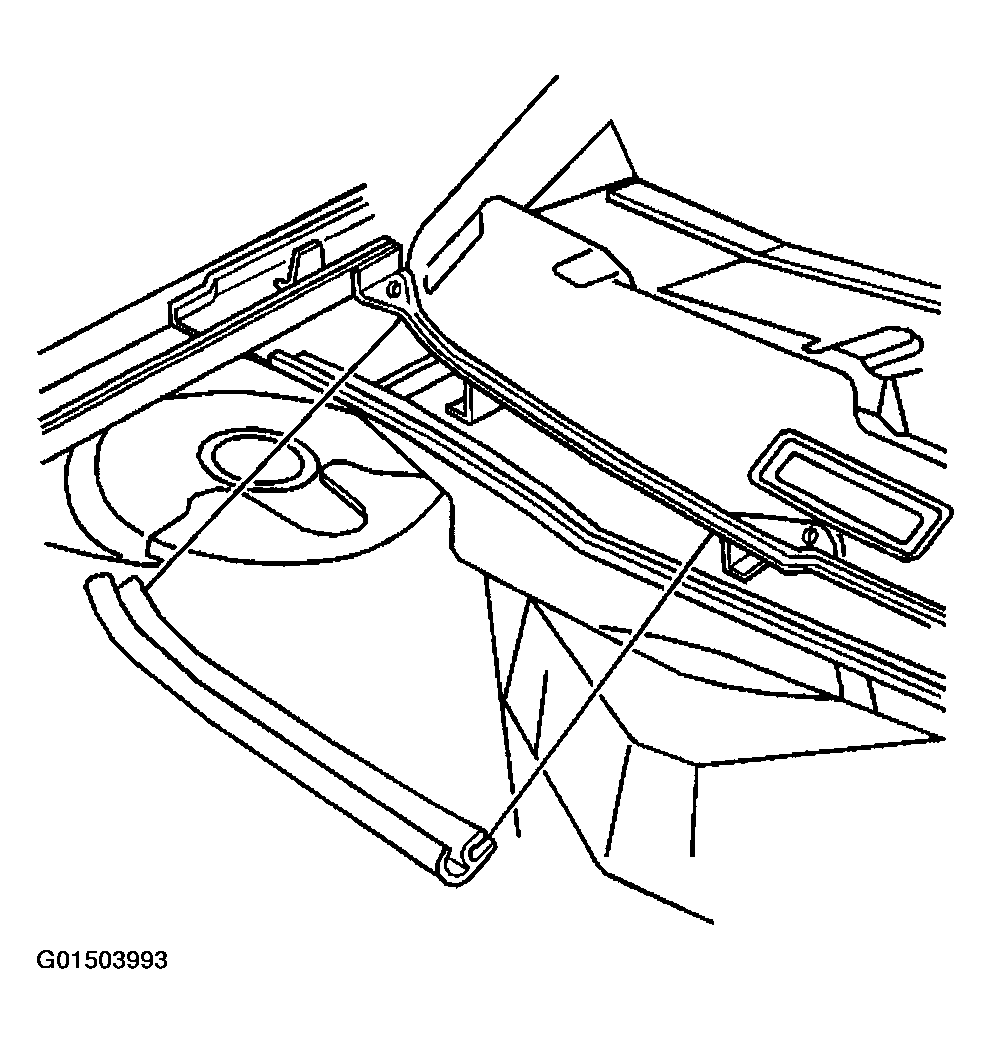

    Fig 1: Removing Plenum Chamber Water Deflector
    G01503993Courtesy of GENERAL MOTORS CORP.
