Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood hinge to the fender.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the hood hinge to the fender bolts.

    Tighten

    Tighten the hood hinge to fender bolts to 25 N.m (18 lb ft).

  3. Install the rear hood side seal. Refer to SEAL REPLACEMENT - HOOD REAR SIDE  .
  4. Install the hood assist rod. Refer to ASSIST ROD REPLACEMENT - HOOD  .
  5. Install the hood. Refer to HOOD REPLACEMENT  .
  6. Adjust the hood as required. Refer to HOOD ADJUSTMENT  .

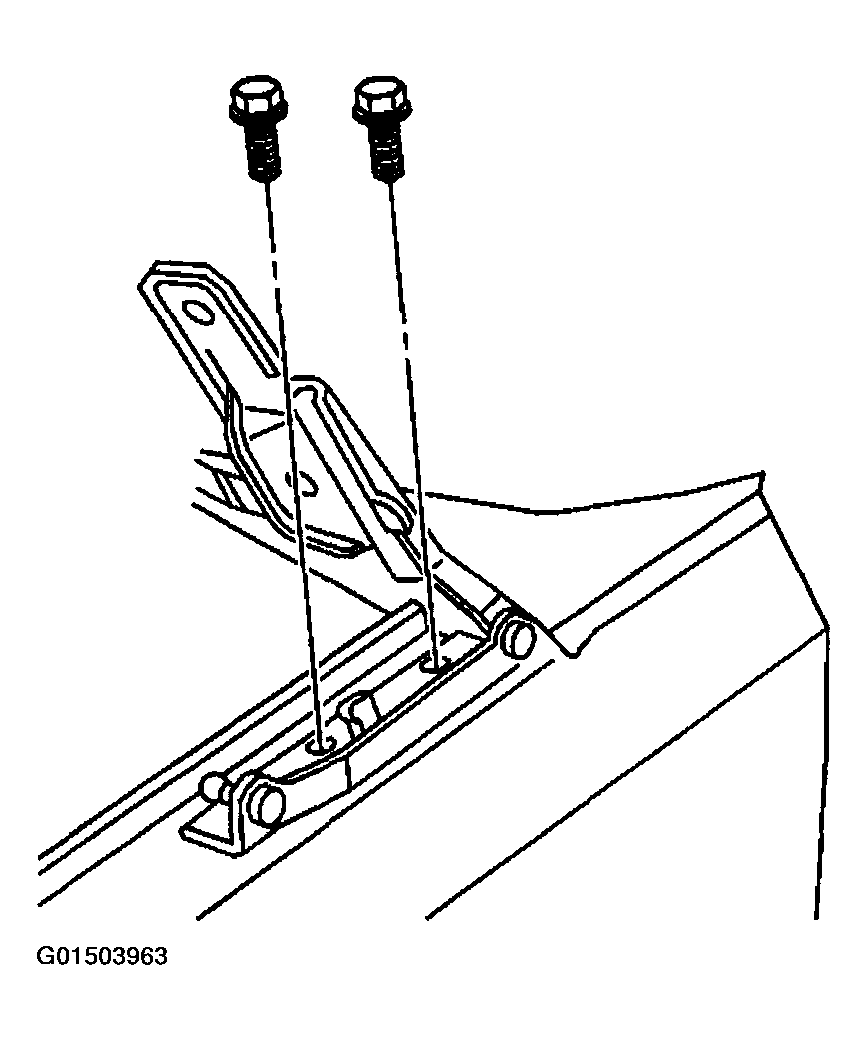

    Fig 1: Installing Hood Hinge To Fender Bolts
    G01503963Courtesy of GENERAL MOTORS CORP.
