Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply tape to panel and adjacent surfaces.
  2. Remove the hood. Refer to HOOD REPLACEMENT  .
  3. Remove the hood hinge. Refer to HOOD HINGE REPLACEMENT  .
  4. Remove the front fender liner. Refer to FRONT FENDER LINER REPLACEMENT  .
  5. Remove the washer solvent container from the right fender. Refer to WASHER SOLVENT CONTAINER REPLACEMENT in Wipers/Washer Systems.
  6. Remove the bolts from the fender at the door hinge pillar.
    Fig 1: Removing Bolts From Fender At Door Hinge Pillar
    G01503983Courtesy of GENERAL MOTORS CORP.
  7. Remove the bolts from the fender at the rocker panel.

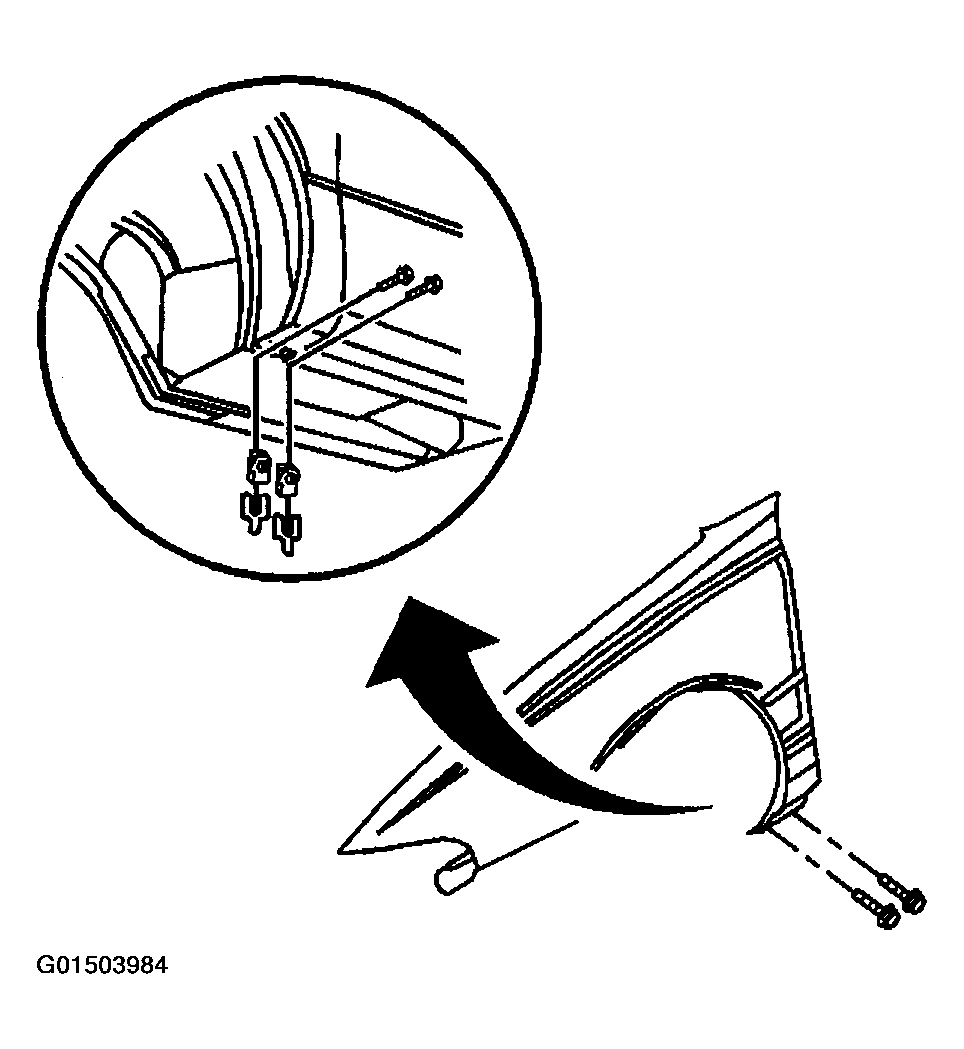

    Fig 2: Removing Bolts From Fender At Rocker Panel
    G01503984Courtesy of GENERAL MOTORS CORP.
  8. Remove the bolts from the fender at the front compartment side rail.

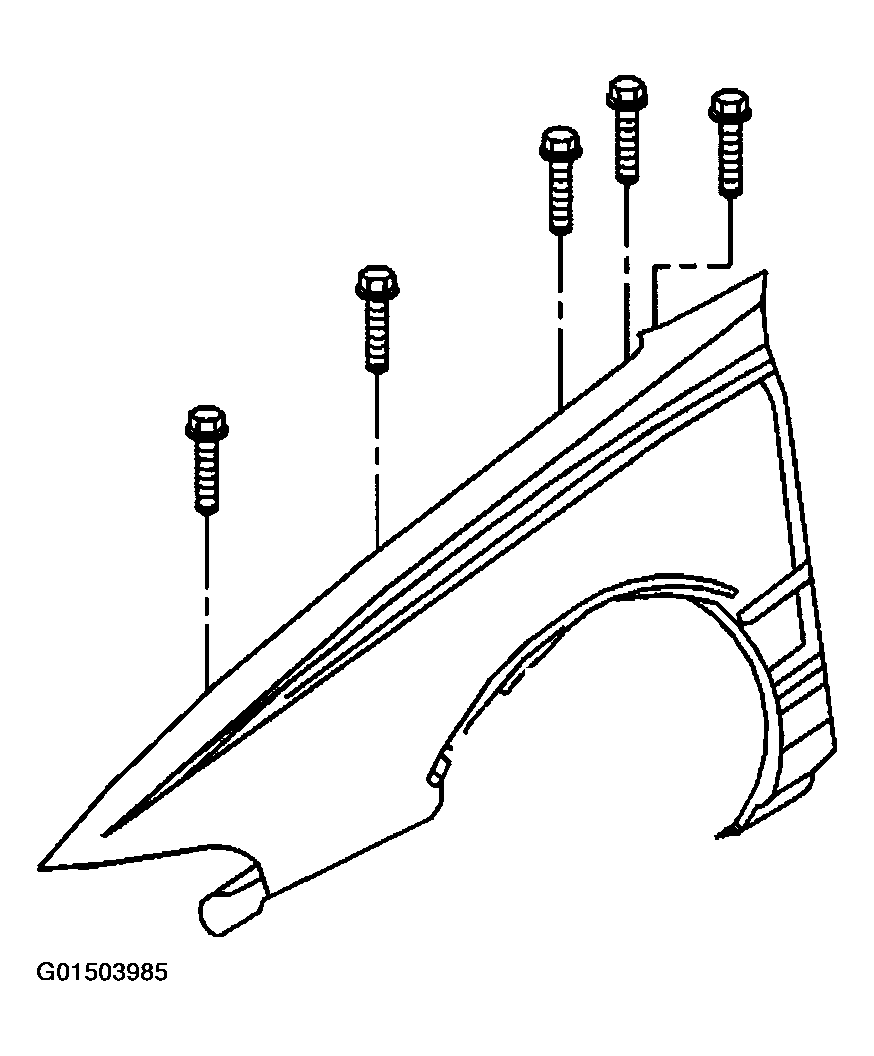

    Fig 3: Removing Bolts From Fender At Front Compartment Side Rail
    G01503985Courtesy of GENERAL MOTORS CORP.
  9. Remove the bolts from the fender at the lower engine compartment side rail.
  10. Remove the fender from the vehicle.

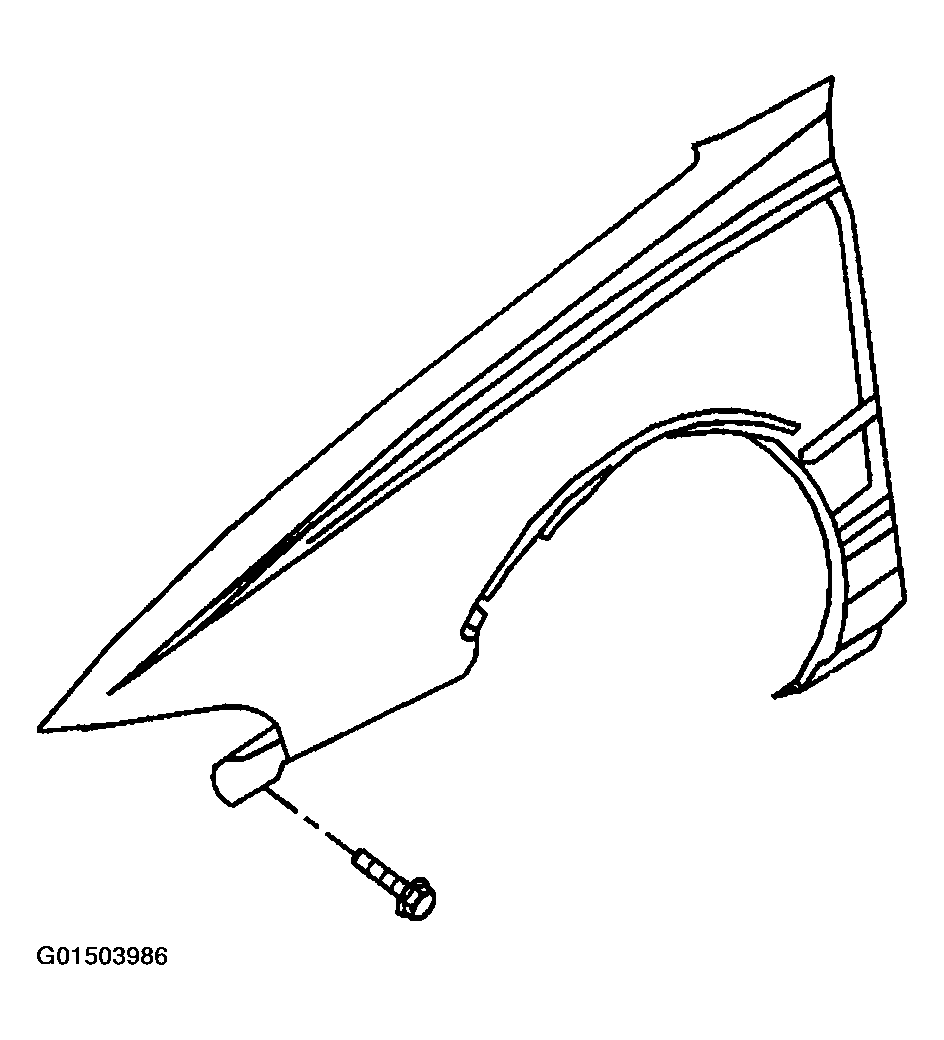

    Fig 4: Removing Bolts From Fender At Lower Engine Compartment Side Rail
    G01503986Courtesy of GENERAL MOTORS CORP.
