Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hub and bearing assembly (1) to the vehicle. Refer to WHEEL BEARING/HUB (REAR) .

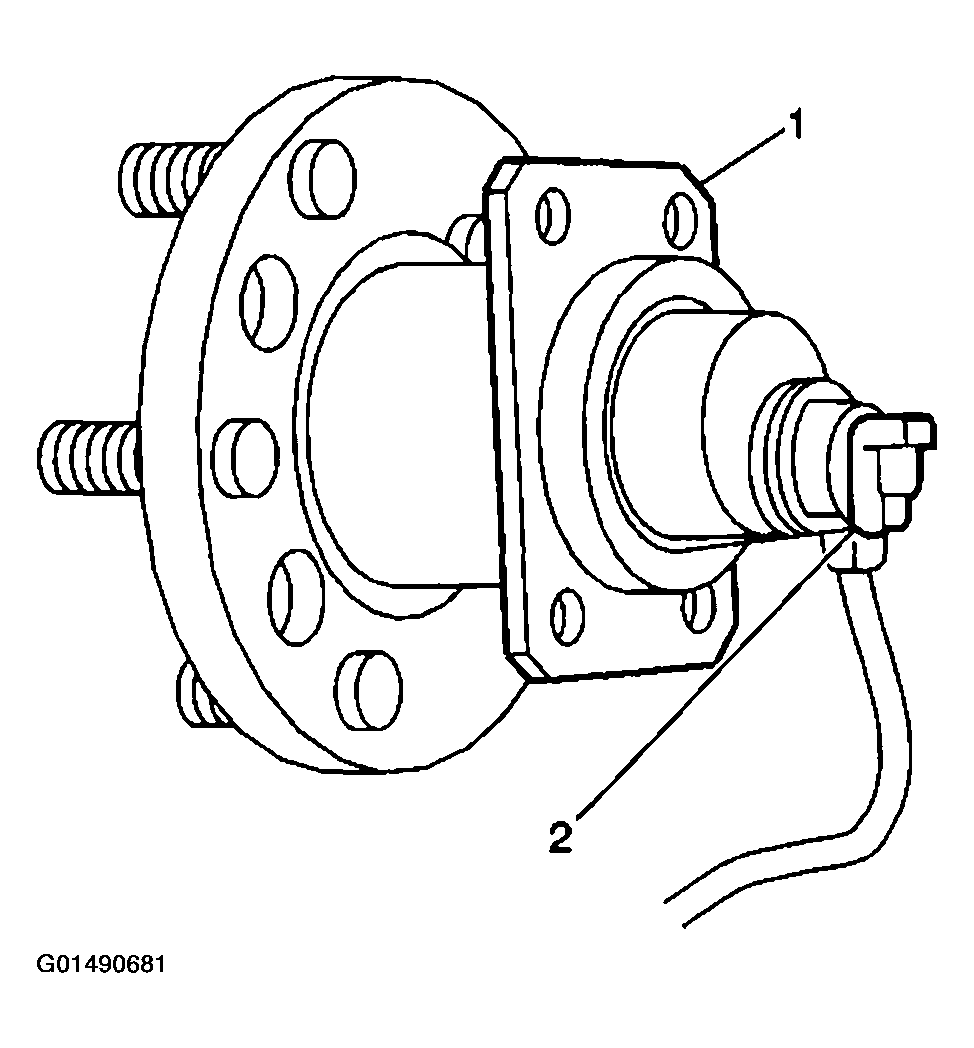

    Fig 1: Installing Hub & Bearing Assembly
    G01490681Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the rear wheel speed sensor.
  3. Install the wheel and tire assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  4. Lower the vehicle.
  5. Turn the ignition switch to the ON position, with the engine off.
  6. Perform the Diagnostic System Check - ABS  .

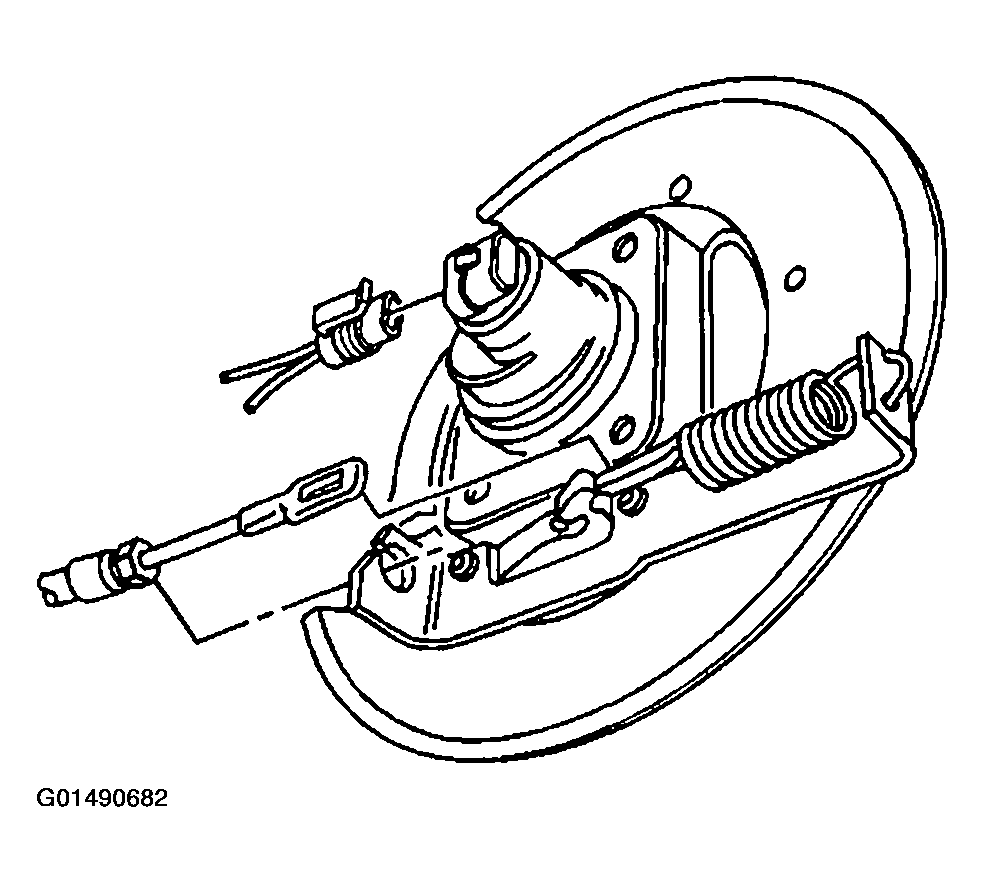

    Fig 2: Connecting Electrical Connector To Rear Wheel Speed Sensor
    G01490682Courtesy of GENERAL MOTORS CORP.
