Activating System

WARNING: This page is about a different car, the 2000 Buick Park Avenue. However, it is still accessible from the selected car via links, so may be relevant.

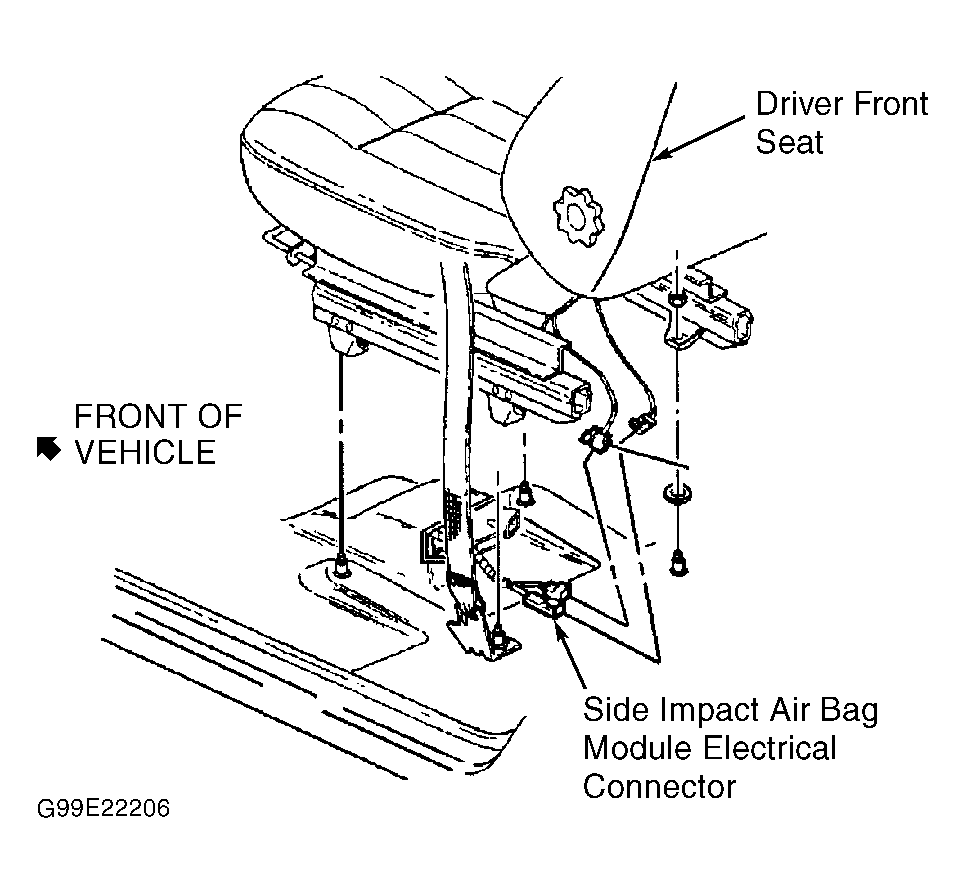

  1. Ensure ignition key is in LOCK position. Connect driver and passenger side impact air bag connectors located under driver and

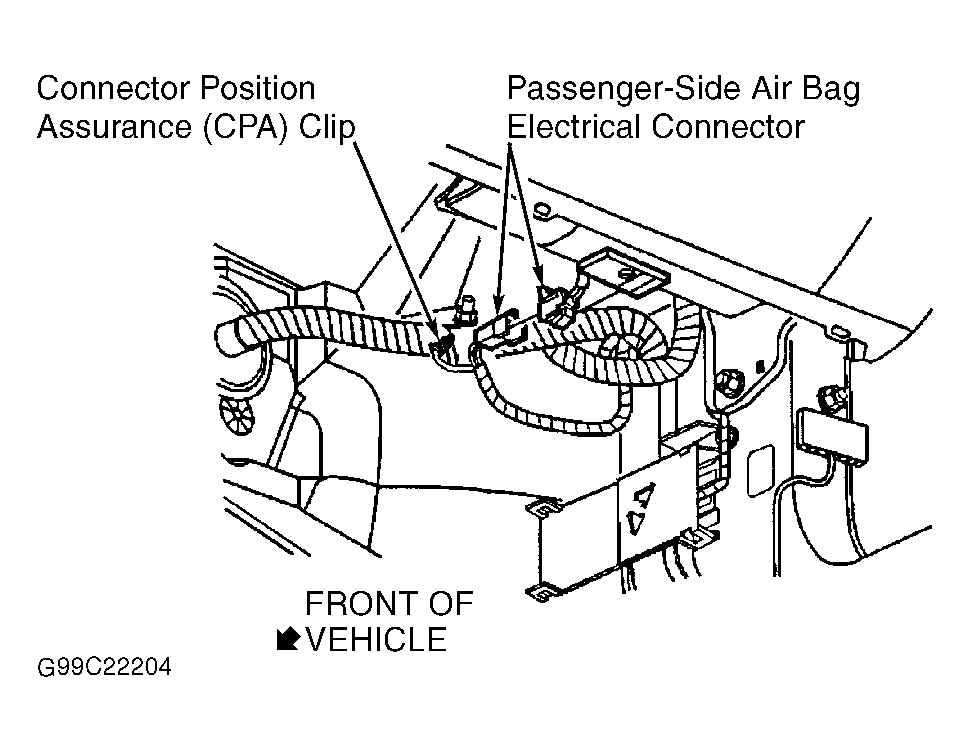

  2. passenger seats. Install Connector Position Assurance (CPA) Clip. See Figure. Connect passenger-side air bag connector and install Connector Position Assurance (CPA) Clip. See Figure. Install knee bolster.

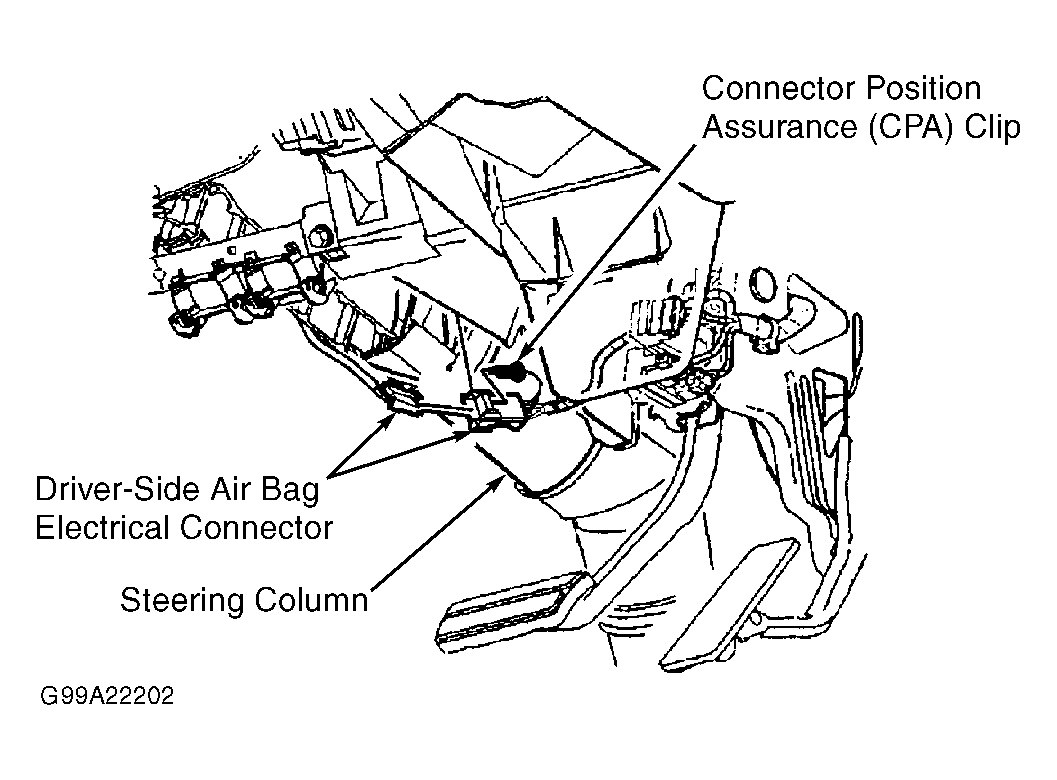

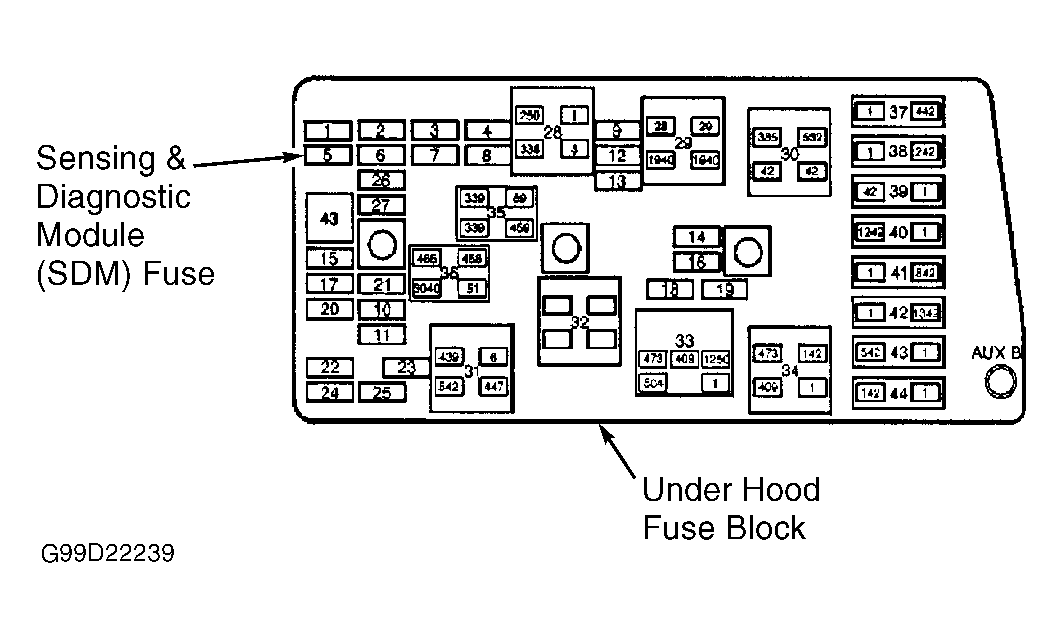

  3. Connect driver-side air bag connector and install Connector Position Assurance (CPA) clip. See Figure. Install knee bolster. Install SIR fuse in fuse block. See Figure. Check system for proper operation. See SYSTEM OPERATION CHECK .
