Centering Coil Assembly

WARNING: This page is about a different car, the 2000 Buick Park Avenue. However, it is still accessible from the selected car via links, so may be relevant.
  1. If coil assembly has been removed from steering column and is being reinstalled, go to next step. New coil assemblies are pre-centered and include a centering tab that is removed once coil is installed.
  2. Hold coil assembly with face upward. While holding coil assembly housing, depress spring lock and rotate hub clockwise until it stops. Rotate coil counter clockwise until centering window turns Yellow and both arrows line up. Release spring lock between locking tabs. See Fig 1.

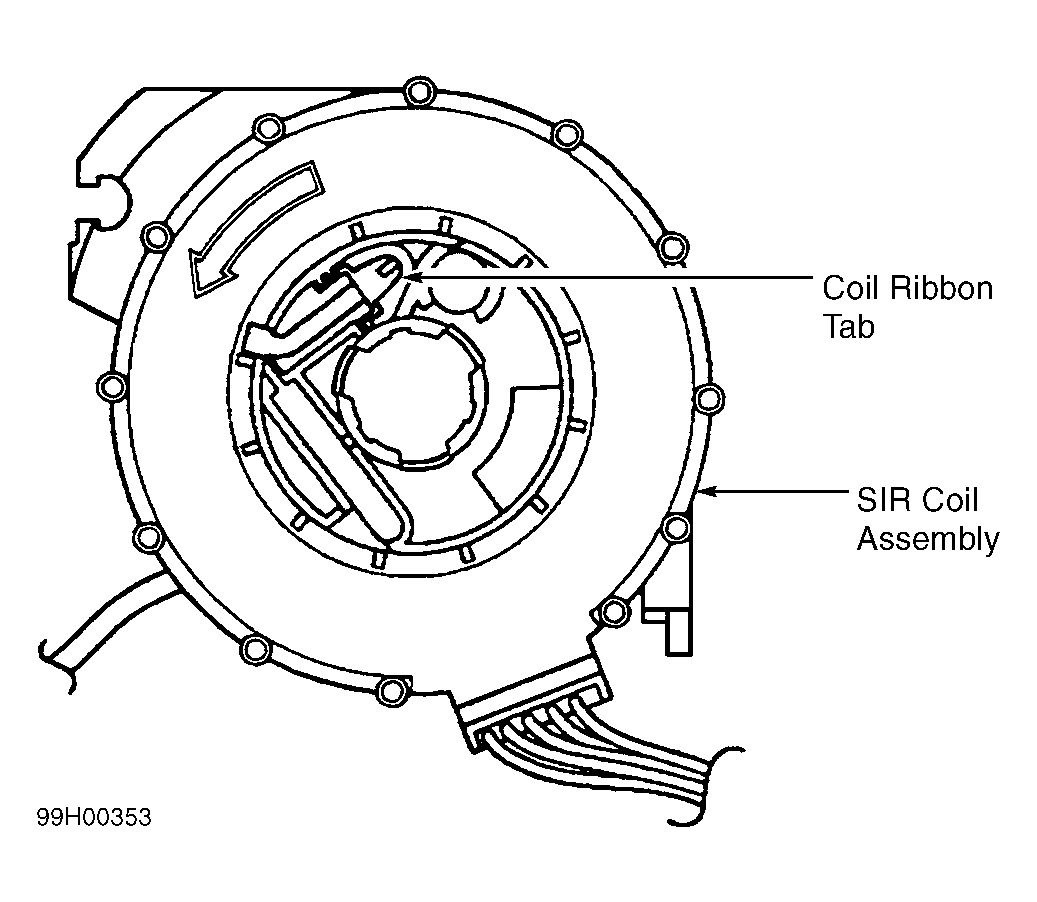

Fig 1: Centering SIR Coil Assembly
G99H00353Courtesy of GENERAL MOTORS CORP.
