Steering Wheel Controls Schematics

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

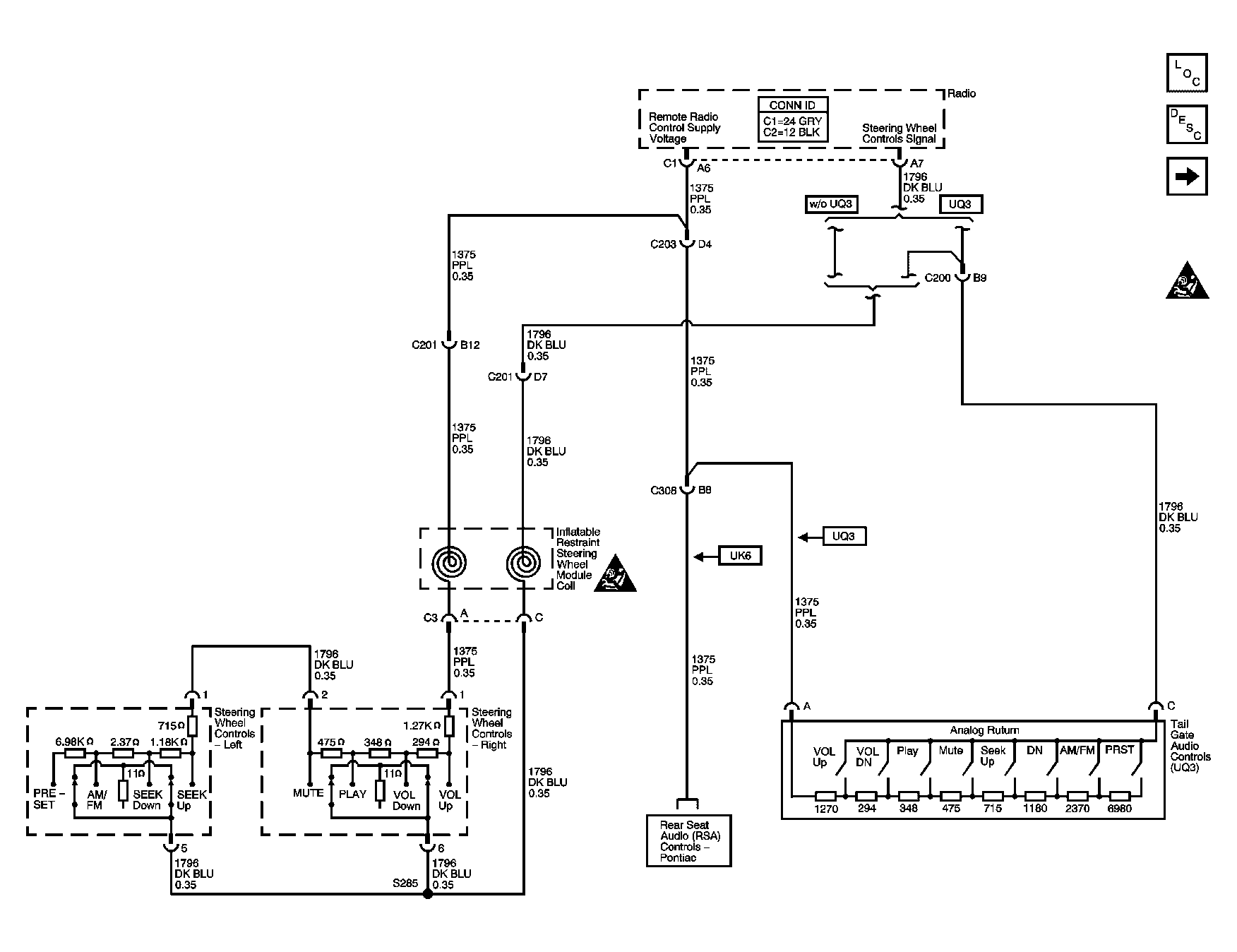

Fig 1: Steering Wheel & Tailgate Controls Schematic - Pontiac

Courtesy of GENERAL MOTORS CORP.

Fig 2: Steering Wheel Controls Schematic - Buick

Courtesy of GENERAL MOTORS CORP.
