Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the rear radio speaker.
  2. Install the rear radio speaker.

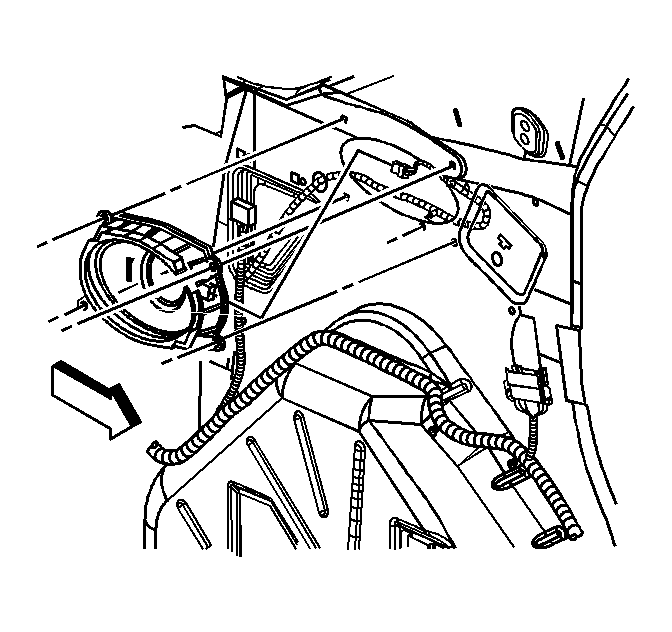

    Fig 1: View Of Rear Speaker Assembly
    GM771782Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the speaker screws.

    Tighten:  Tighten the screws to 3 N.m (28 lb in).

  4. Install the rear quarter trim. Refer to Trim Panel Replacement - Rear Quarter Lower (Aztek) or Trim Panel Replacement - Rear Quarter Lower (Rendezvous) in Interior Trim.
