Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the speaker to the door trim panel assembly.

    Tighten:  Tighten the speaker screws to 3.2 N.m 28 lb in).

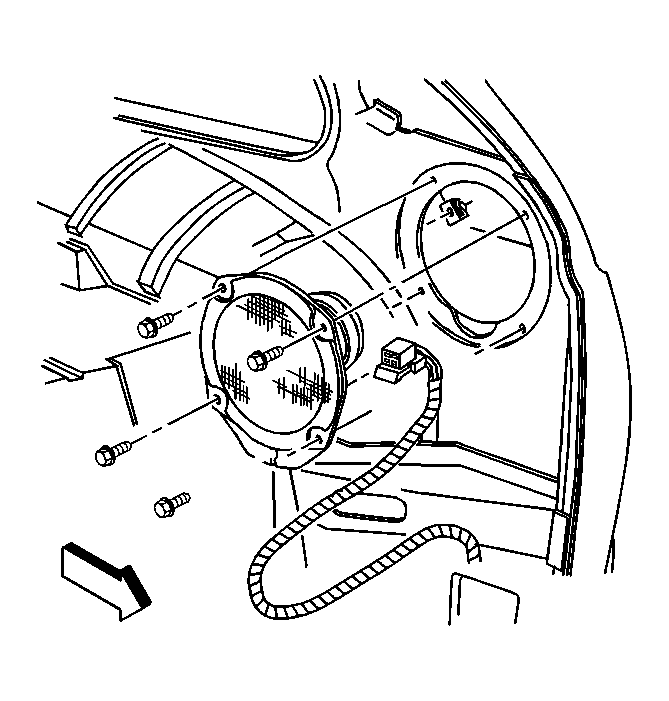

    Fig 1: View Of Speaker Components - Front Upper
    GM535684Courtesy of GENERAL MOTORS CORP.
  2. Connect the wire harness to the speaker.
  3. Install the trim panel assembly to the front door. Refer to Trim Panel Replacement - Side Front Door (Aztek) or Trim Panel Replacement - Side Front Door (Rendezvous) in Doors.
