Seat Back: Installation

  1. Install front seat back onto front seat cushion.
  2. Install wiring harnesses to heated seat and to side air bag through front seat cushion and frame area.
  3. Install back to seat cushion frame.
  4. Install left front bolts to seat back recliner hinge. Tighten bolts to 30 ft lbs. (40 N.m).
  5. Install right front bolts to seat back recliner hinge. Tighten bolts to 30 ft lbs. (40 N.m).
  6. Install recliner cable ends to seat back recliner hinge.
  7. Install outer trim panel to front seat cushion.
  8. Install inner trim panel to front seat cushion.
  9. Inspect seat back for proper operation.
  10. Install front seat.

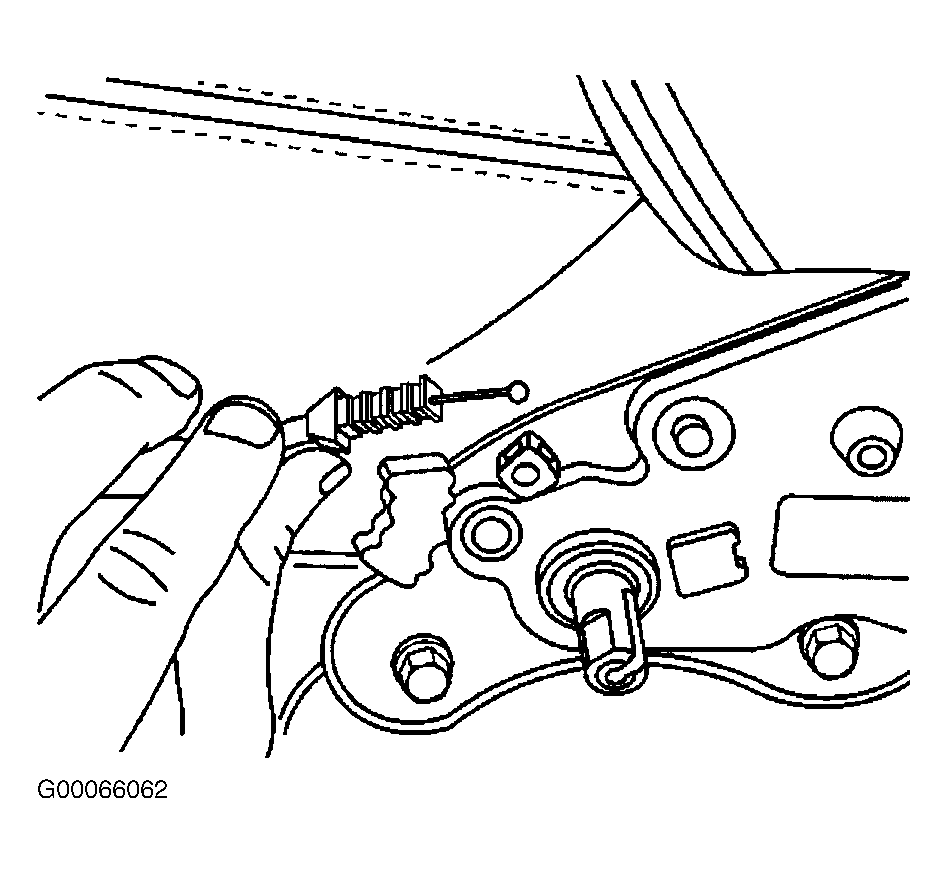

Fig 1: Removing Cable Ends From Seat Back Recliner Hinge
G00066062Courtesy of GENERAL MOTORS CORP.

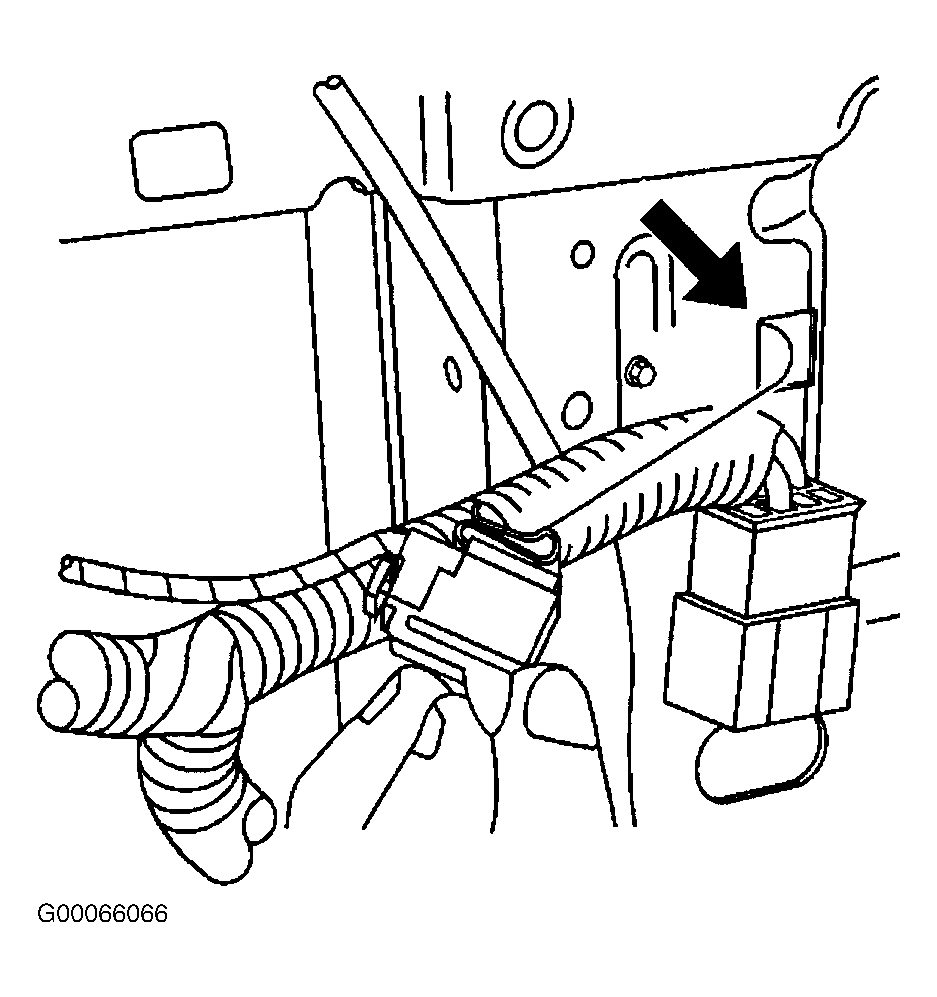

Fig 2: Locating Heated Seat & Air Bag Harness Connectors
G00066066Courtesy of GENERAL MOTORS CORP.

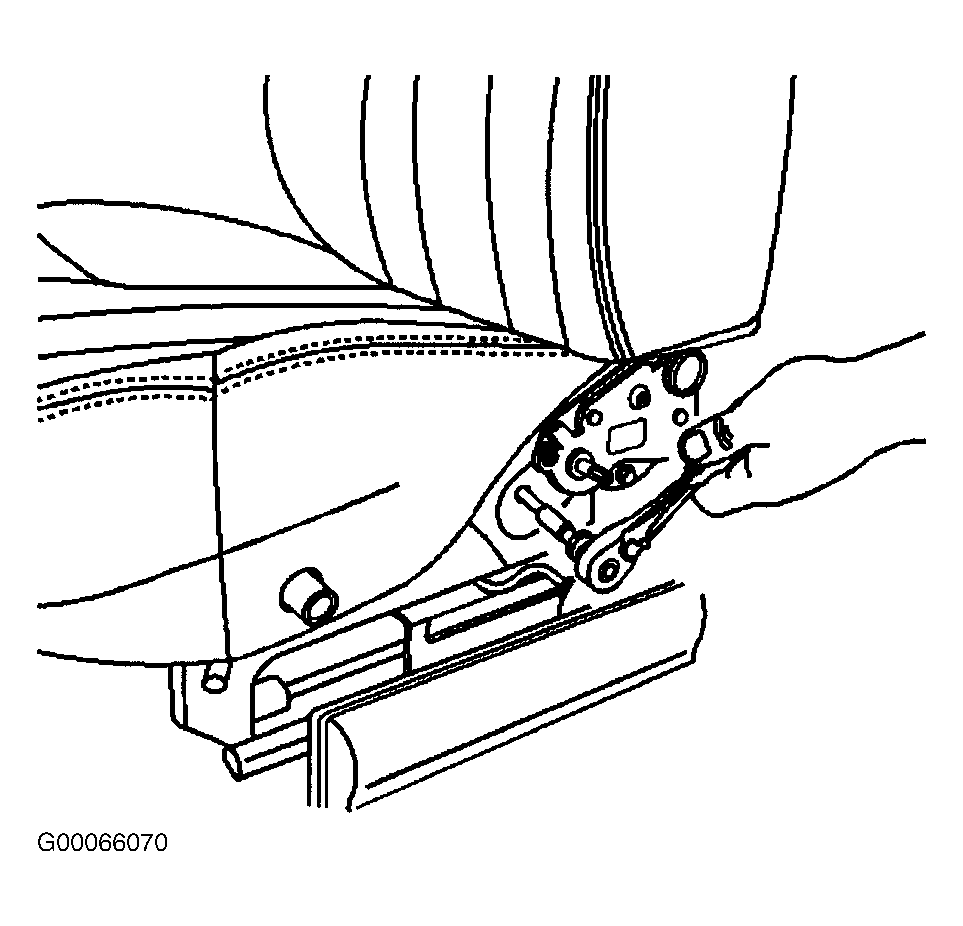

Fig 3: Removing & Installing Bolts From Seat Back Hinge (Left Side Shown Right Is Similar)
G00066070Courtesy of GENERAL MOTORS CORP.
