Power Seat: Installation

  1. Install front seat to studs on floor pan.
  2. Connect seat harness connectors.
  3. Install nuts to seat floor pan studs. See Fig 1 . Tighten front seat adjuster-to-floor pan nuts to 37 ft lbs. (50 N.m).
  4. Inspect front seat for proper operation and adjustment.
  5. Enable air bag system. See appropriate AIR BAG RESTRAINT SYSTEMS article.

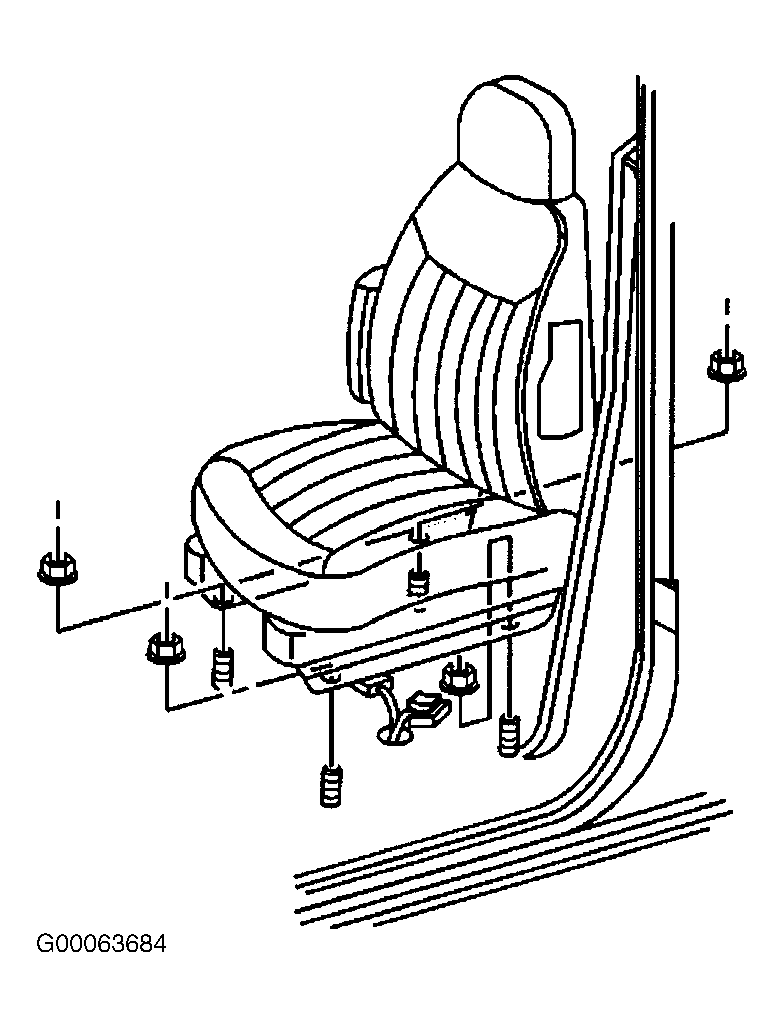

Fig 1: Locating Power Seat Fasteners & Studs
G00063684Courtesy of GENERAL MOTORS CORP.
