Cruise Control Cable: Installation

NOTE: Ensure that CCM strap is not twisted during installation of cable.
  1. Install cable to CCM band. See Fig 2 .
  2. Install cable to CCM.
    3. NOTE: The adjuster tab must be pointing toward front of car after installation.
  3. Install cable to throttle lever and accelerator control cable bracket. See Fig 1 .
  4. Adjust cruise control cable. See CRUISE CONTROL CABLE  under ADJUSTMENTS.

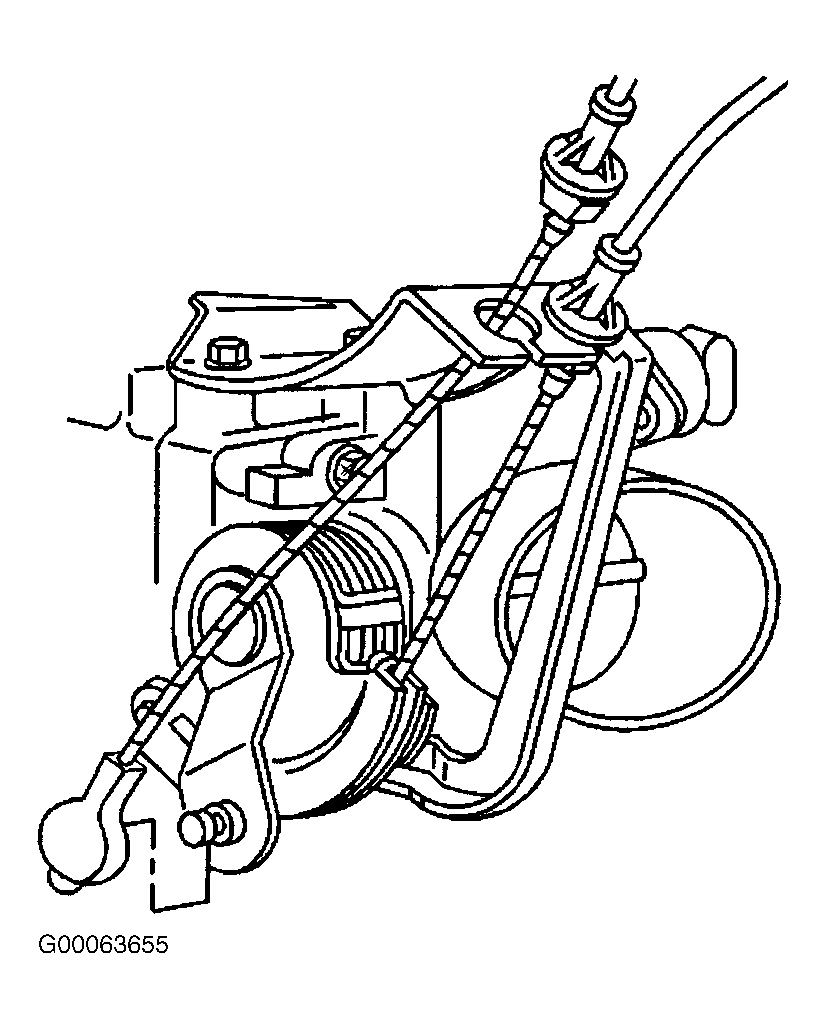

Fig 1: Removing & Installing Cruise Control Cable From Throttle Body
G00063655Courtesy of GENERAL MOTORS CORP.
Fig 2: Removing & Installing Cruise Control Cable From Cruise Control Module
G00063659Courtesy of GENERAL MOTORS CORP.
