Cruise Control Release/Brake Light Switch

CAUTION: Proper brakelight switch adjustment is essential. Improper brakelight switch adjustment may cause brake drag, heat buildup and excessive brake lining wear.

NOTE: Adjust brakelight switch and cruise control release at same time. Adjustment procedures for brakelight switch and cruise control release switch are identical.

1. Insert brakelight switch and cruise control switch if equipped into brake pedal bracket (2). See Fig 1 .
2. Install brakelight switch and cruise control switch if equipped into slotted grooves until switches are fully depressed against brake pedal, then turn switches clockwise approximately 1/4 turn, switches should now be installed and adjusted. See Fig 2 .
3. Inspect brakelights and cruise control for proper operation.

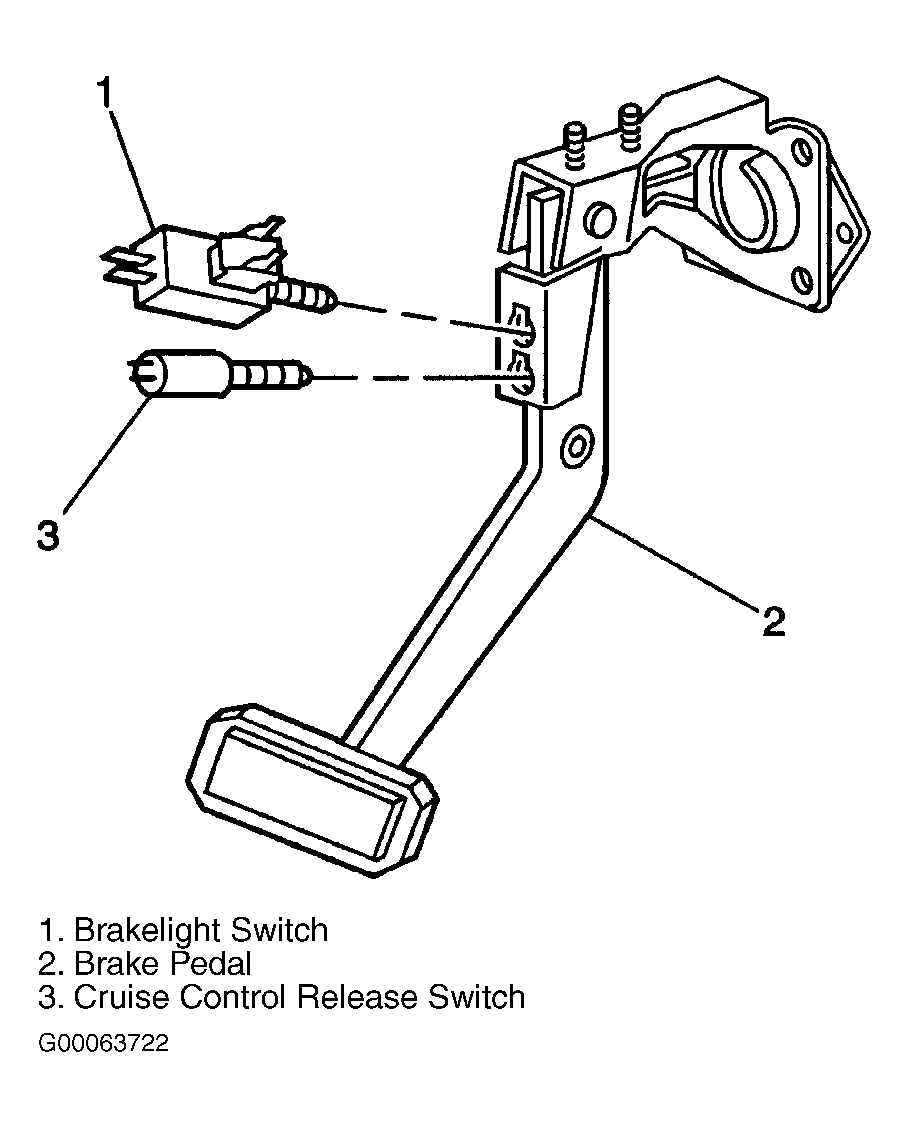

Fig 1: Removing & Installing Brakelight & Cruise Control Switches

Courtesy of GENERAL MOTORS CORP.

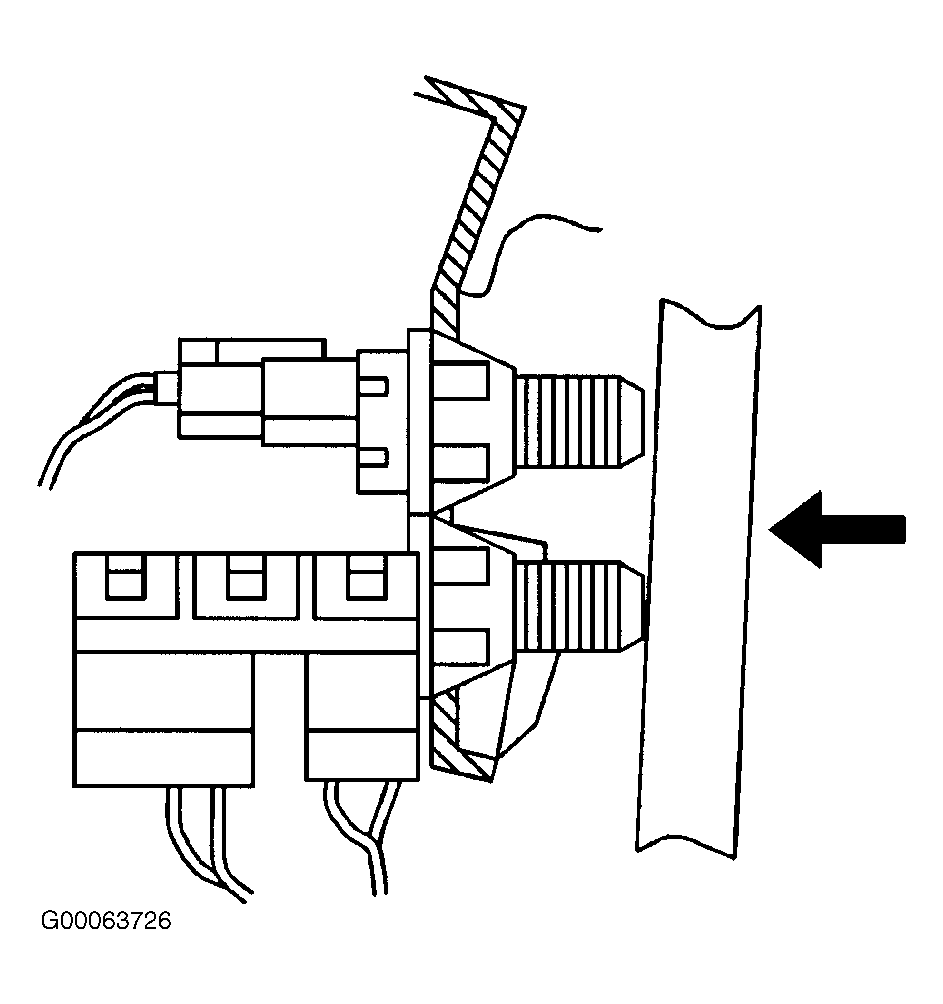

Fig 2: Check Brakelight & Cruise Control Switch Adjustment

Courtesy of GENERAL MOTORS CORP.
