Wiper Motor Module Assembly: Removal

  1. Remove wiper arms. See WIPER ARMS  .

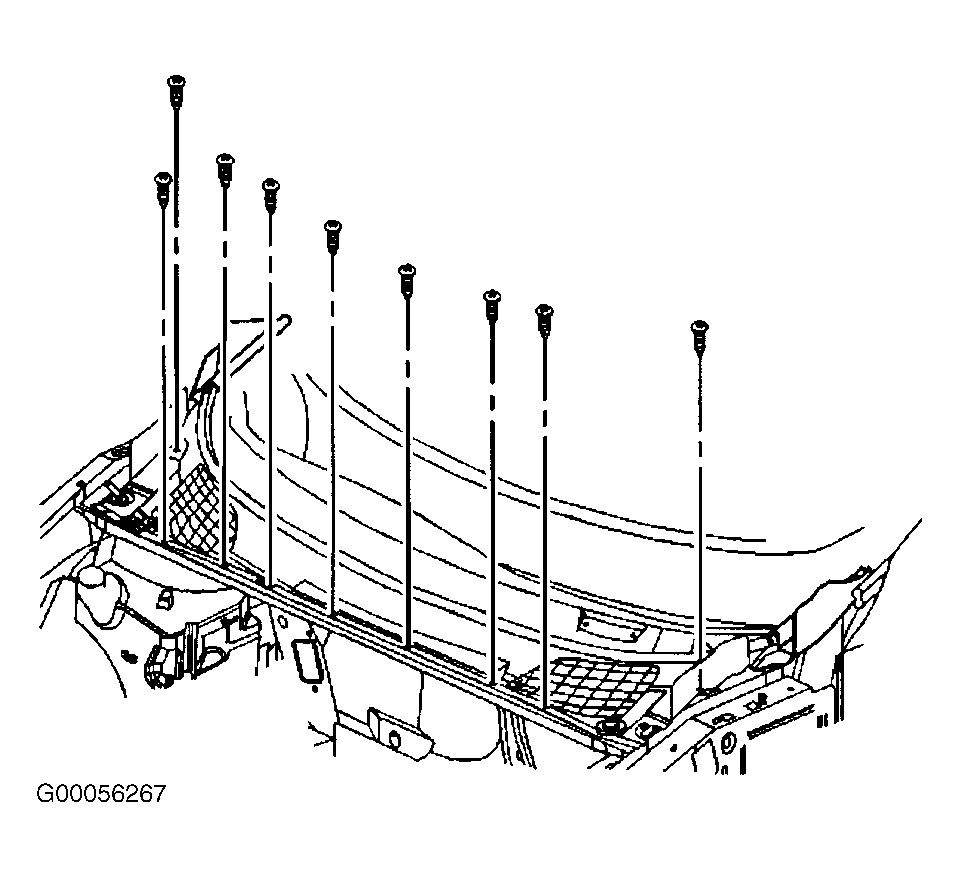

  2. Remove air inlet grille panel. See Figure .
  3. Remove underhood electrical center. See UNDERHOOD ELECTRICAL CENTER under REMOVAL & INSTALLATION in BODY CONTROL MODULES - AZTEK article.
  4. Remove cruise control module. See CRUISE CONTROL MODULE under REMOVAL & INSTALLATION in BODY CONTROL MODULES - AZTEK article.
  5. Disconnect wiper motor cover harness connector.

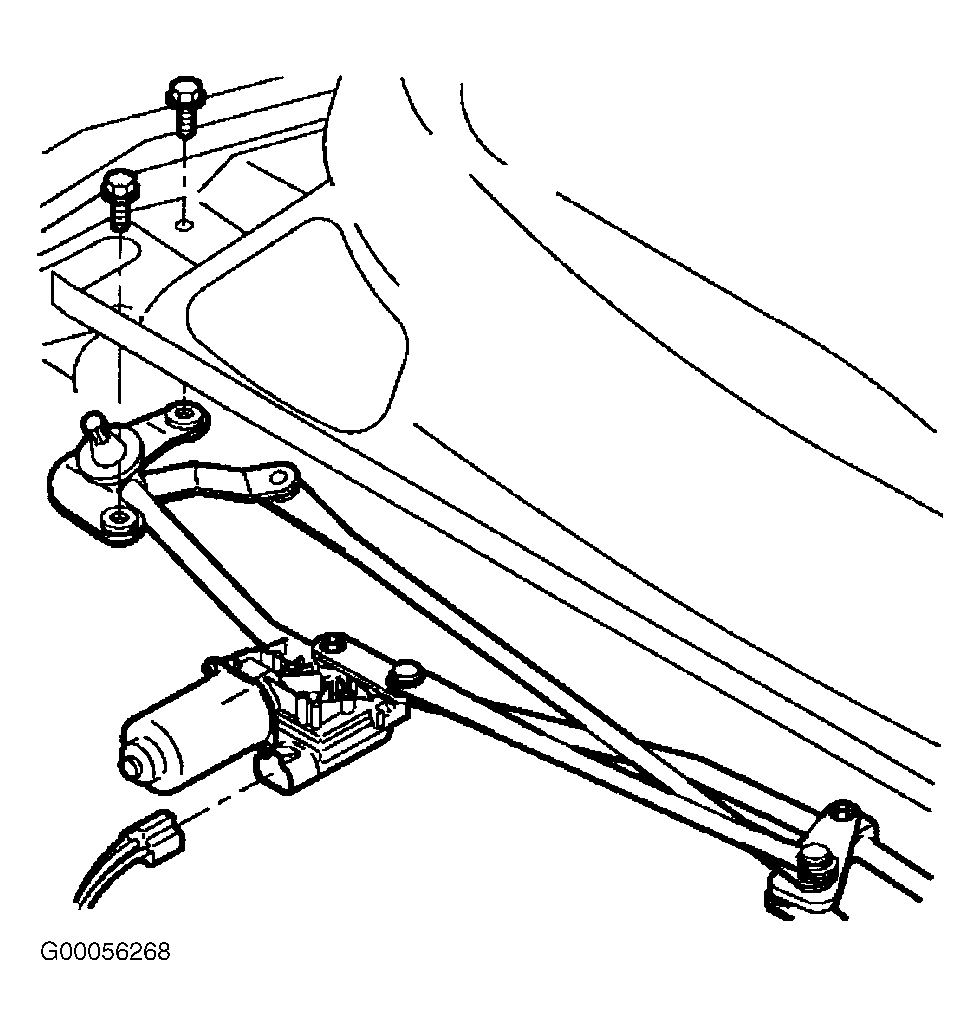

  6. Remove wiper system drive module bolts. See Figure .
  7. Remove wiper system drive module from engine compartment.
