Home >> Pontiac >> 2001 >> Aztek Base, AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Communication Devices >> Body Control Modules >> Diagnostic Tests >> DTC B1440: Power Mode Master Input Circuits Mismatch >> Code Enable Criteria

Code Enable Criteria

Following condition(s) must be met in order for code to set:

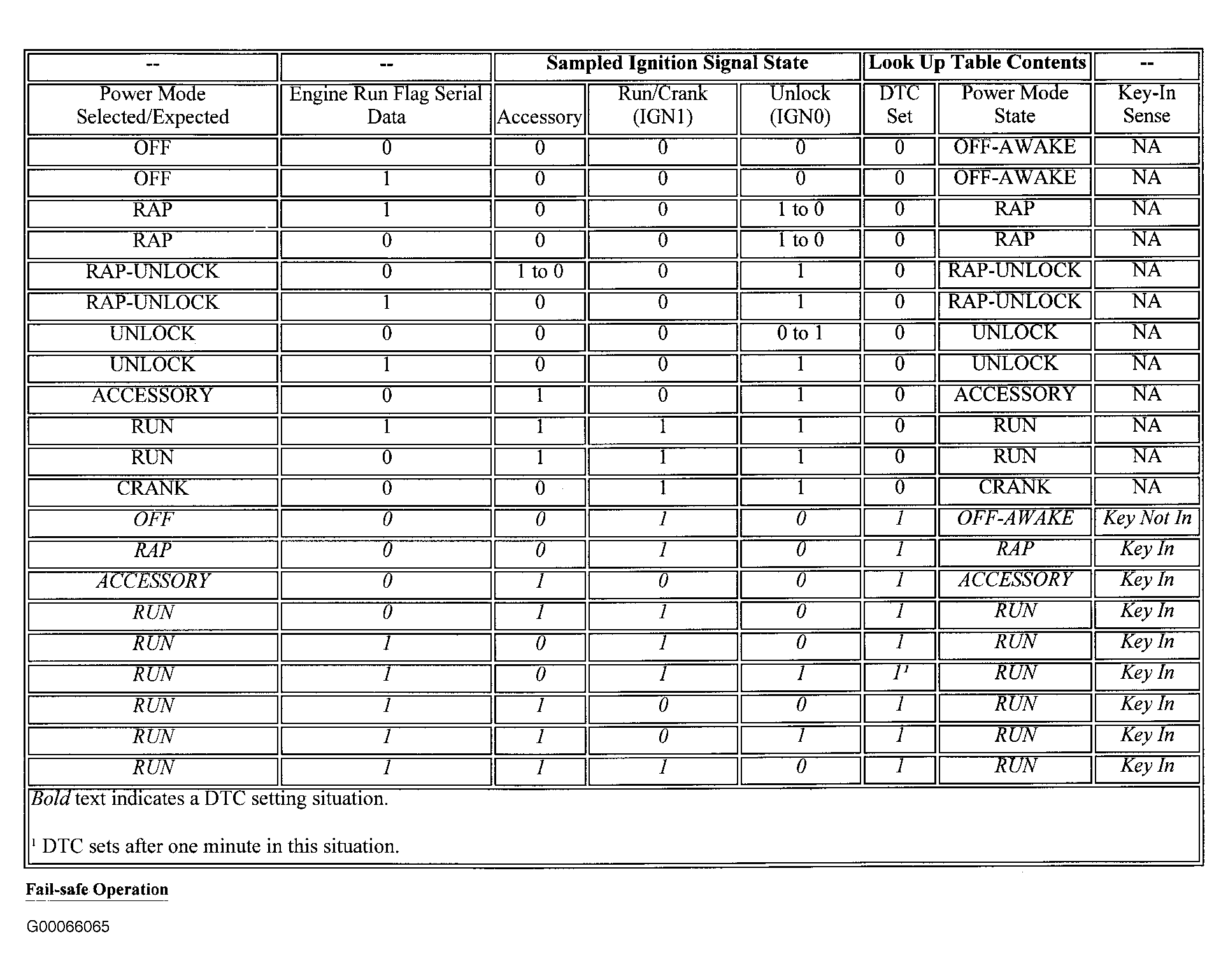

One of three monitored ignition switch circuits has malfunctioned. For circuit identification, see Figure.
