Cellular Communication Connector End Views

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

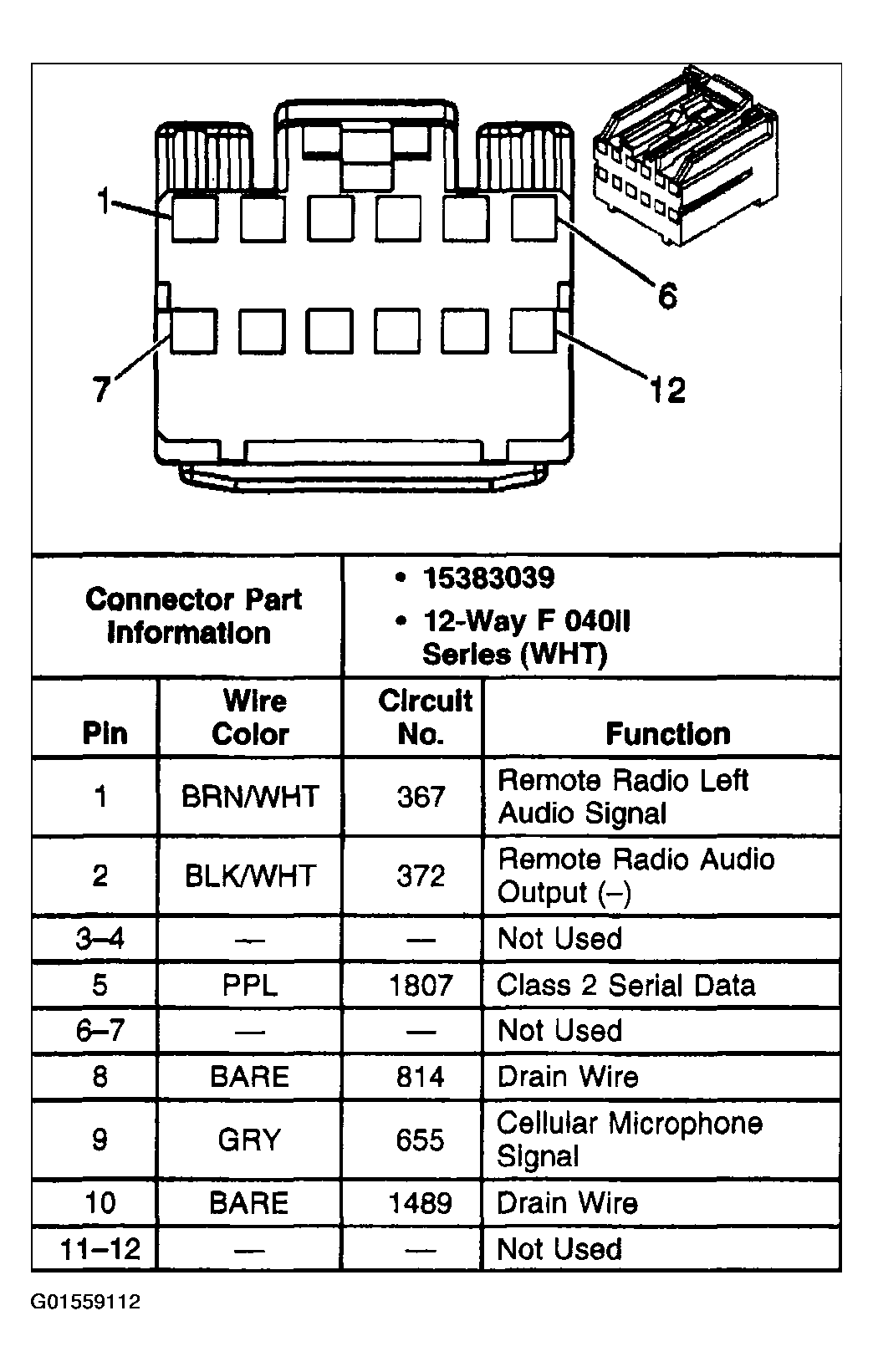

Fig 1: Identifying Vehicle Communications Interface Module (VCIM) C1 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

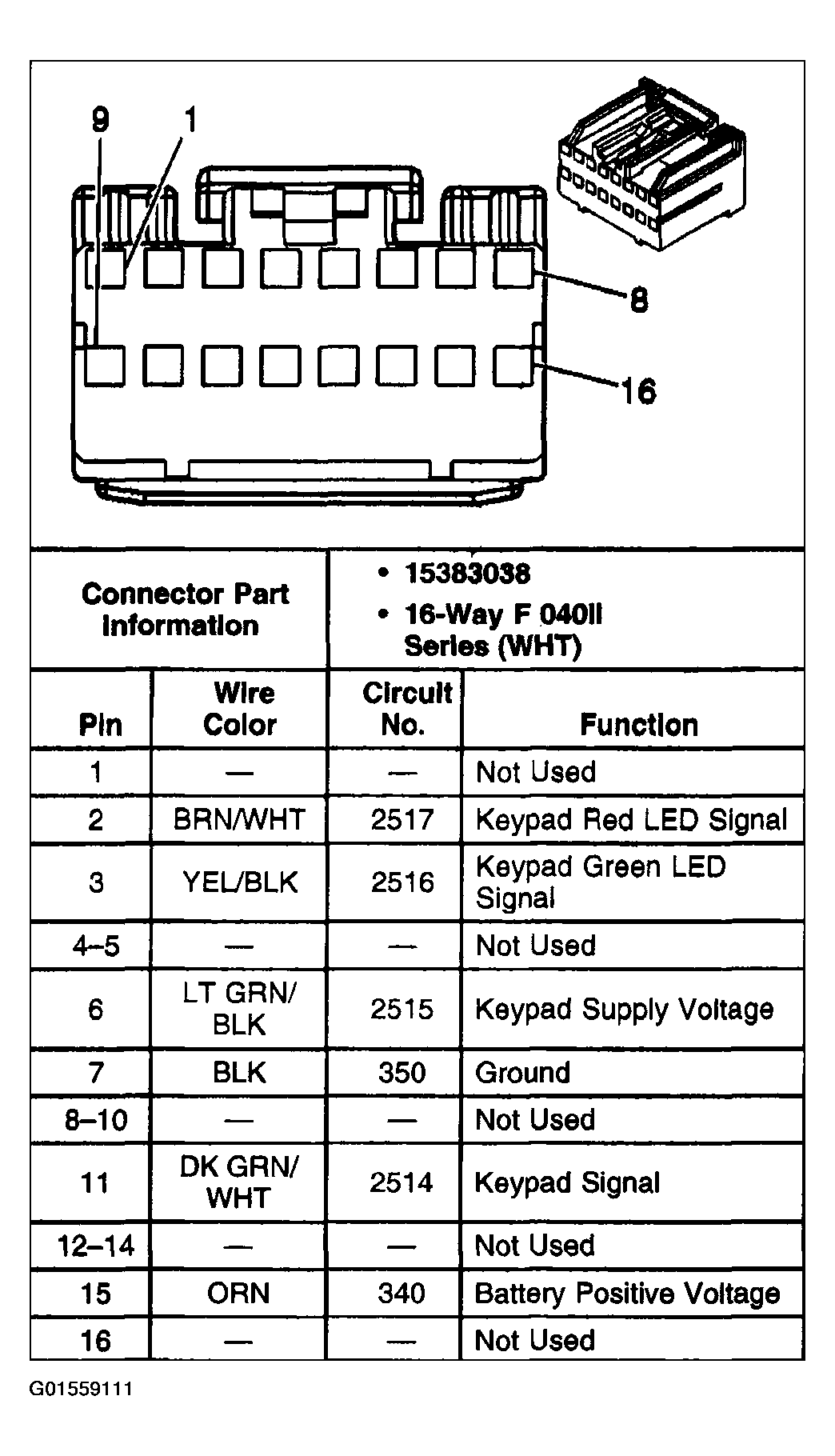

Fig 2: Identifying Vehicle Communications Interface Module (VCIM) C2 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

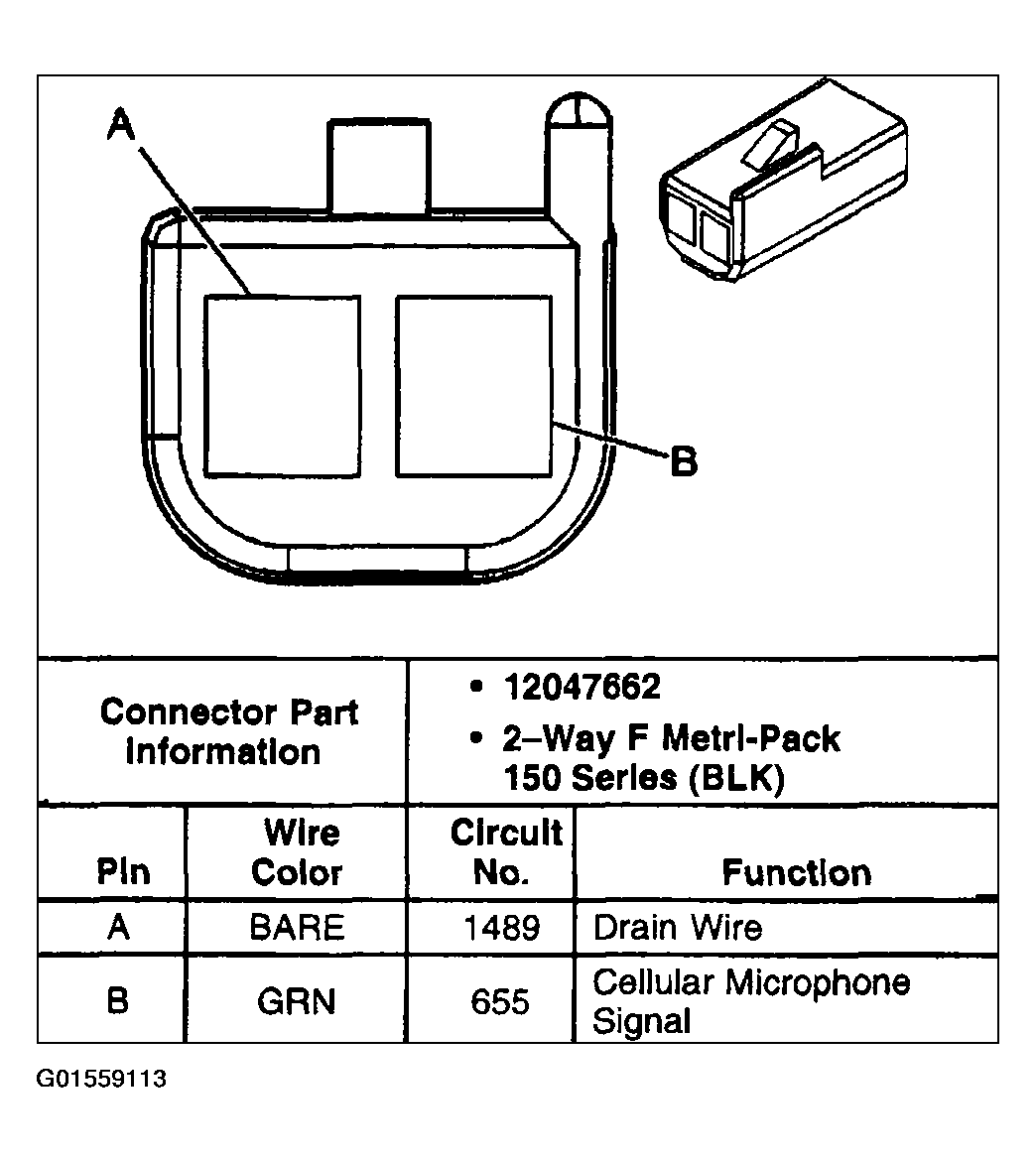

Fig 3: Identifying Cellular Microphone Connector Terminals

Courtesy of GENERAL MOTORS CORP.
