Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Left Side Of Engine (3.1L VIN M)

Fig 2: Right Side Of Engine (3.1L VIN M)

Fig 3: Rear Of Engine (3.1L VIN M)

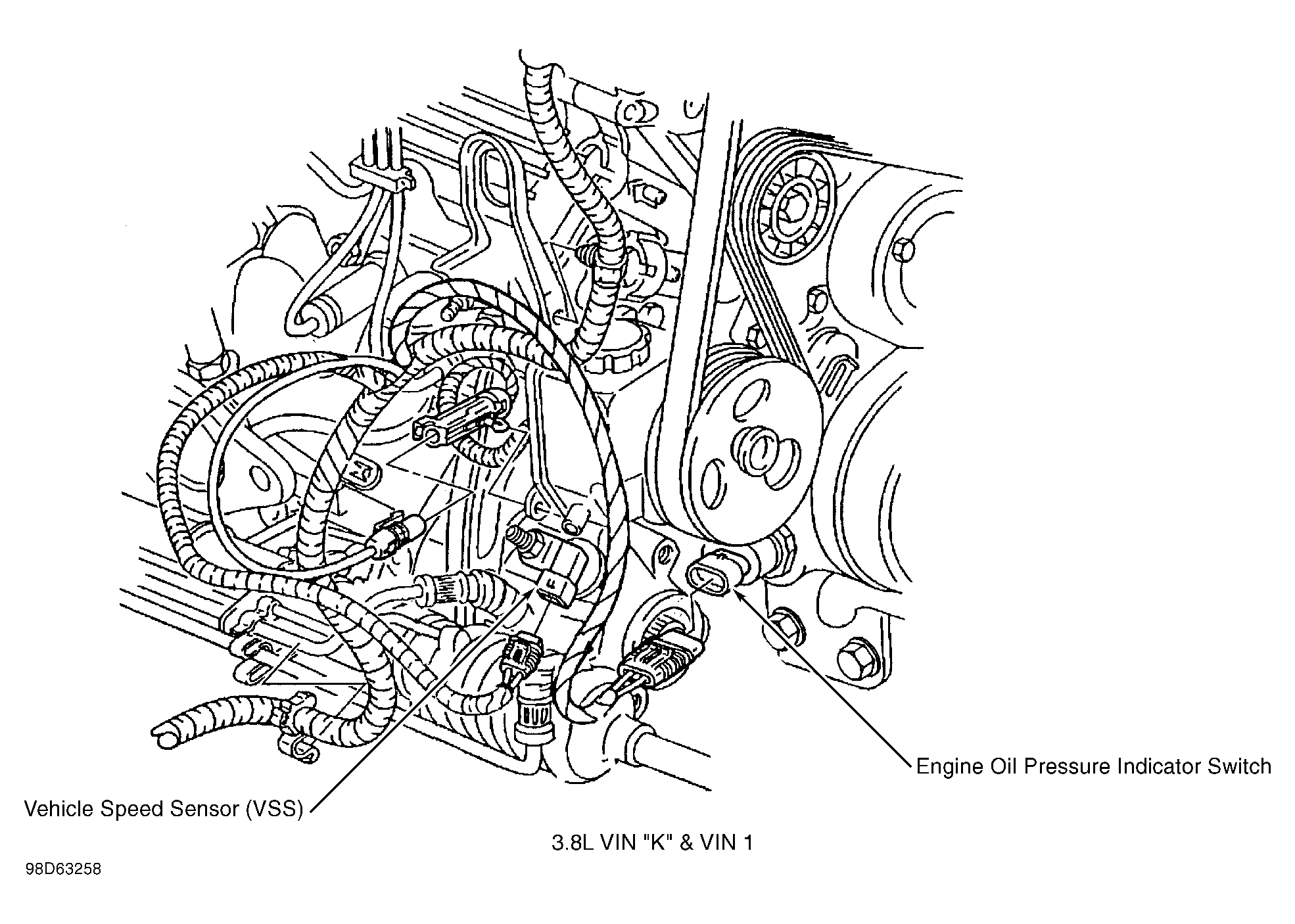

Fig 4: Lower Right Front Of Engine (3.8L VIN K & VIN 1)

Fig 5: Top Of Engine (3.8L VIN K & VIN 1)

Fig 6: Top Left Rear Of Engine (3.8L VIN K & VIN 1)

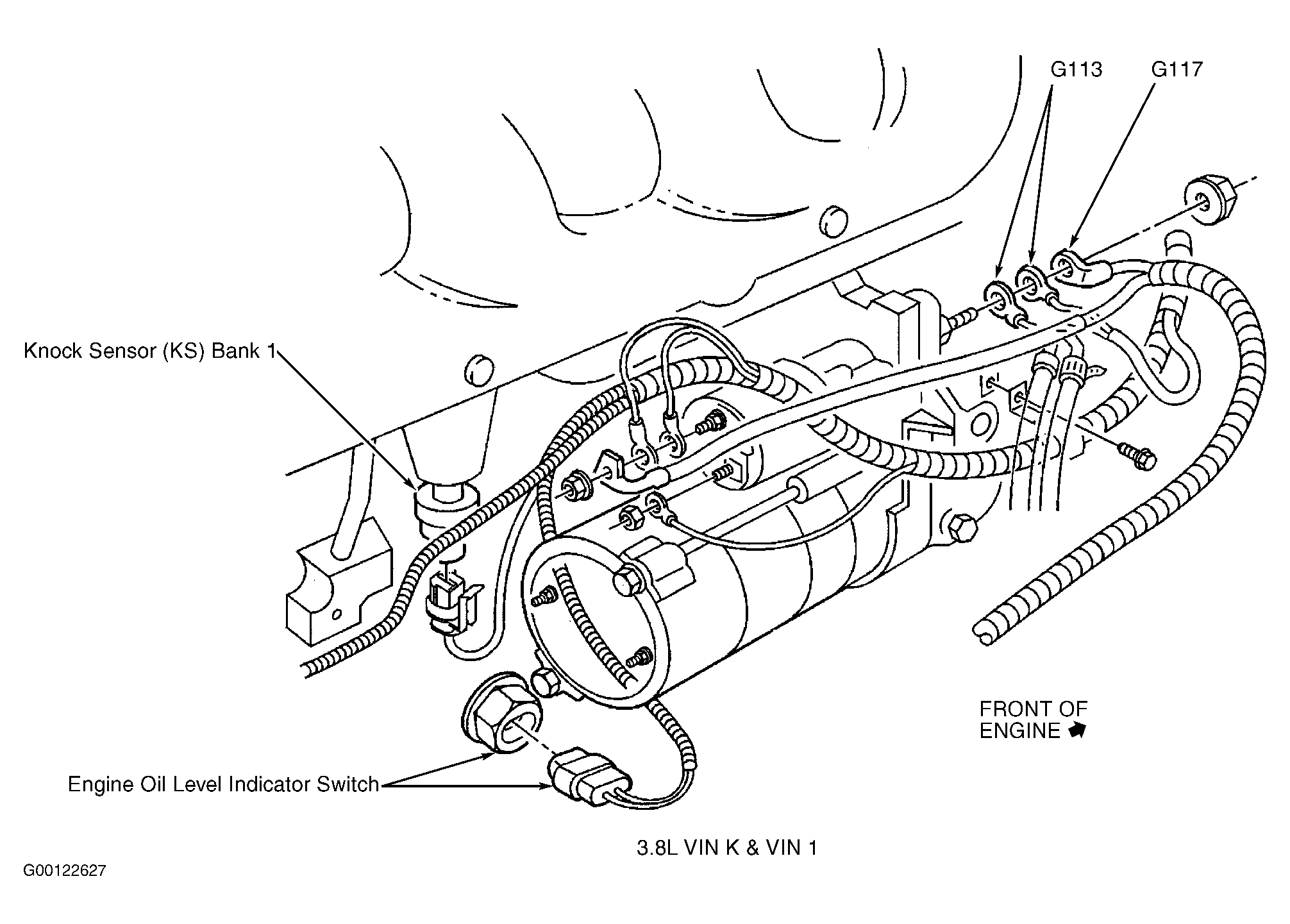

Fig 7: Lower Right Side Of Engine (3.8L VIN K & VIN 1)

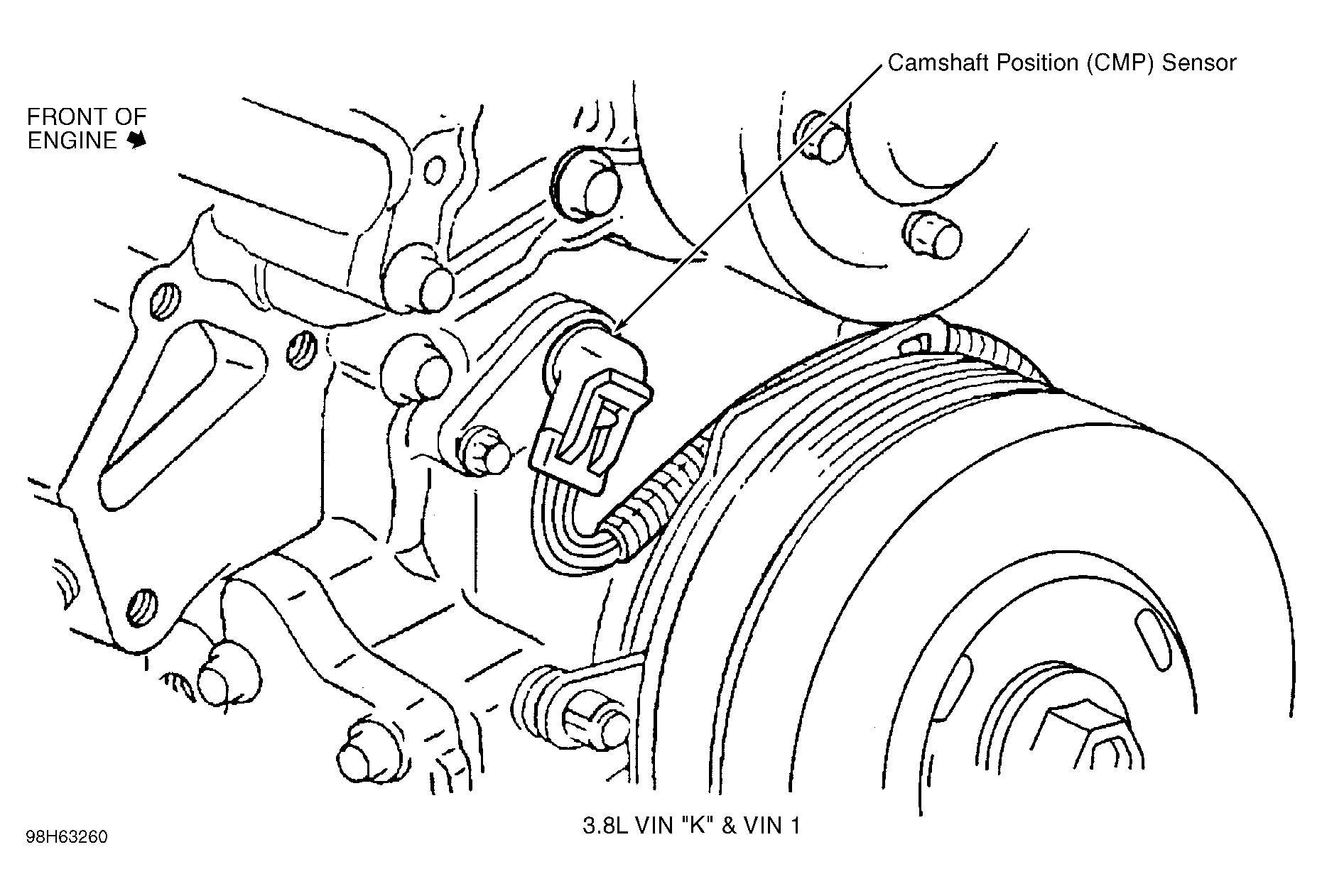

Fig 8: Front Of Engine (3.8L VIN K & VIN 1)

Fig 9: Front Of Engine (3.8L VIN K & VIN 1)

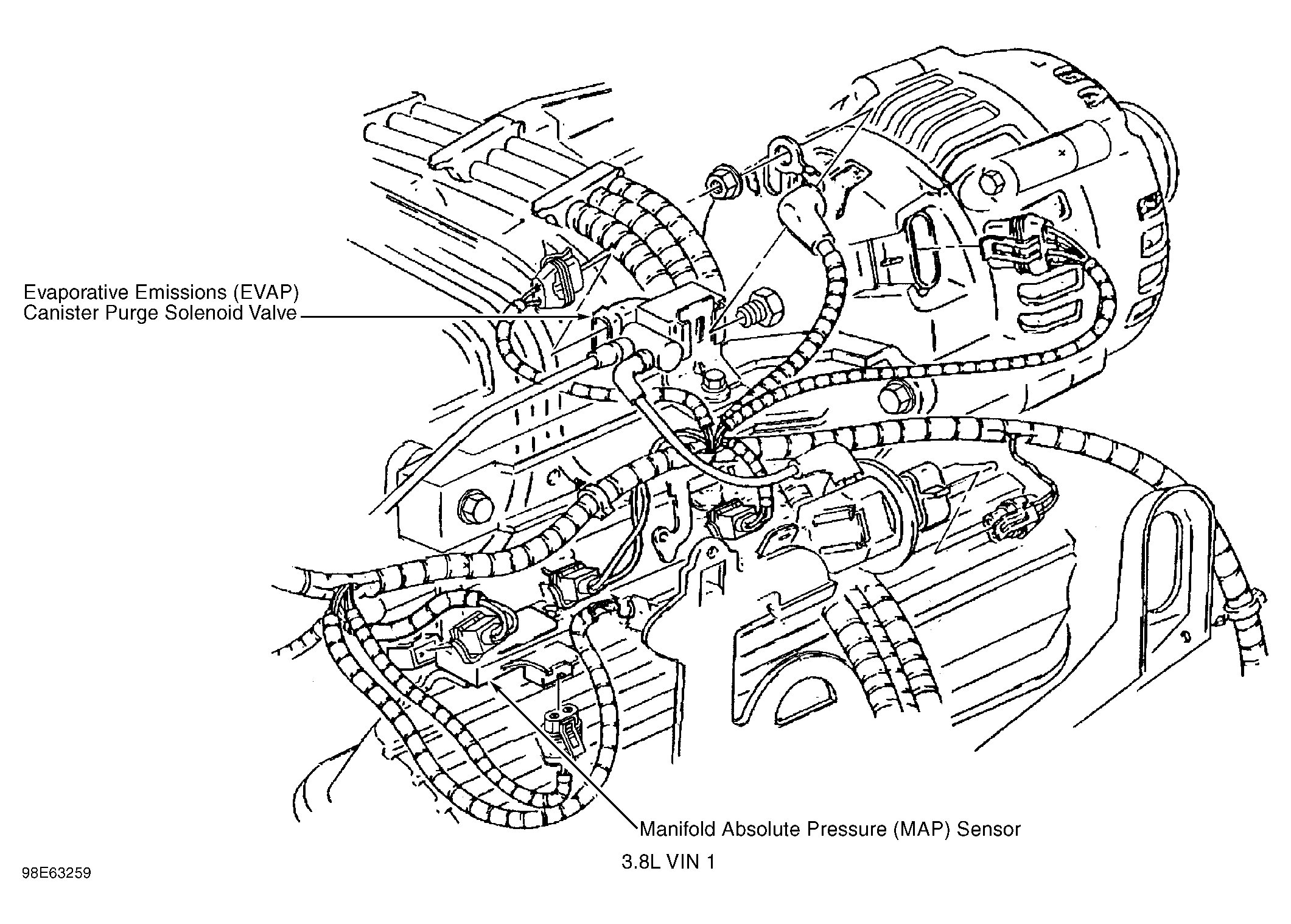

Fig 10: Top Right Side Of Engine (3.8L VIN 1)

Fig 11: Transaxle

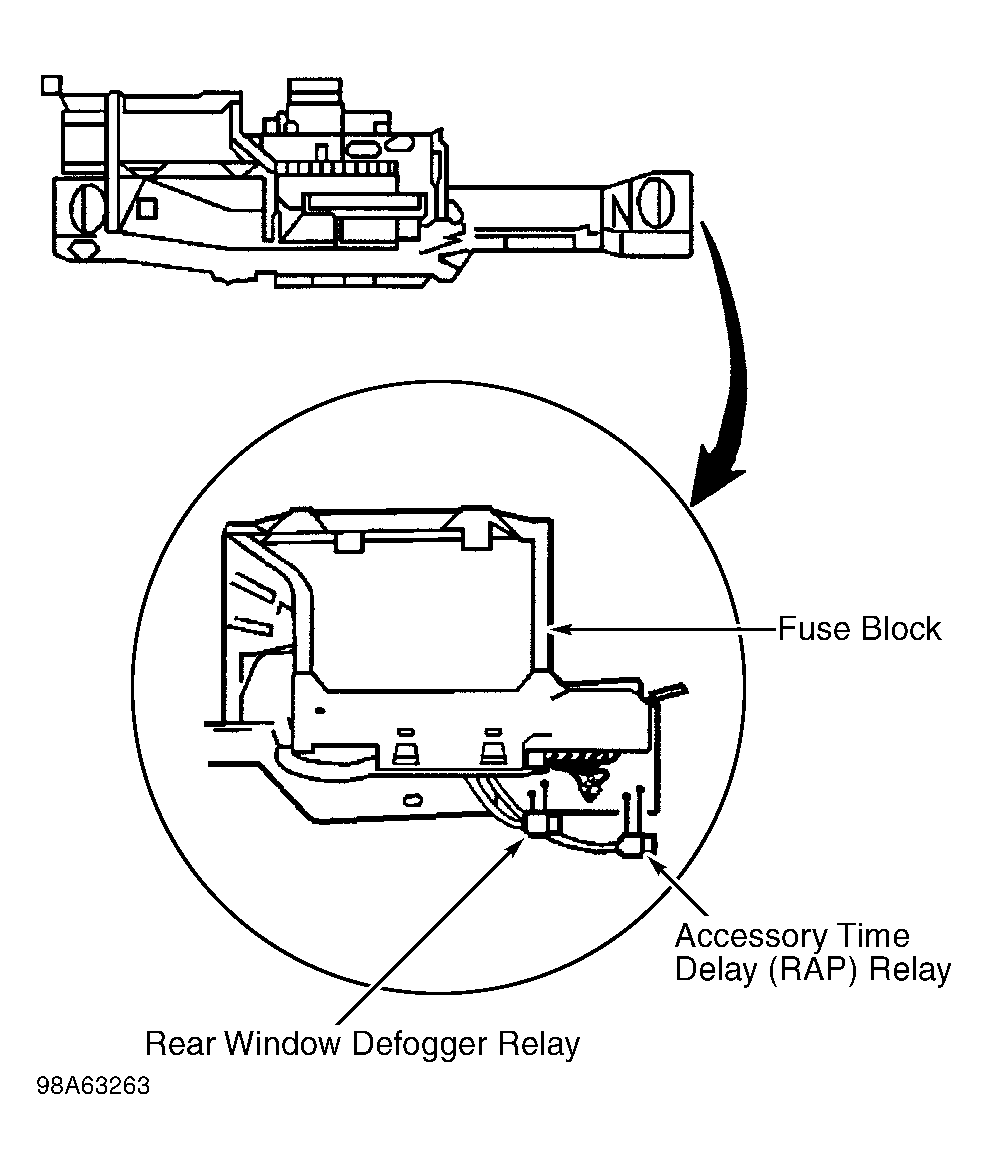

Fig 12: Left Side Of Dash

Fig 13: Right Side Of Dash

Fig 14: Heater Case
