Control & Shift Solenoids: Installation

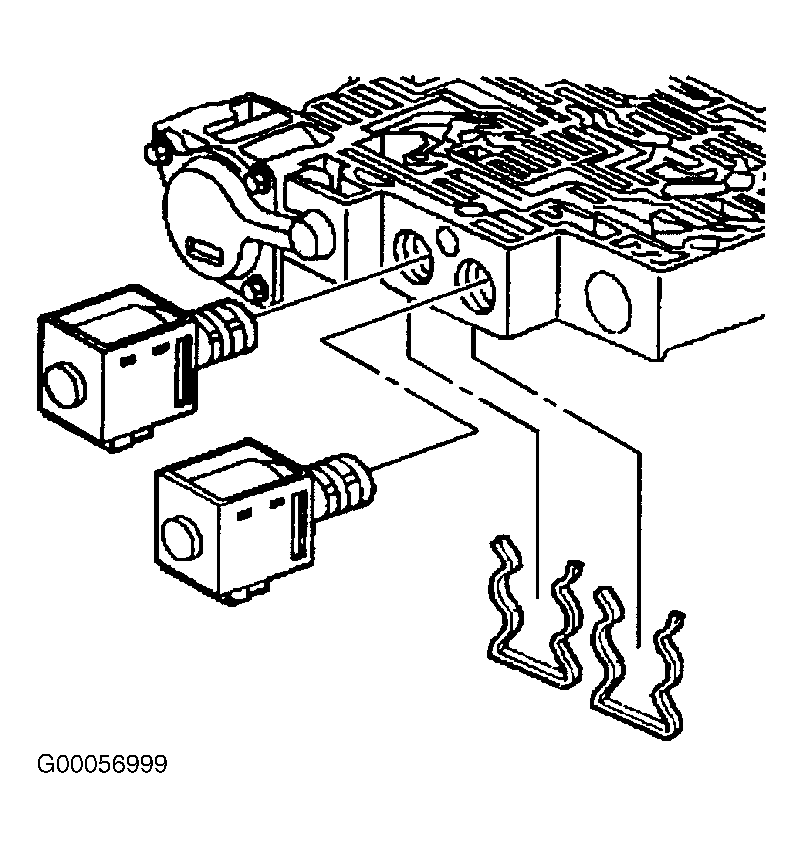

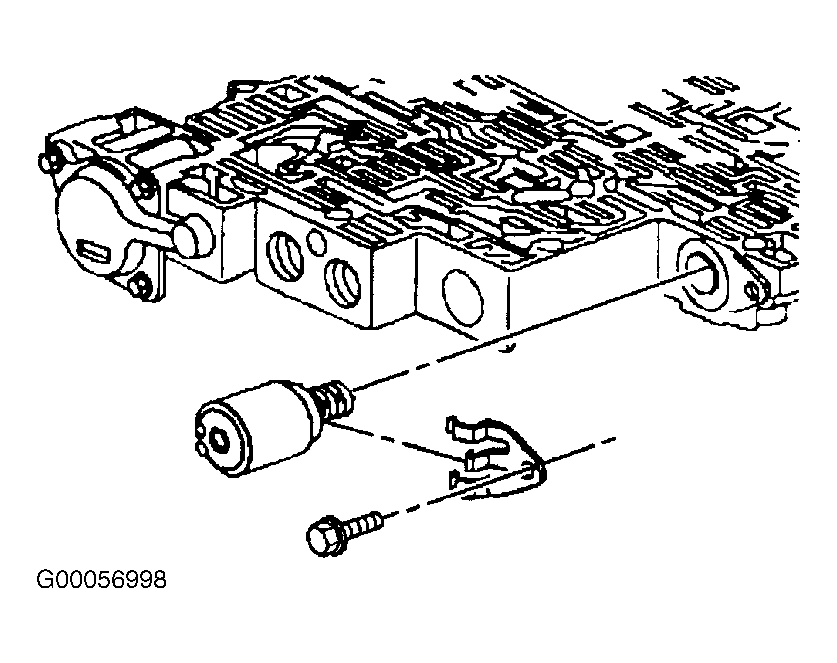

  1. Install the 3-2 control solenoid. Install the 3-2 control solenoid retainer. See Figure . Install the 1-2 and 2-3 shift solenoids. Install the 1-2 and 2-3 shift solenoid retainers. See Figure . Install the pressure control solenoid. Ensure that the electrical tabs are facing outboard. Install the pressure control solenoid retainer and retaining bolt. See Figure . Tighten the pressure control solenoid retaining bolt to specification. See TORQUE SPECIFICATIONS  .

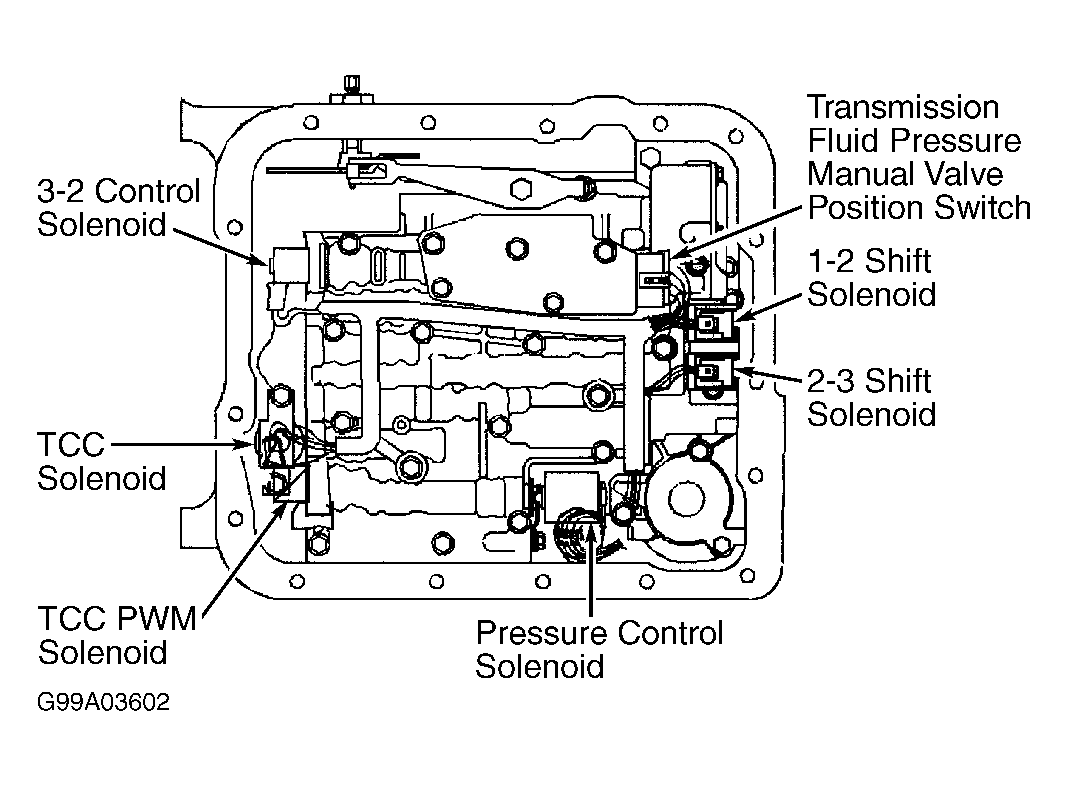

  2. Connect the internal wiring harness electrical connectors to the following components: transmission fluid pressure switch, 1-2 shift control solenoid, 2-3 shift control solenoid, pressure control solenoid, TCC PWM solenoid and 3-2 control solenoid. See Figure . Install the 1-2 accumulator. See ACCUMULATOR ASSEMBLY, SPACER PLATE & GASKETS  .
  3. Install the transmission oil pan and filter. See DRAINING & REFILLING  under LUBRICATION. Fill the transmission to the proper level with appropriate fluid. See LUBRICATION  .
