Remote Keyless Entry System Check

To perform a RKE system check, refer to Fig 1 .

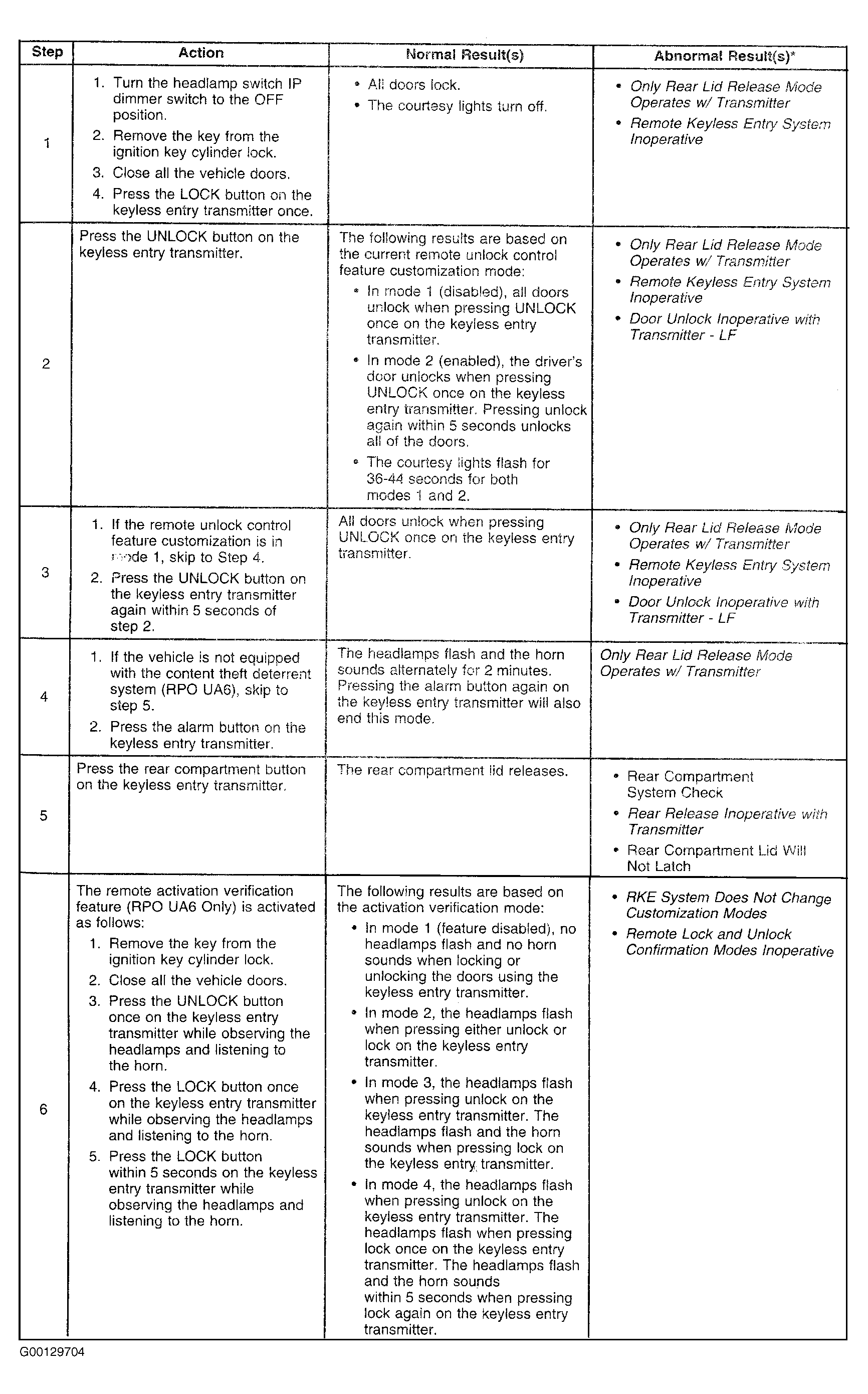

Fig 1: Remote Keyless Entry System Check

Courtesy of GENERAL MOTORS CORP.

NOTE: If any system check is abnormal, see SYSTEM TESTS for diagnostic procedures.
