Test E: Remote Keyless Entry System Inoperative

To perform this test, refer to Fig 1 , Fig 2 and Fig 3 .

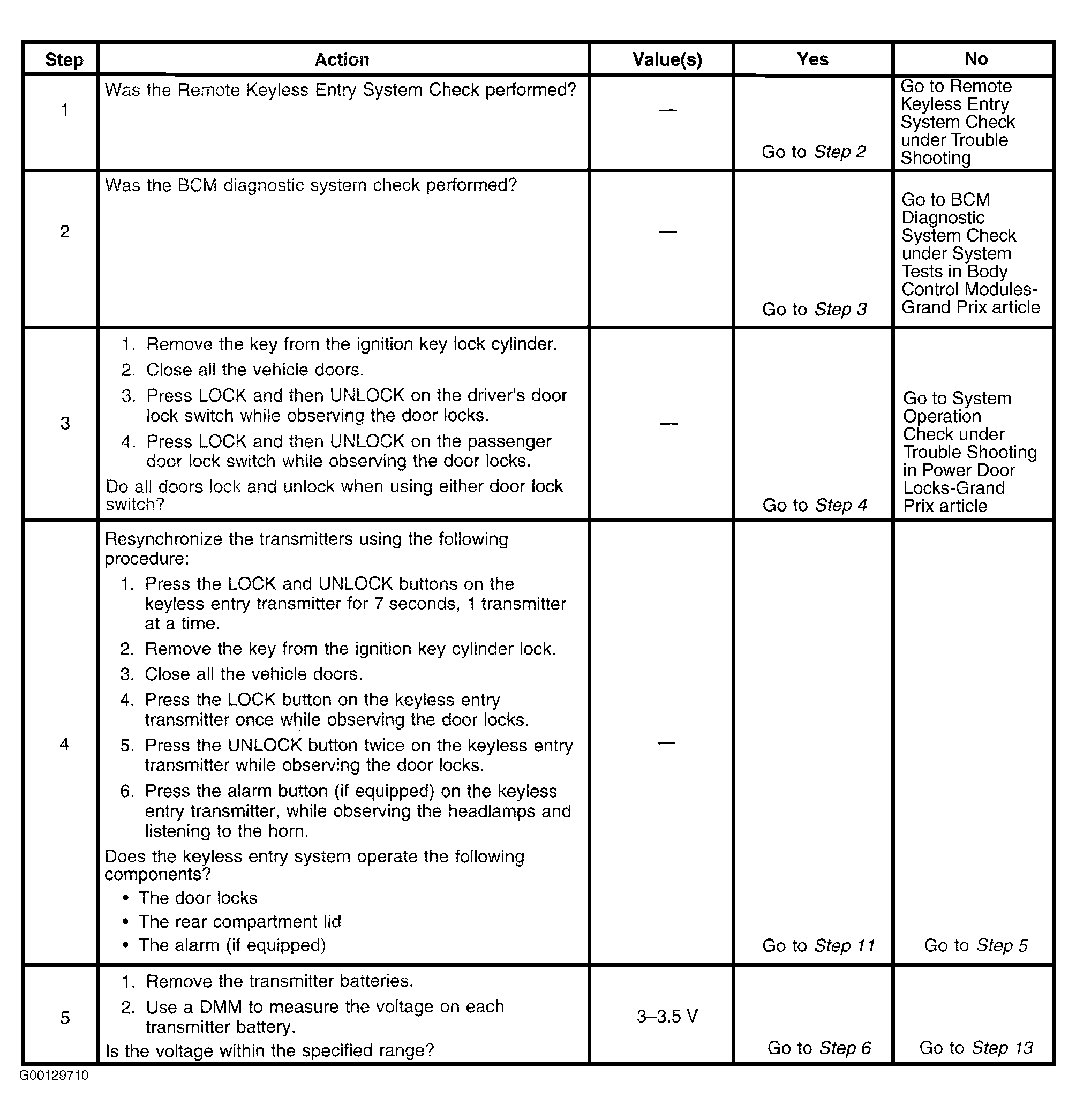

Fig 1: Test E: Remote Keyless Entry System Inoperative (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

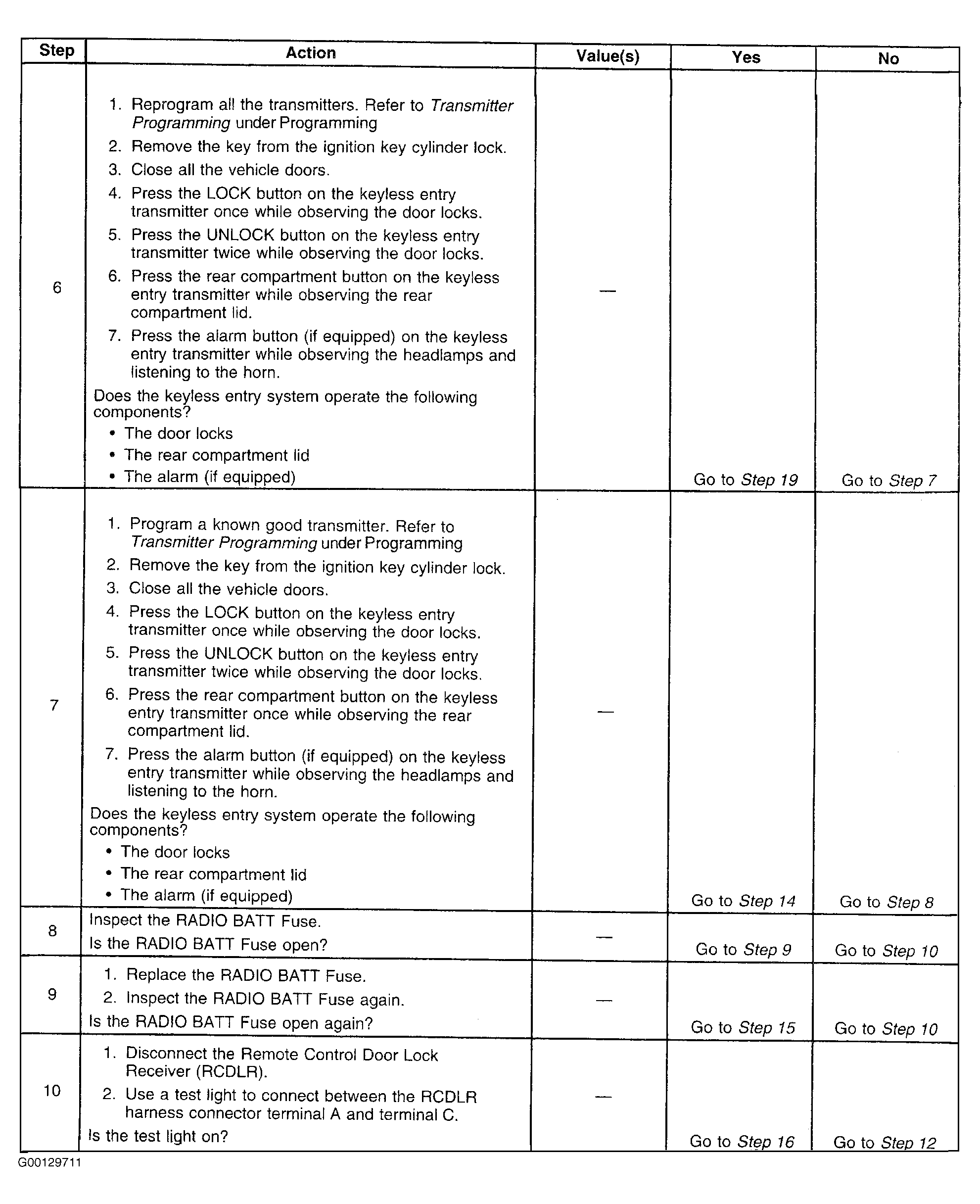

Fig 2: Test E: Remote Keyless Entry System Inoperative (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

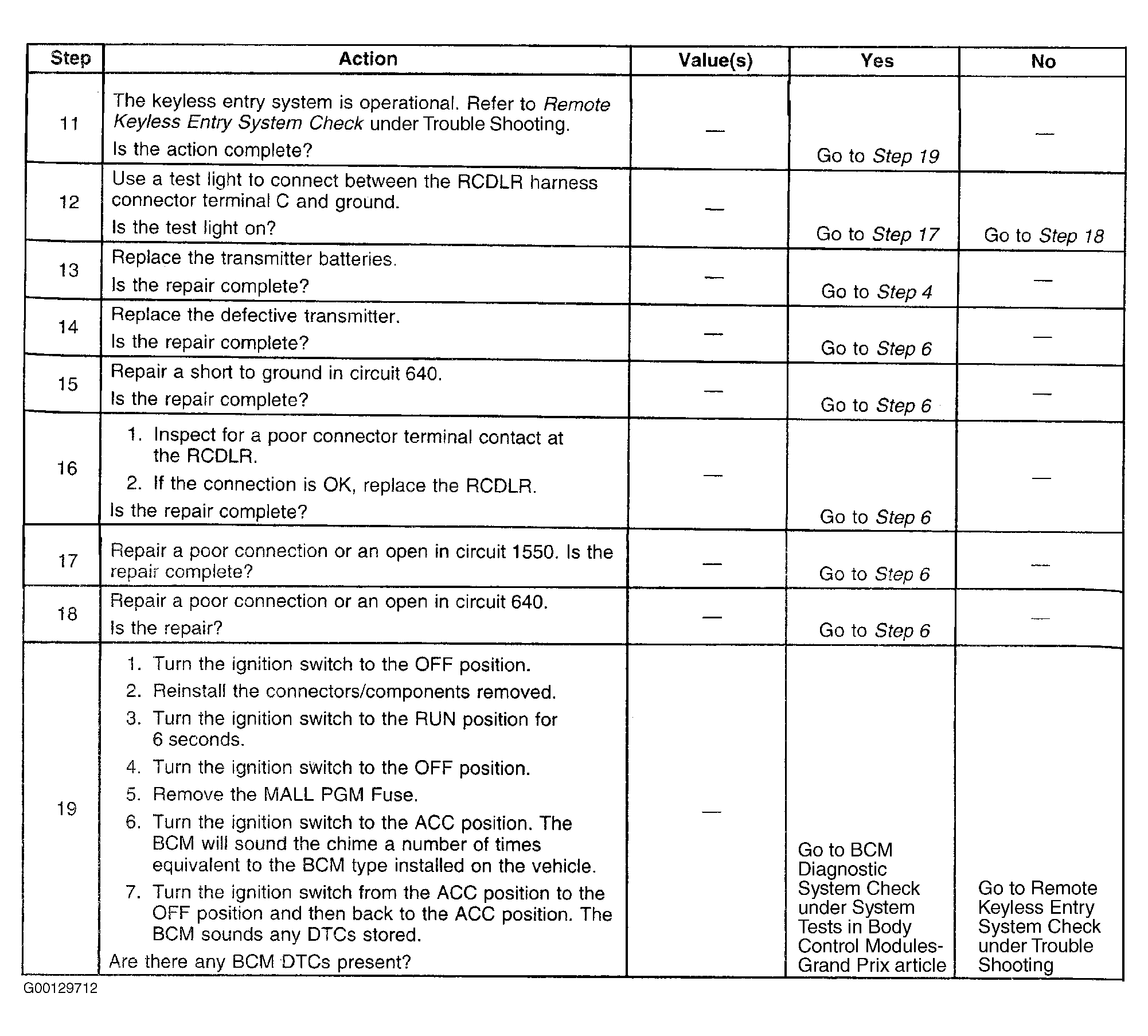

Fig 3: Test E: Remote Keyless Entry System Inoperative (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
