Component Locations

COMPONENT LOCATIONS

Component Location
Body Control Module Below Left Side Of Instrument Panel, Left Of Steering Column. See Fig 1 .
Instrument Panel Fuse Block Behind Far Right Side Of Instrument Panel. See Fig 4 .
Rear Trunk Lid Release Relay Below Left Side Of Instrument Panel, Near BCM. See Fig 1 .
Remote Control Door Lock Receiver (RCDLR) Behind Left Side Of Instrument Panel, Behind Driver Information Center. See Fig 2
Theft Deterrent Relay Below Left Side Of Instrument Panel, Near BCM. See Fig 1 .
Underhood Accessory Wiring Junction Block Right Side Of Engine Compartment, Mounted To Strut Tower. See Fig 3
G200 Right Side Of Instrument Panel Cross Beam, Behind Fuse Block. See Fig 6
P100 Lower Right Side Of Dash Panel.
S202 Instrument Panel Harness, Behind Center Of Instrument Panel, Approximately 7 In. (17 cm) From Data Link Connector Breakout.
S211 Instrument Panel Harness, Behind Center Of Instrument Panel, Approximately 4 In. (11 cm) From Data Link Connector.
S285 Instrument Panel Wiring Harness, On Right Side Of Steering Column, Approximately 5 In. (14 cm) From Data Link Connector Breakout.

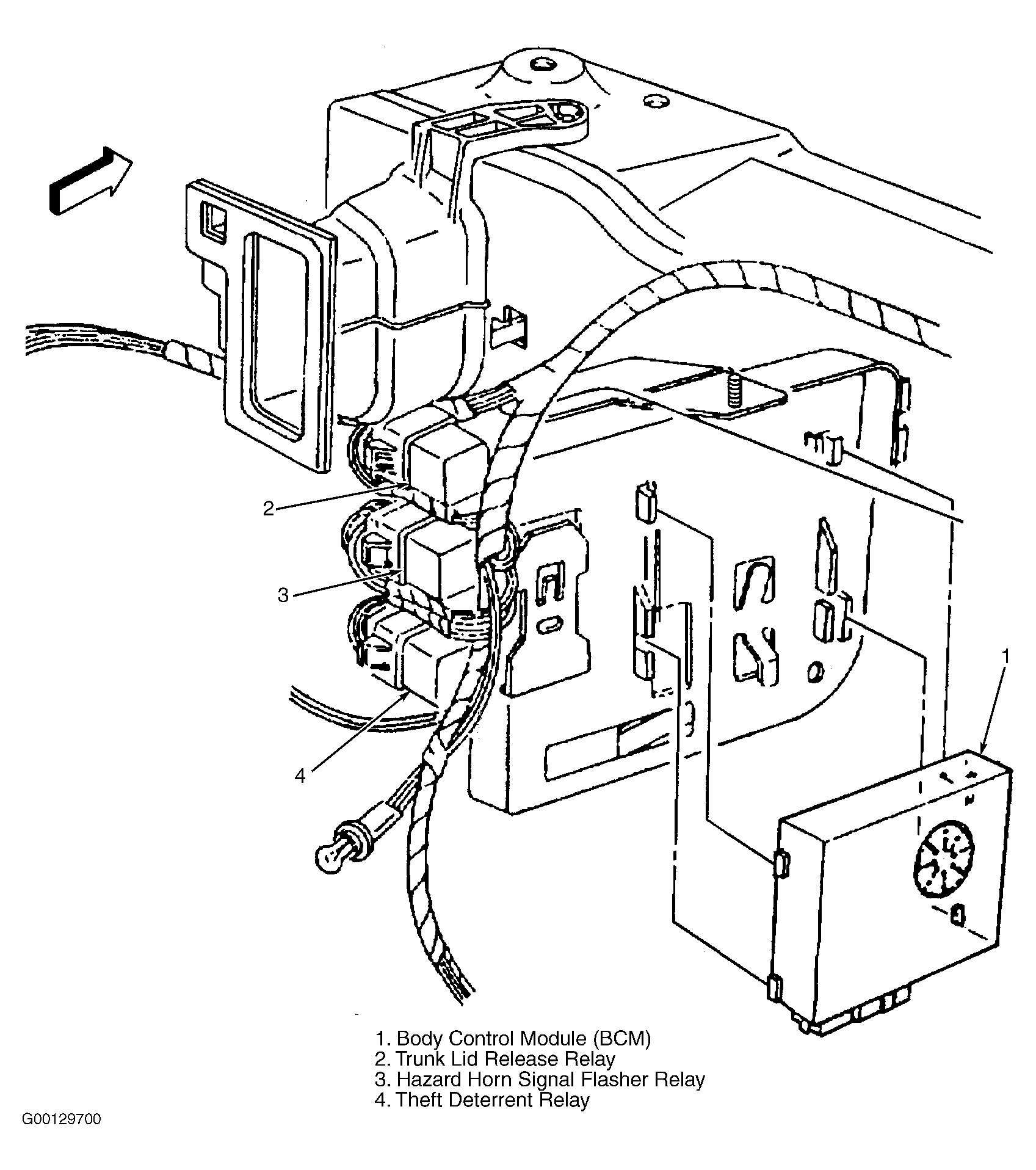

Fig 1: Locating Body Control Module, Rear Trunk Lid Release Relay & Theft Deterrent Relay
G00129700Courtesy of GENERAL MOTORS CORP.

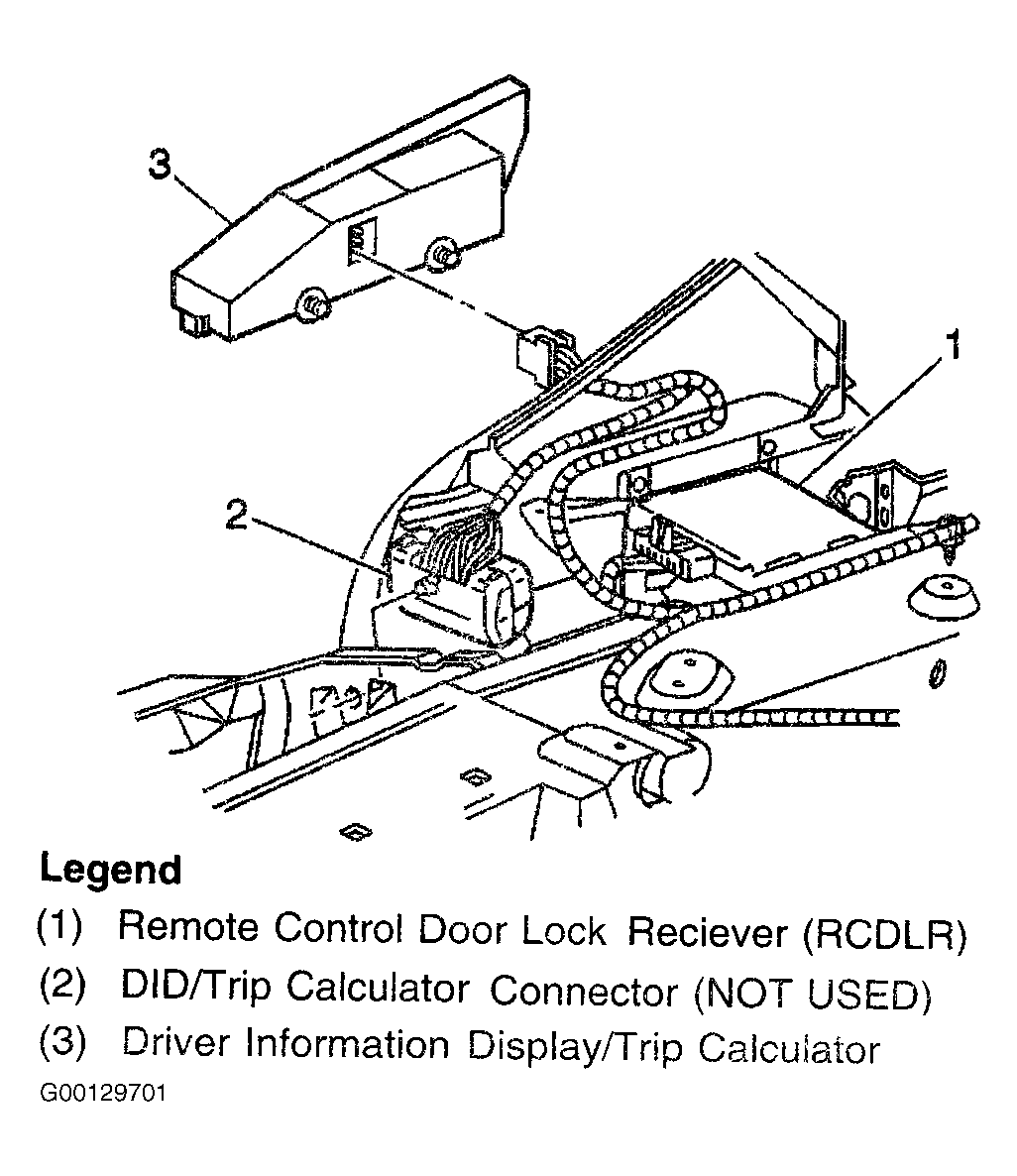

Fig 2: Locating Remote Control Door Lock Receiver
G00129701Courtesy of GENERAL MOTORS CORP.

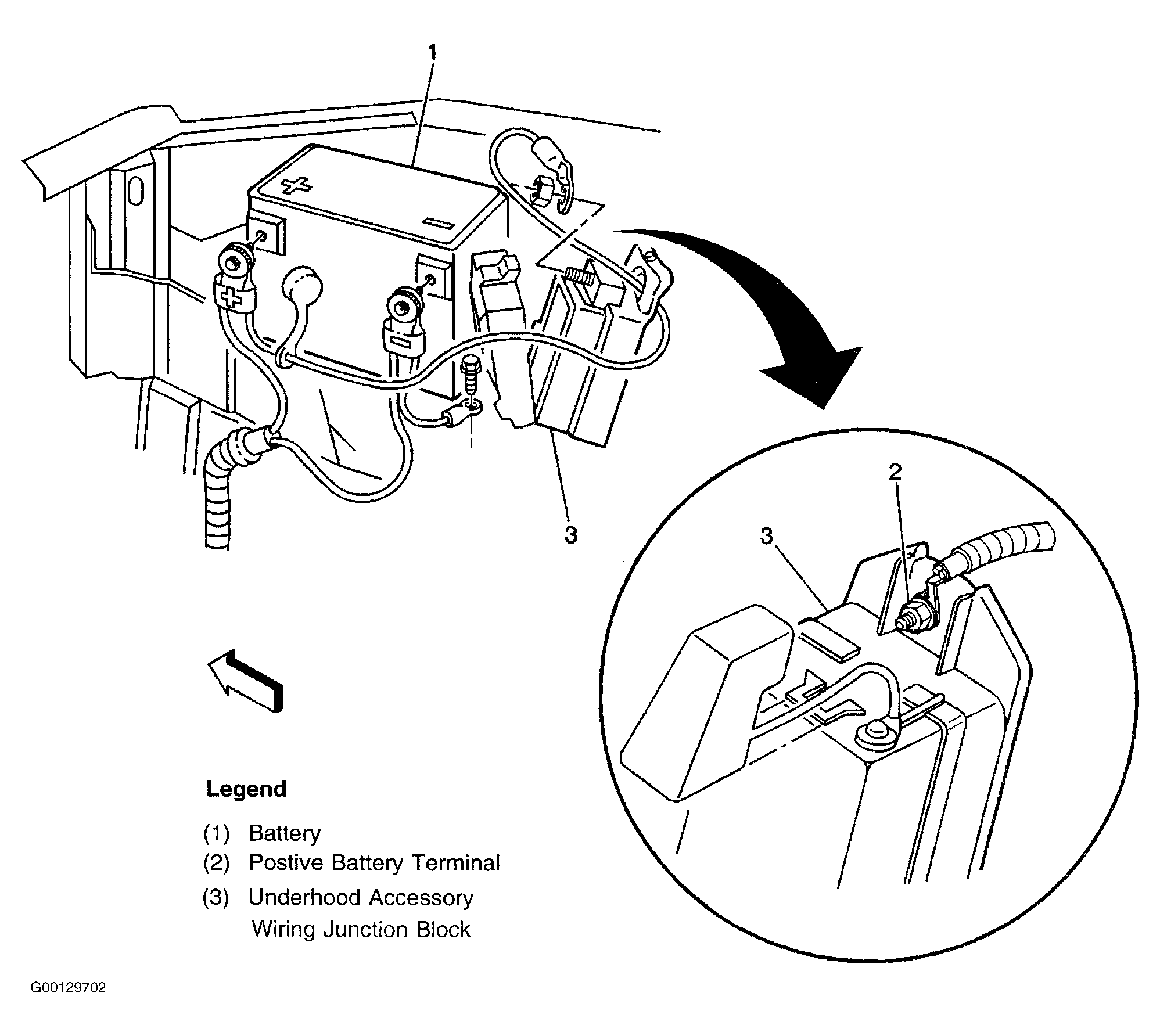

Fig 3: Locating Underhood Accessory Wiring Junction Block
G00129702Courtesy of GENERAL MOTORS CORP.

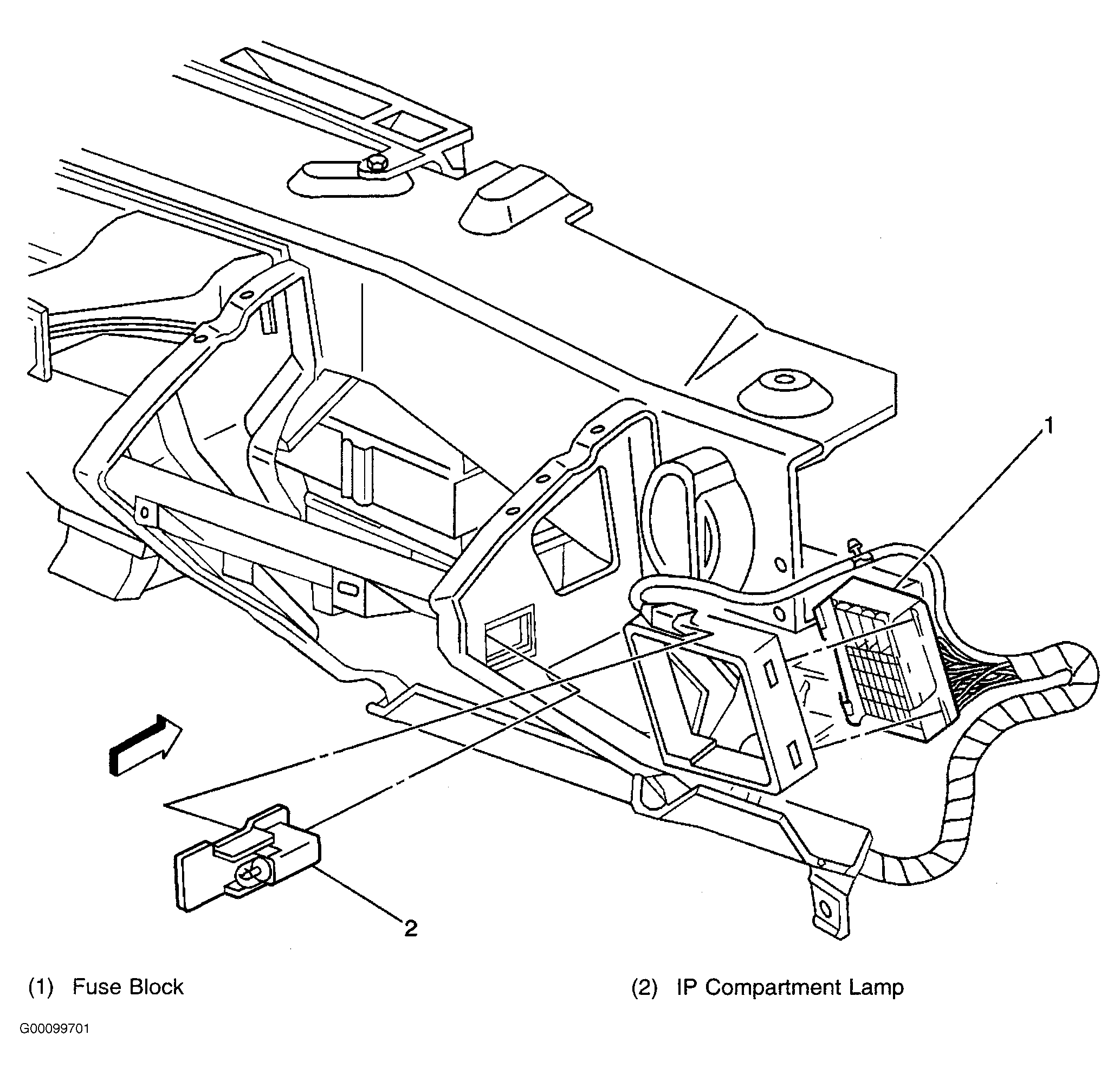

Fig 4: Locating Instrument Panel Fuse Block
G00099701Courtesy of GENERAL MOTORS CORP.

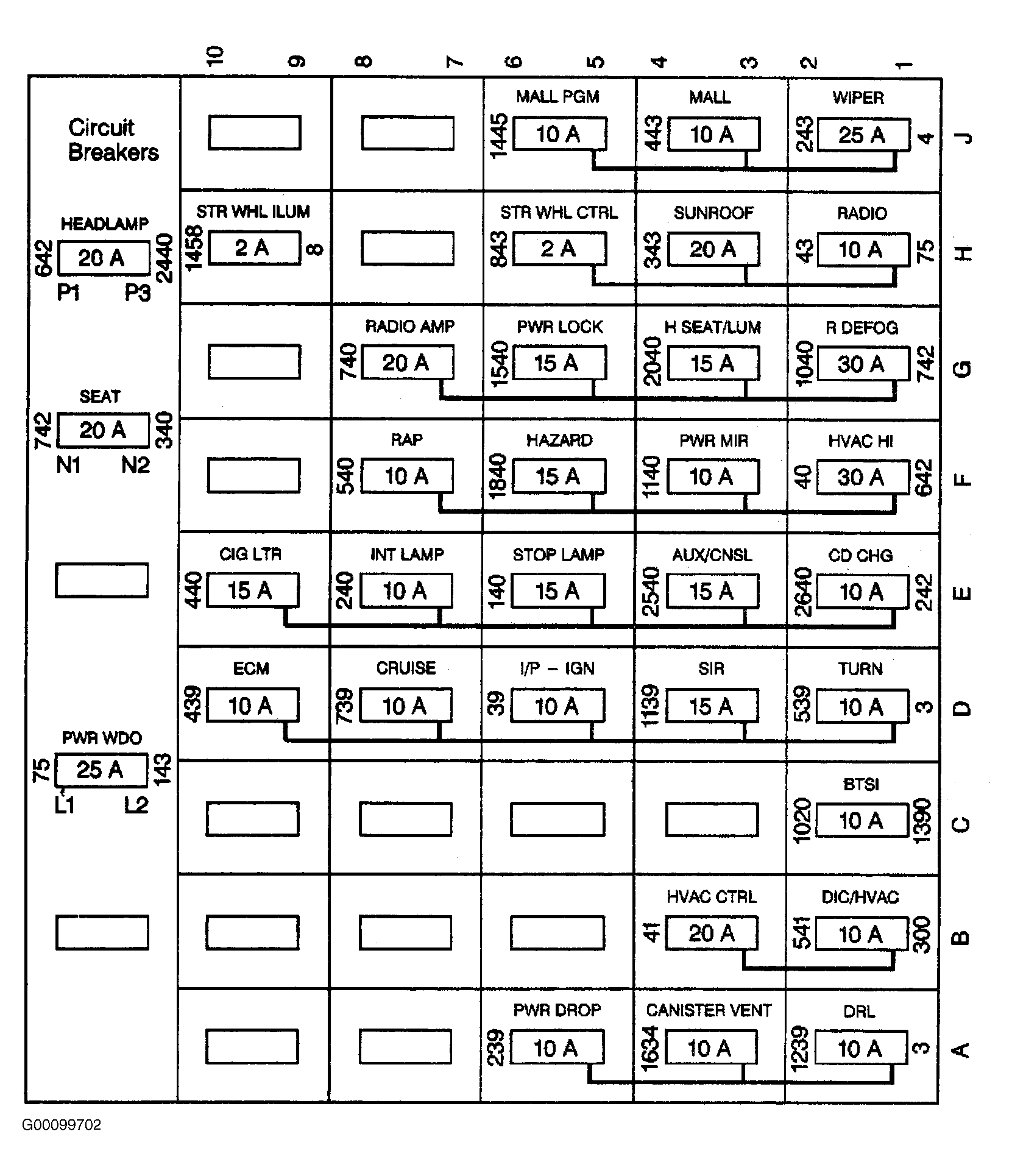

Fig 5: Identifying Instrument Panel Fuse Block Components
G00099702Courtesy of GENERAL MOTORS CORP.

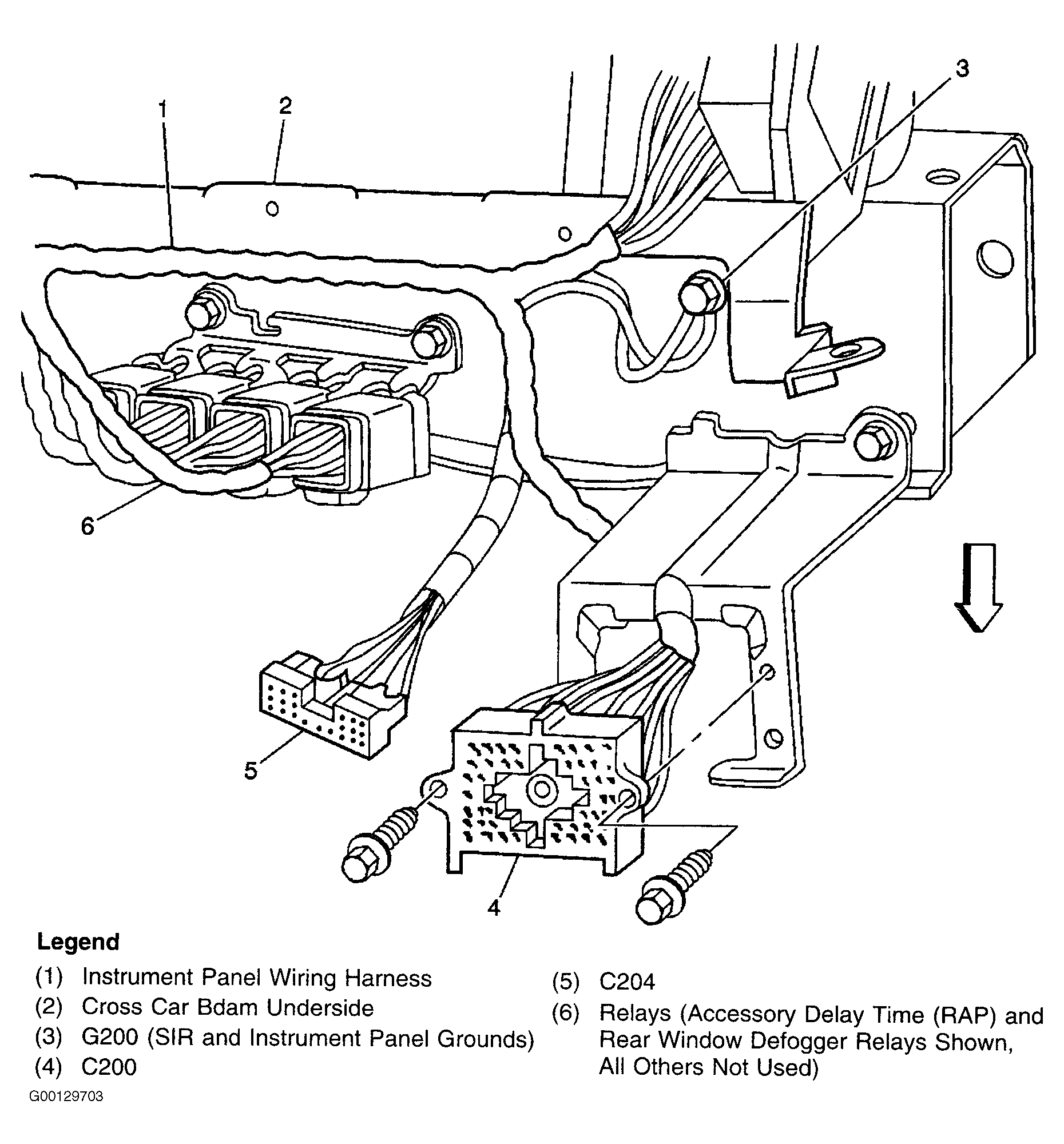

Fig 6: Locating Ground G200
G00129703Courtesy of GENERAL MOTORS CORP.
