Test D: Lock Function Inoperative (One Switch Only)

For test procedure, refer to illustration. See Fig 1 .

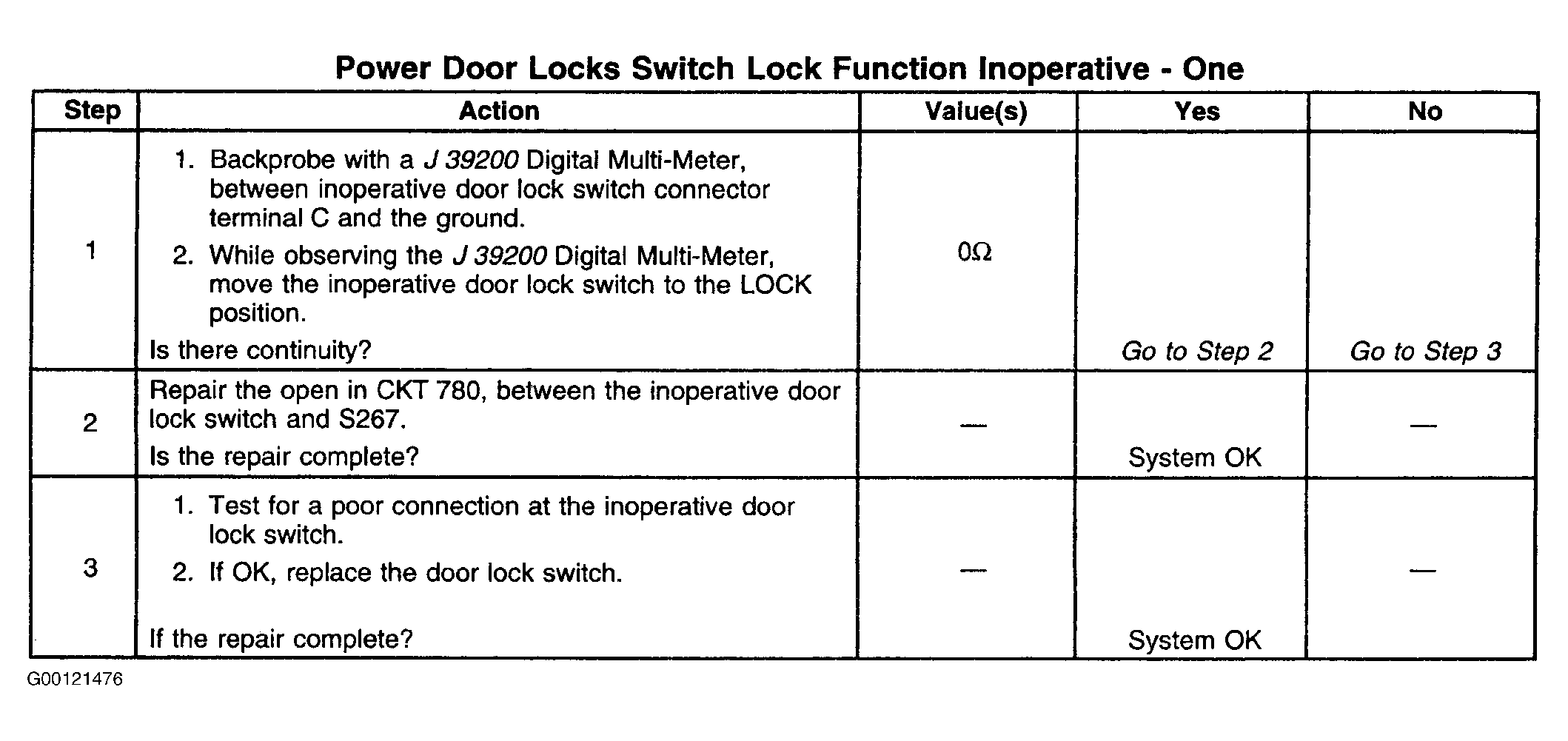

Fig 1: Test D: Lock Function Inoperative (One Switch Only)
G00121476Courtesy of GENERAL MOTORS CORP.
