Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location
Circuit Breakers In fuse block.
Fuse Block Behind right side of dash, in right door opening. See Figure .
Fusible Links Left side of engine, on starter assembly.

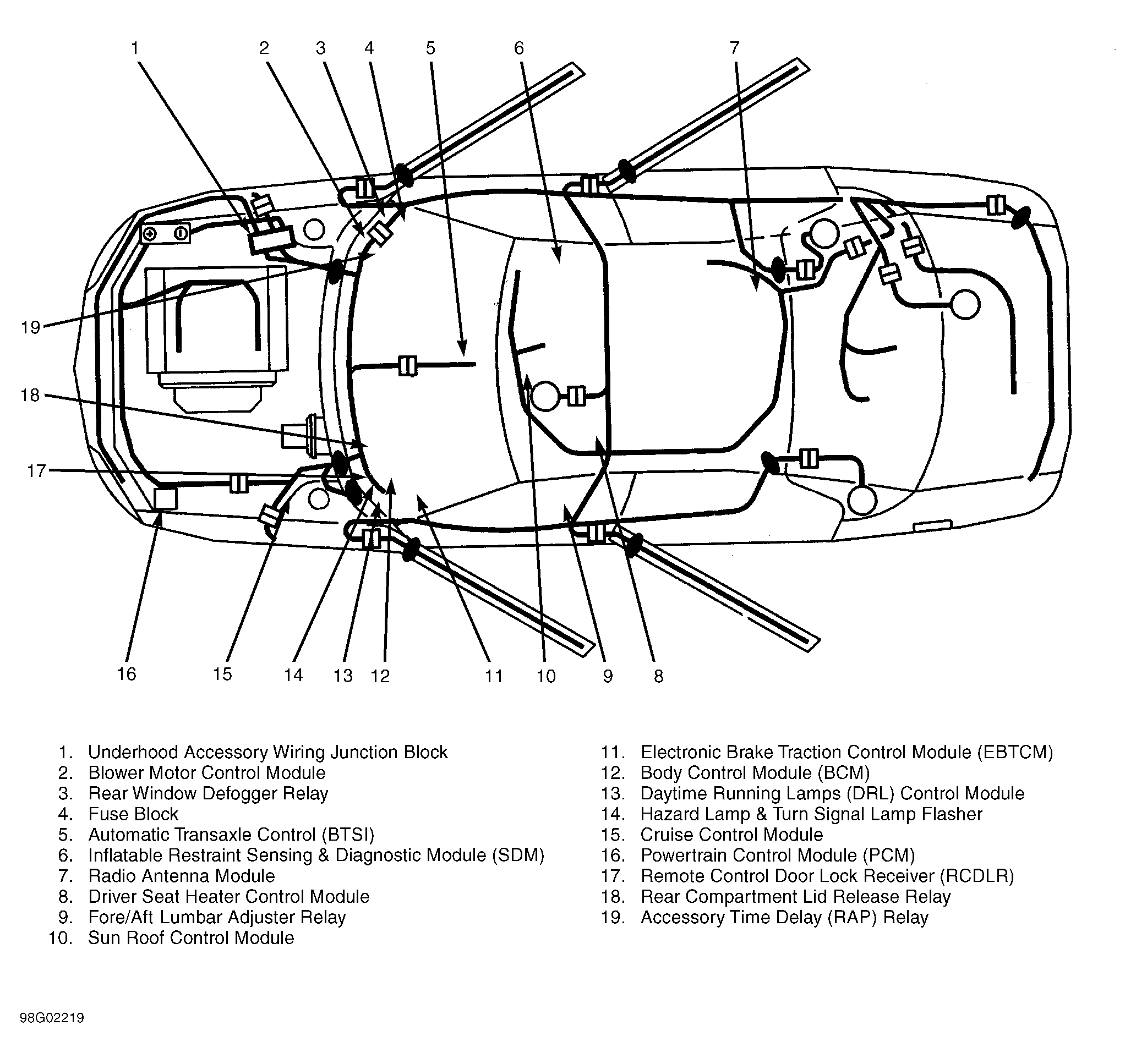

Underhood Accessory Wiring Junction Block Mounted to right strut tower. See Figure .
