Heater - A/C & Rear Defogger Control Assembly C1, C2 & C3

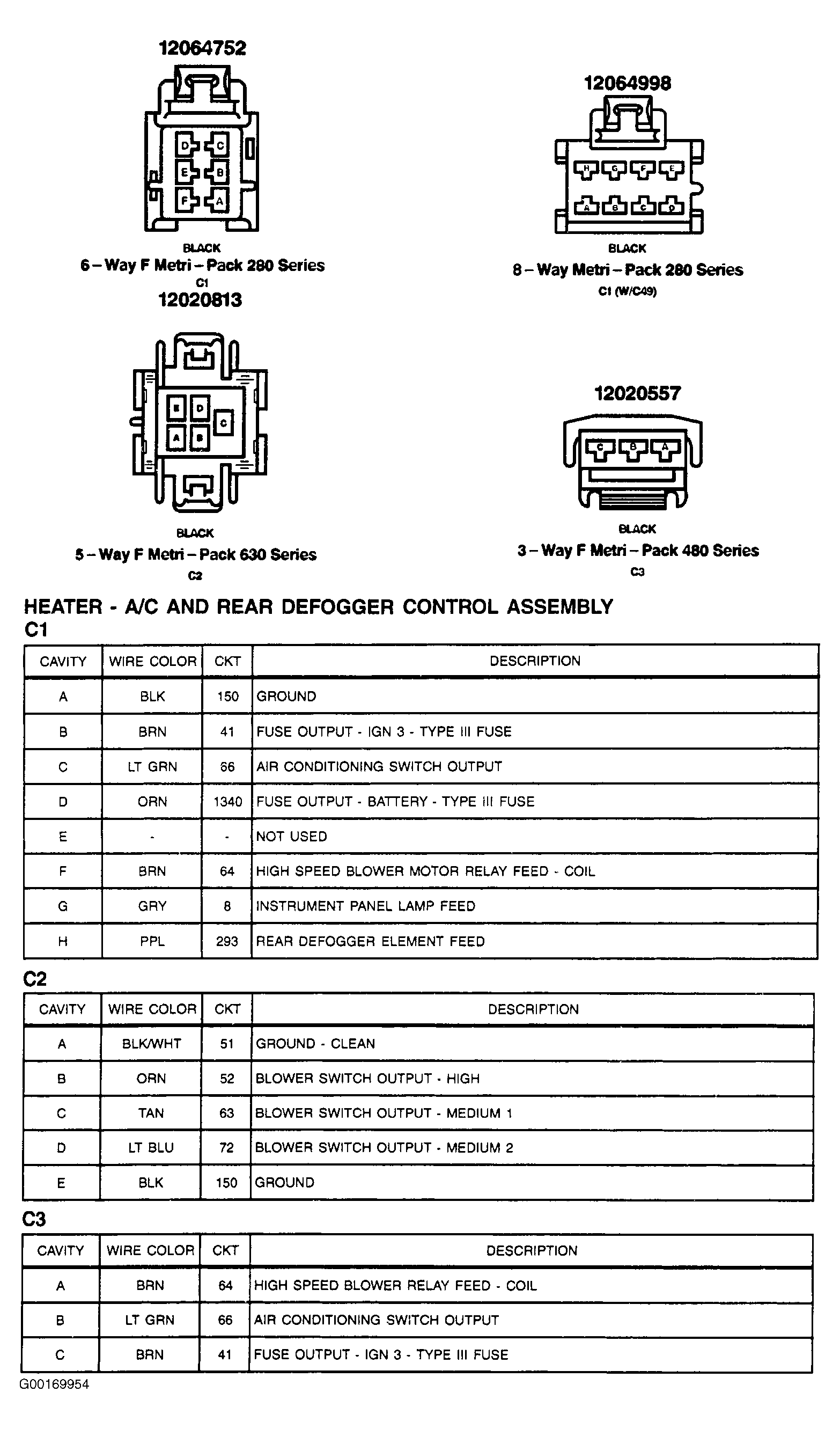

Fig 1: Heater - A/C & Rear Defogger Control Assembly - 8-Pin/6-Pin Connector (Black), 5-Pin Connector (Black) & 3-Pin Connector (Black)
G00169954Courtesy of GENERAL MOTORS CORP.
