Headlamp Switch Assembly (Turn/Hazard)

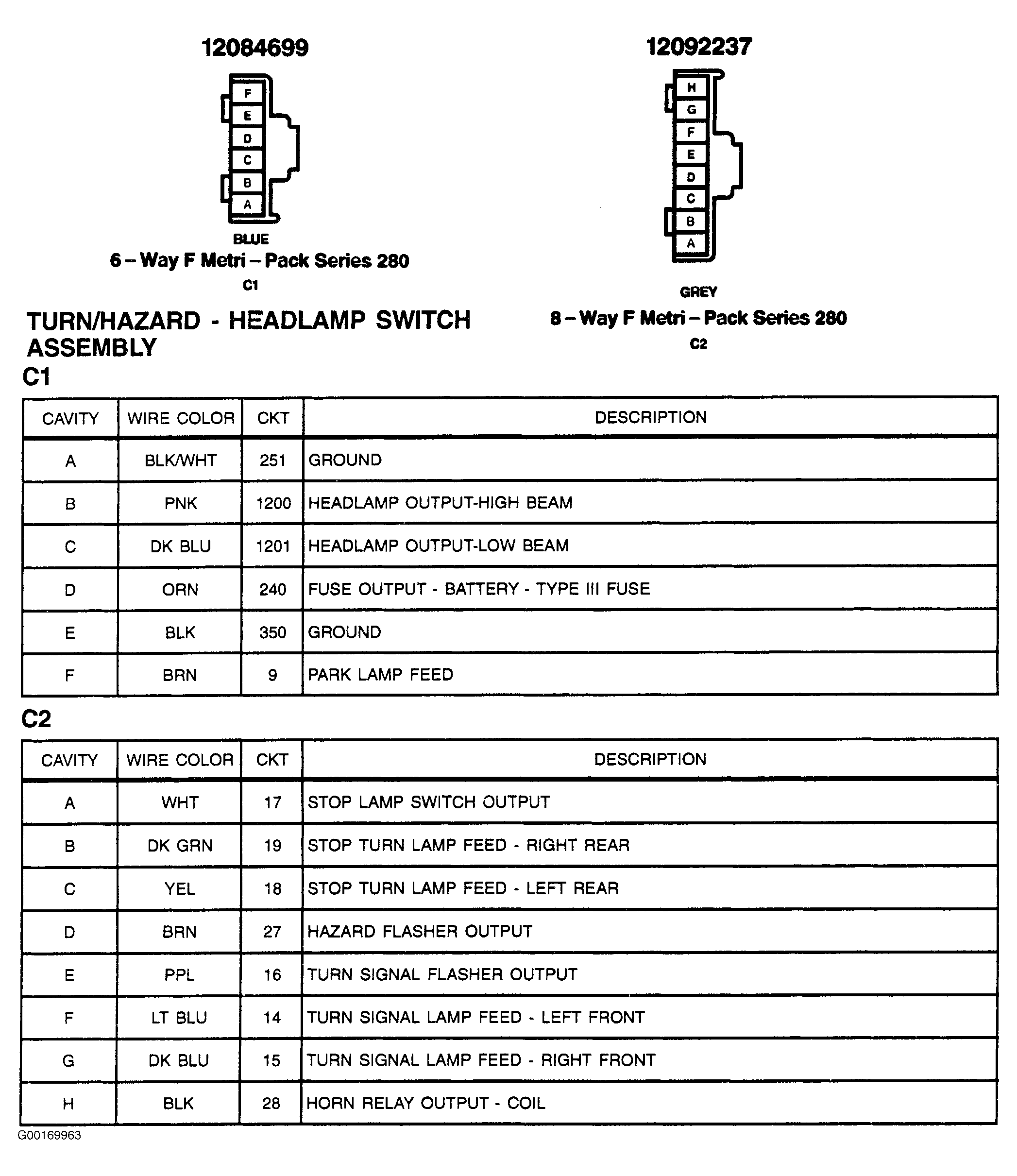

Fig 1: Headlamp Switch Assembly (Turn/Hazard) - 6-Pin Connector (Blue) & 8-Pin Connector (Gray)

G00169963

Courtesy of GENERAL MOTORS CORP.
