PCM Connector C1

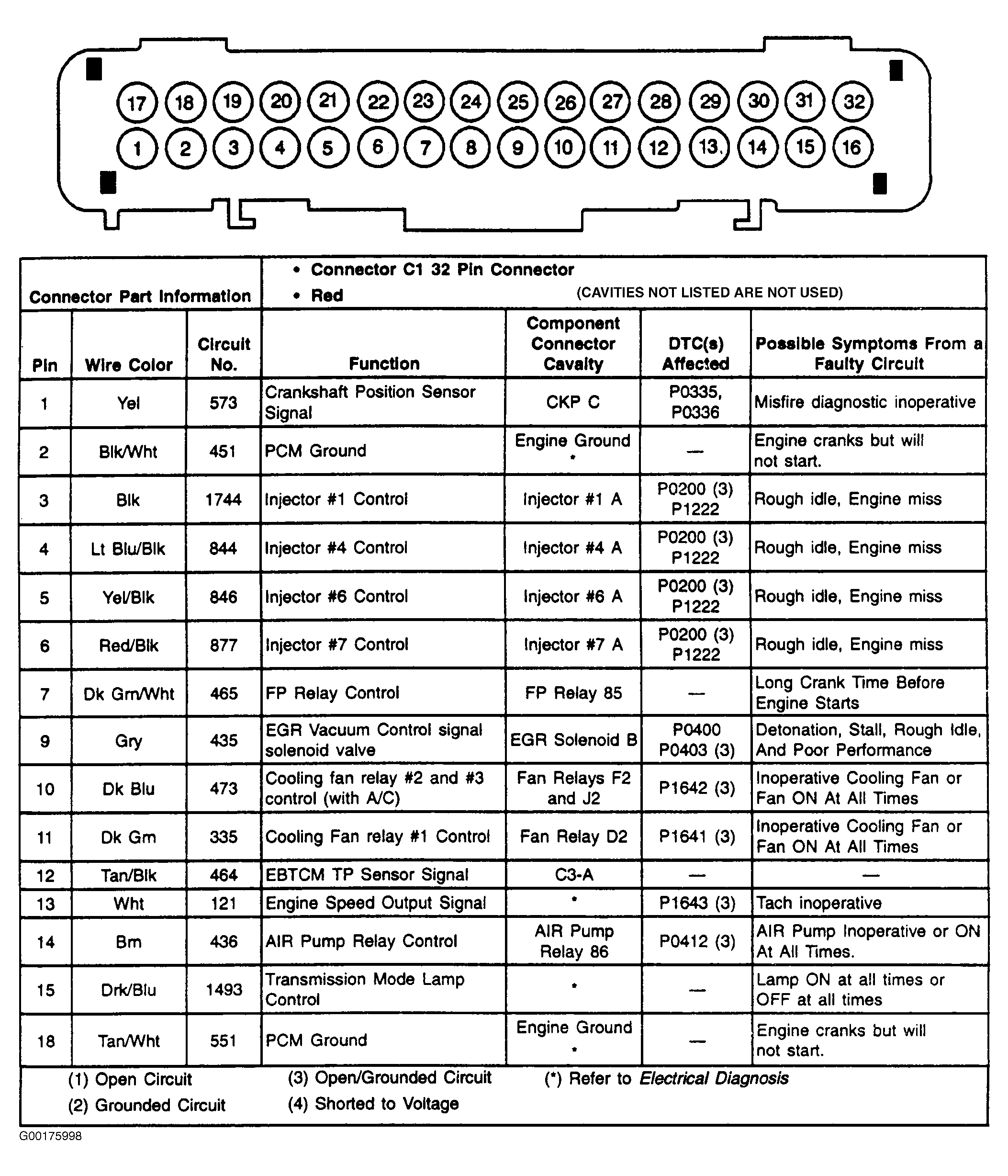

Fig 1: PCM C1 32-Pin Connector (Red) - Terminal Identification & Legend (1 Of 2)
G00175998Courtesy of GENERAL MOTORS CORP.

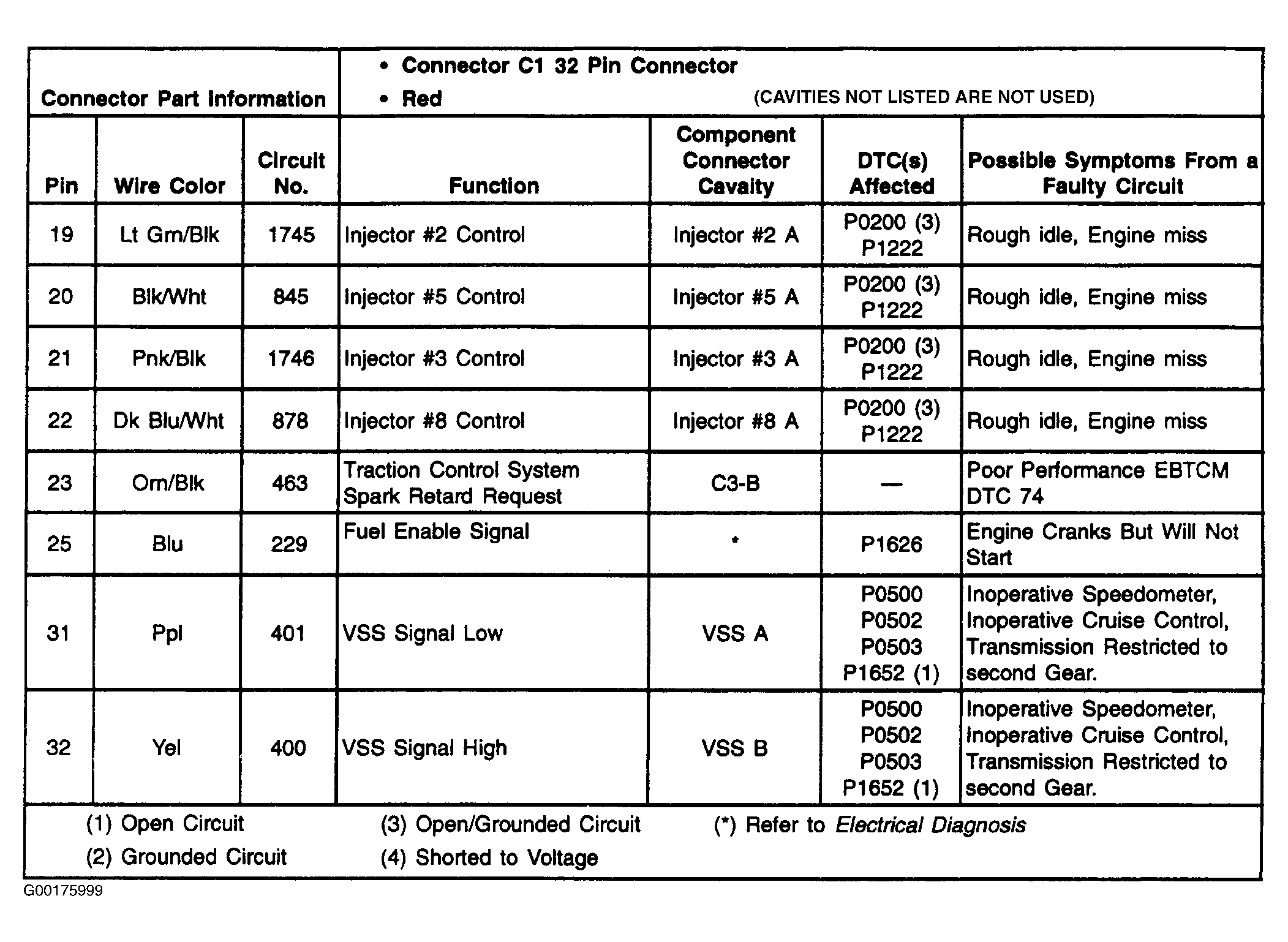

Fig 2: PCM C1 32-Pin Connector (Red) - Legend (2 Of 2)
G00175999Courtesy of GENERAL MOTORS CORP.
