Removal & Installation

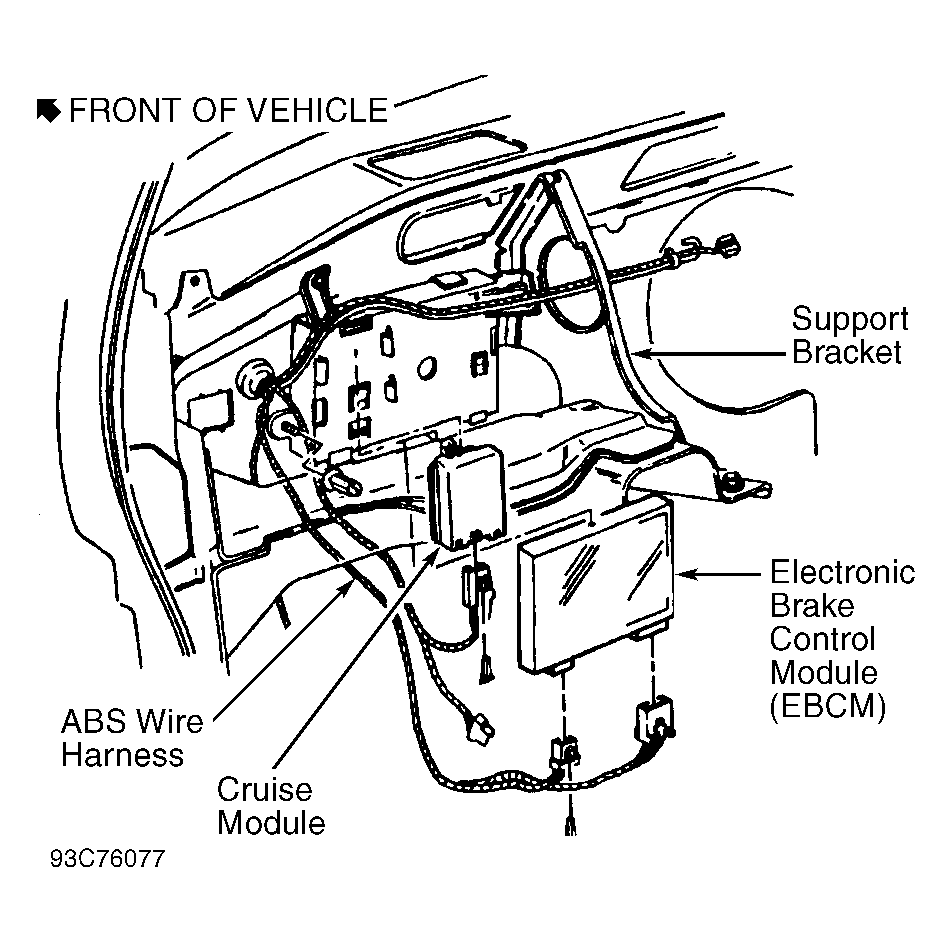

Ensure ignition is off. Remove lower sound insulator panel located under steering column. Release pressure tabs attaching EBCM to dash panel support bracket. Remove electrical connectors from EBCM. Remove EBCM from vehicle. SeeFig 1 . To install, reverse removal procedure.
